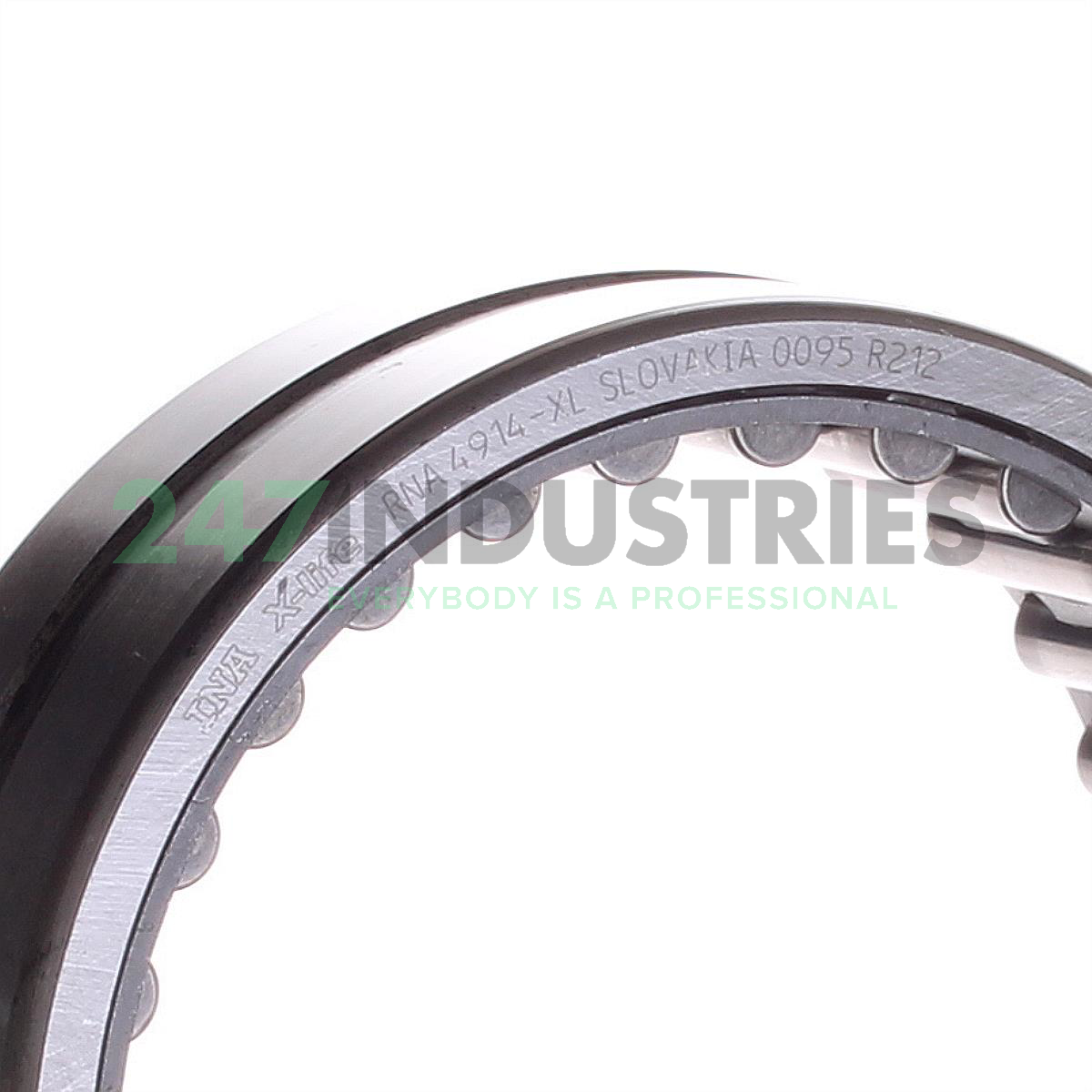

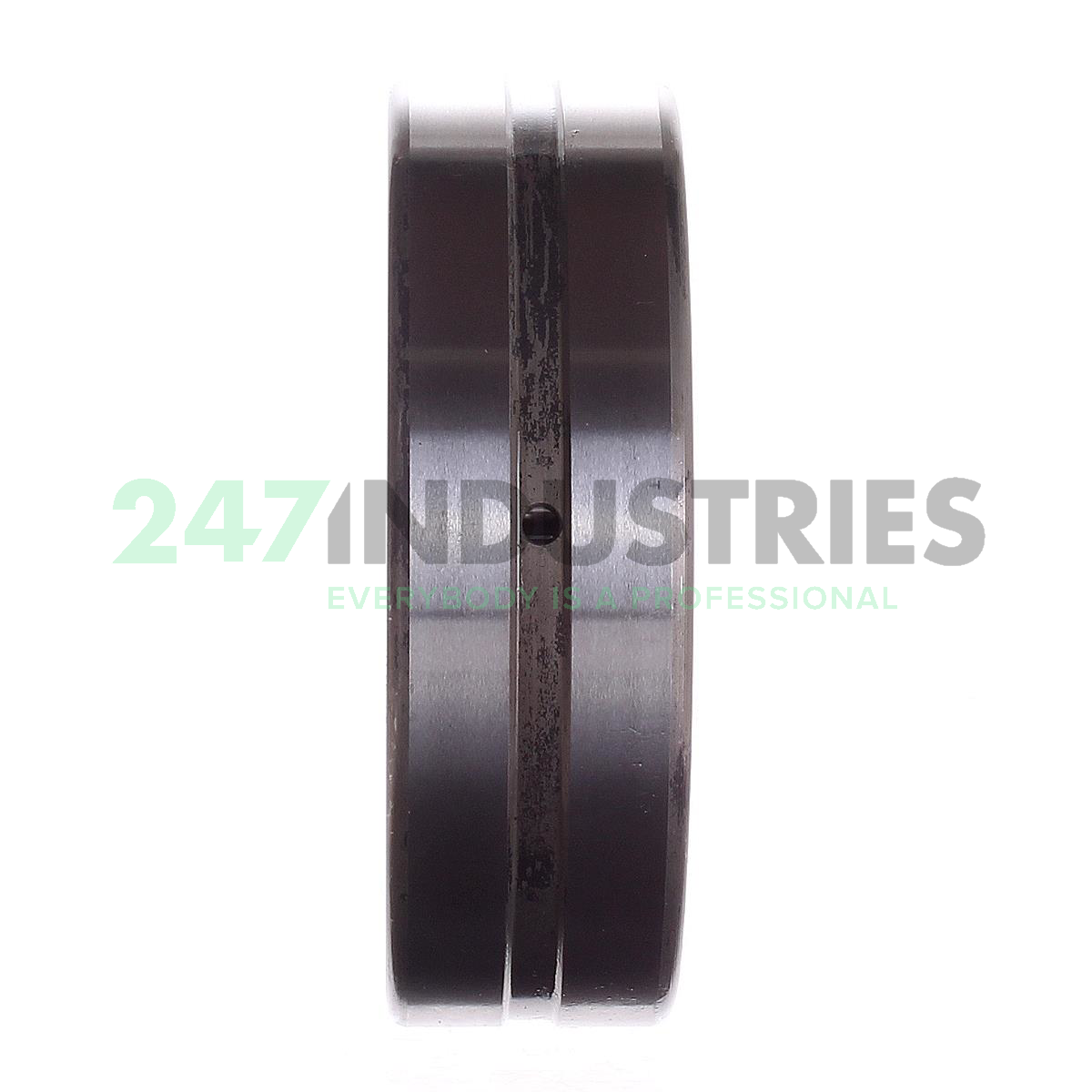

RNA4914-XL INA

All dimensions

1. Inner (d) MM 80
2. Outer (D) MM 100
3. Width (B) MM 30
4. Inner (d) Inch 3.1496
5. Outer (D) Inch 3.937
6. Width (B) Inch 1.1811
7. Under roller diameter (F w) mm 80
8. Width (b) mm 30

Suffix description

1. XL X-Life

Technical details

1. Availability 21 pcs
2. Brand INA
3. Item number RNA4914-XL INA
4. Also known as 0506664790000
   RNA4914

5. EAN 4012802436518
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.5048

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 156000
2. Radial Dynamic Load Rating Cr (N) 95000
3. Limiting speed (n G) 5700
4. Limiting speed for grease lubrication (n G Grease) 3400
5. Reference speed (n ϑr) 3400
6. ECLASS number 23-05-09-07
7. ECLASS2 number 23-05-09-07
8. Medias description Radial roller bearing RNA..-XL
