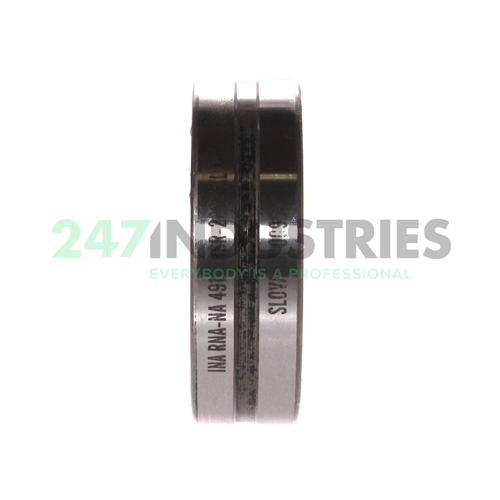

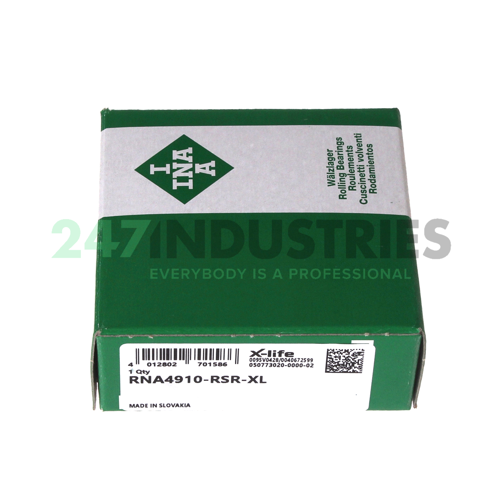

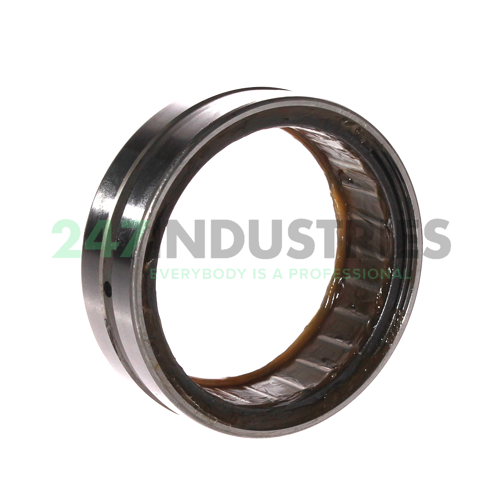

RNA4910-RSR-XL INA

All dimensions

1. Inner (d) MM 58
2. Outer (D) MM 72
3. Width (B) MM 22
4. Inner (d) Inch 2.2835
5. Outer (D) Inch 2.8346
6. Width (B) Inch 0.8661
7. Under roller diameter (F w) mm 58

Suffix description

1. RSR One Seal, Buna-N Rubber, Radial Type
2. XL X-Life

Technical details

1. Availability 189 pcs
2. Brand INA
3. Item number RNA4910-RSR-XL INA
4. Also known as 0507730200000
   RNA4910-RSR

5. EAN 4012802701586
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.16

Product Properties

1. Seal RS - Rubber Seal on One Side

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 64000
2. Radial Dynamic Load Rating Cr (N) 45000
3. Limiting speed (n G) 4600
4. Limiting speed for grease lubrication (n G Grease) 4650
5. ECLASS number 23-05-09-07
6. ECLASS2 number 23-05-09-07
7. Medias description Needle roller bearings RNA49..-RSR, dimension series 49, lip seal on one side
