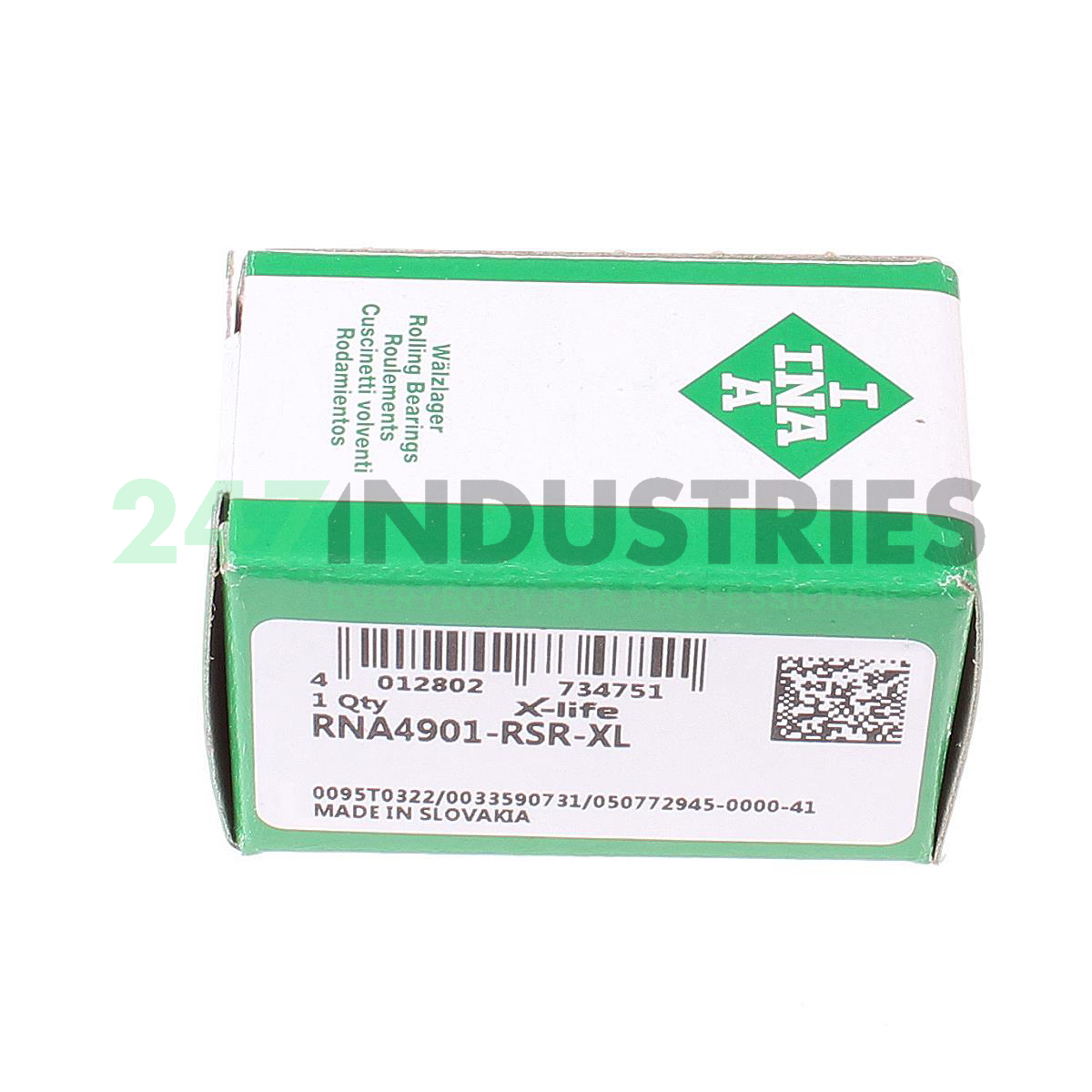

RNA4901-RSR-XL INA

All dimensions

1. Inner (d) MM 16
2. Outer (D) MM 24
3. Width (B) MM 13
4. Inner (d) Inch 0.6299
5. Outer (D) Inch 0.9449
6. Width (B) Inch 0.5118
7. Under roller diameter (F w) mm 16

Suffix description

1. RSR One Seal, Buna-N Rubber, Radial Type
2. XL X-Life

Technical details

1. Availability 0 pcs
2. Brand INA
3. Item number RNA4901-RSR-XL INA
4. Also known as 0507729450000
   RNA4901-RSR

5. EAN 4012802734751
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.021

Product Properties

1. Seal RS - Rubber Seal on One Side

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 8300
2. Radial Dynamic Load Rating Cr (N) 8600
3. Limiting speed (n G) 13900
4. ECLASS number 23-05-09-07
5. ECLASS2 number 23-05-09-07
6. Medias description Needle roller bearings RNA49..-RSR, dimension series 49, lip seal on one side
