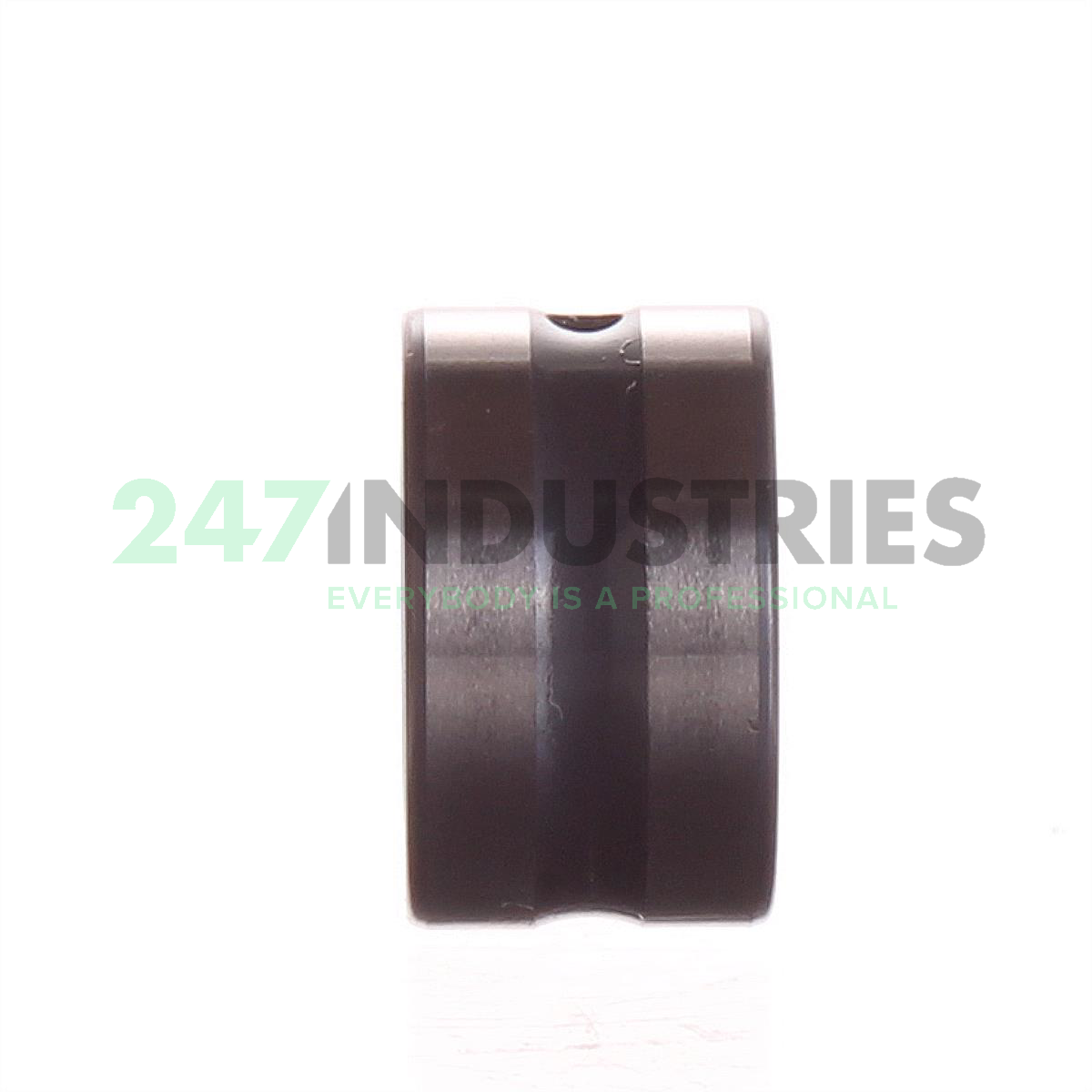

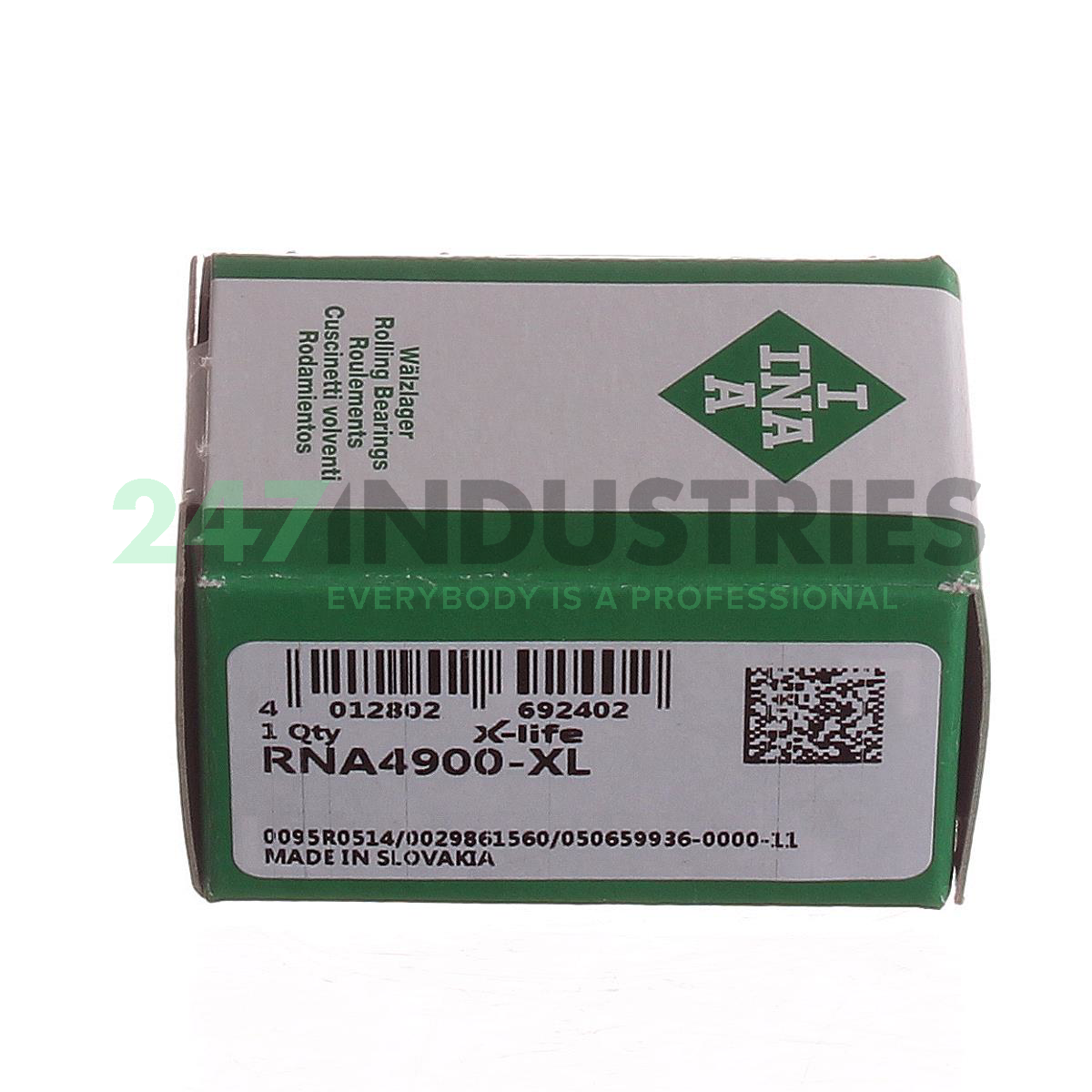

RNA4900-XL INA

All dimensions

1. Inner (d) MM 14
2. Outer (D) MM 22
3. Width (B) MM 13
4. Inner (d) Inch 0.5512
5. Outer (D) Inch 0.8661
6. Width (B) Inch 0.5118
7. Under roller diameter (F w) mm 14
8. Width (b) mm 13

Suffix description

1. XL X-Life

Technical details

1. Availability 240 pcs
2. Brand INA
3. Item number RNA4900-XL INA
4. Also known as 0506599360000
   RNA4900

5. EAN 4012802692402
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.016

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 9200
2. Radial Dynamic Load Rating Cr (N) 9600
3. Limiting speed (n G) 24600
4. Limiting speed for grease lubrication (n G Grease) 14800
5. Reference speed (n ϑr) 17800
6. ECLASS number 23-05-09-07
7. ECLASS2 number 23-05-09-07
8. Medias description Radial roller bearing RNA..-XL
