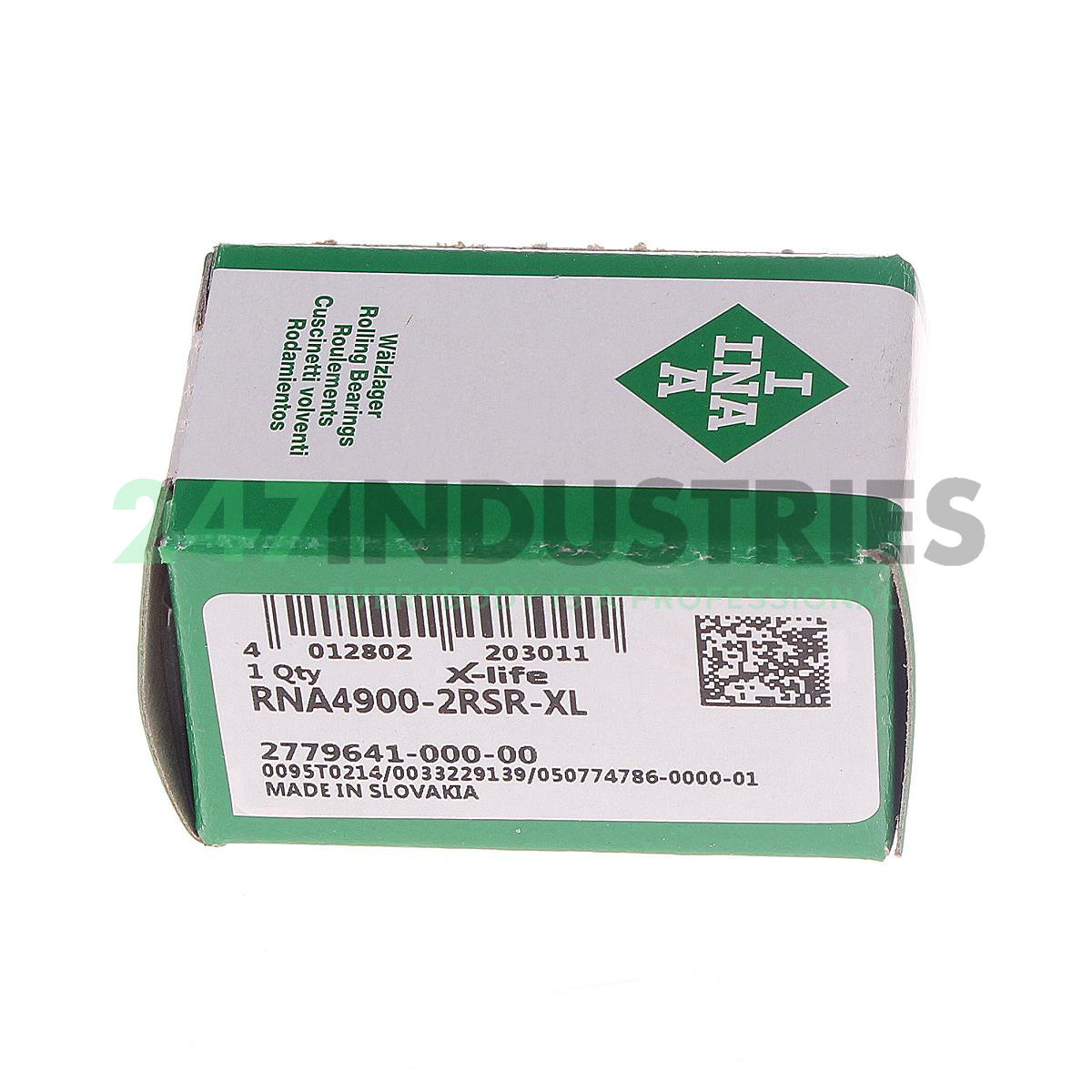

RNA4900-2RSR-XL INA

All dimensions

1. Inner (d) MM 14
2. Outer (D) MM 22
3. Width (B) MM 13
4. Inner (d) Inch 0.5512
5. Outer (D) Inch 0.8661
6. Width (B) Inch 0.5118
7. Under roller diameter (F w) mm 14
8. Width (b) mm 13

Suffix description

1. 2RSR Rubber Seals At Each Side Of The Bearing
2. XL X-Life

Technical details

1. Availability 153 pcs
2. Brand INA
3. Item number RNA4900-2RSR-XL INA
4. Also known as 0507747860000
   RNA4900-2RSR

5. EAN 4012802203011
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.016

Product Properties

1. Seal 2RS - Rubber Seal on Two Sides

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 6900
2. Radial Dynamic Load Rating Cr (N) 7700
3. Limiting speed (n G) 14800
4. Limiting speed for grease lubrication (n G Grease) 14800
5. ECLASS number 23-05-09-07
6. ECLASS2 number 23-05-09-07
7. Medias description Needle roller bearings RNA49..-2RSR, dimension series 49, lip seals on both sides
