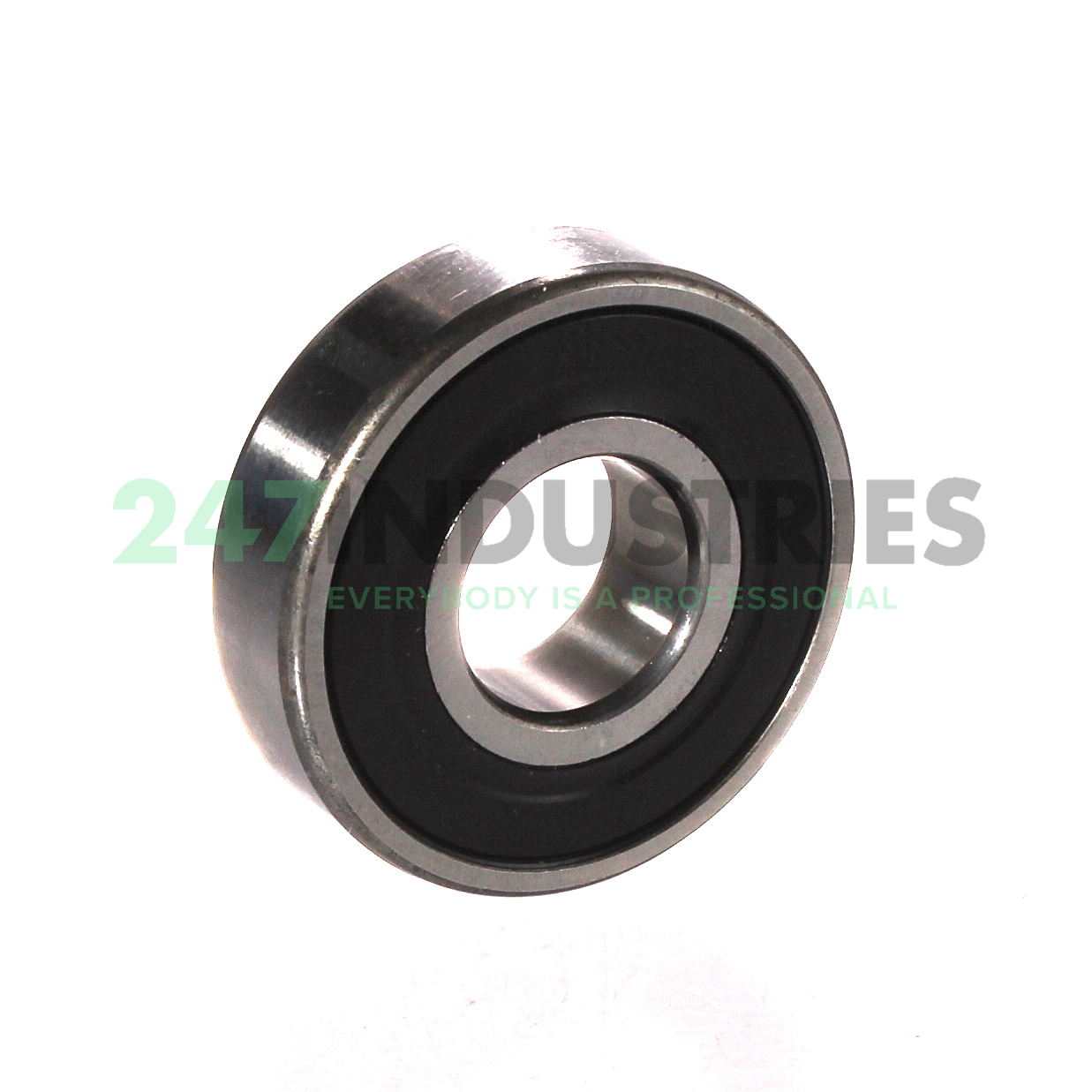

RLS5-2RS1 SKF

All dimensions

1. Inner (d) MM 15,88
2. Outer (D) MM 39,69
3. Width (B) MM 11,11
4. Inner (d) Inch 0.625
5. Outer (D) Inch 1.5625
6. Width (B) Inch 0.4375

Suffix description

1. 2RS1 Sheet Steel Reinforced Contact Seal Of Acrylonitrile-Butadiene Rubber (NBR) On Both Sides Of The Bearing

Technical details

1. Availability 0 pcs
2. Brand SKF
3. Item number RLS5-2RS1 SKF
4. Also known as LS7.2RS

5. EAN 7316577017598
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.062

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RS - Rubber Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
