RHEY40-TV-VA-HLA INA

€ 144,53 ex VAT
€ 174,88 in VAT
€ 174,88 in VAT
€ 144,53 ex VAT

Guaranteed same day shipment on orders placed before 18.00h (CET)
This product is available from stock
Worldwide shipping from the Netherlands
30 days return policy
Track your order through Track & Trace
iDeal, Mastercard, Visa, PayPal

RHEY40-TV-VA-HLA INA

Housing and Bearing (assembly)

Stock
1 pc in stock and ready for shipment
Brand INA
Article number RHEY40-TV-VA-HLA INA
Inside diameter 40mm
Product description

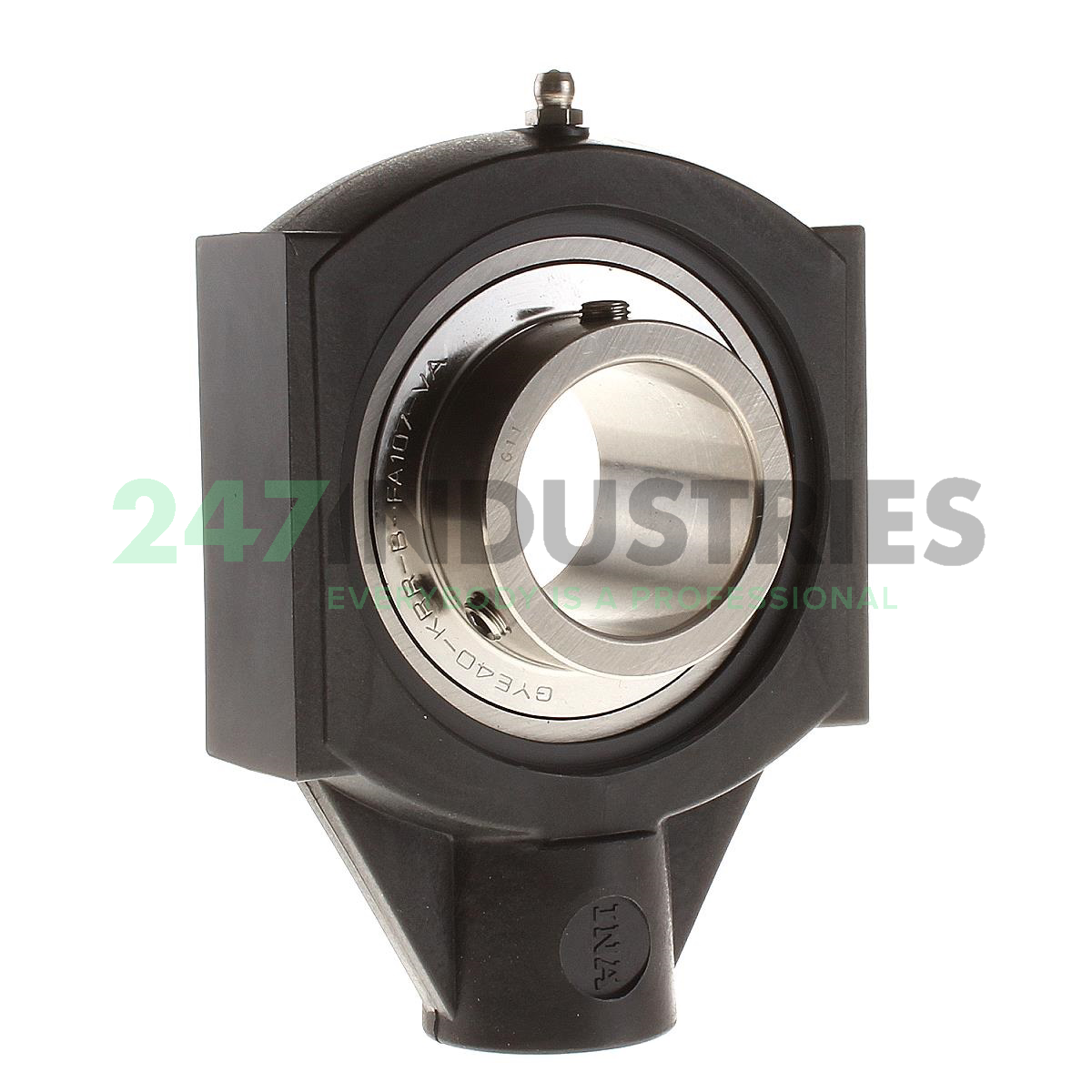

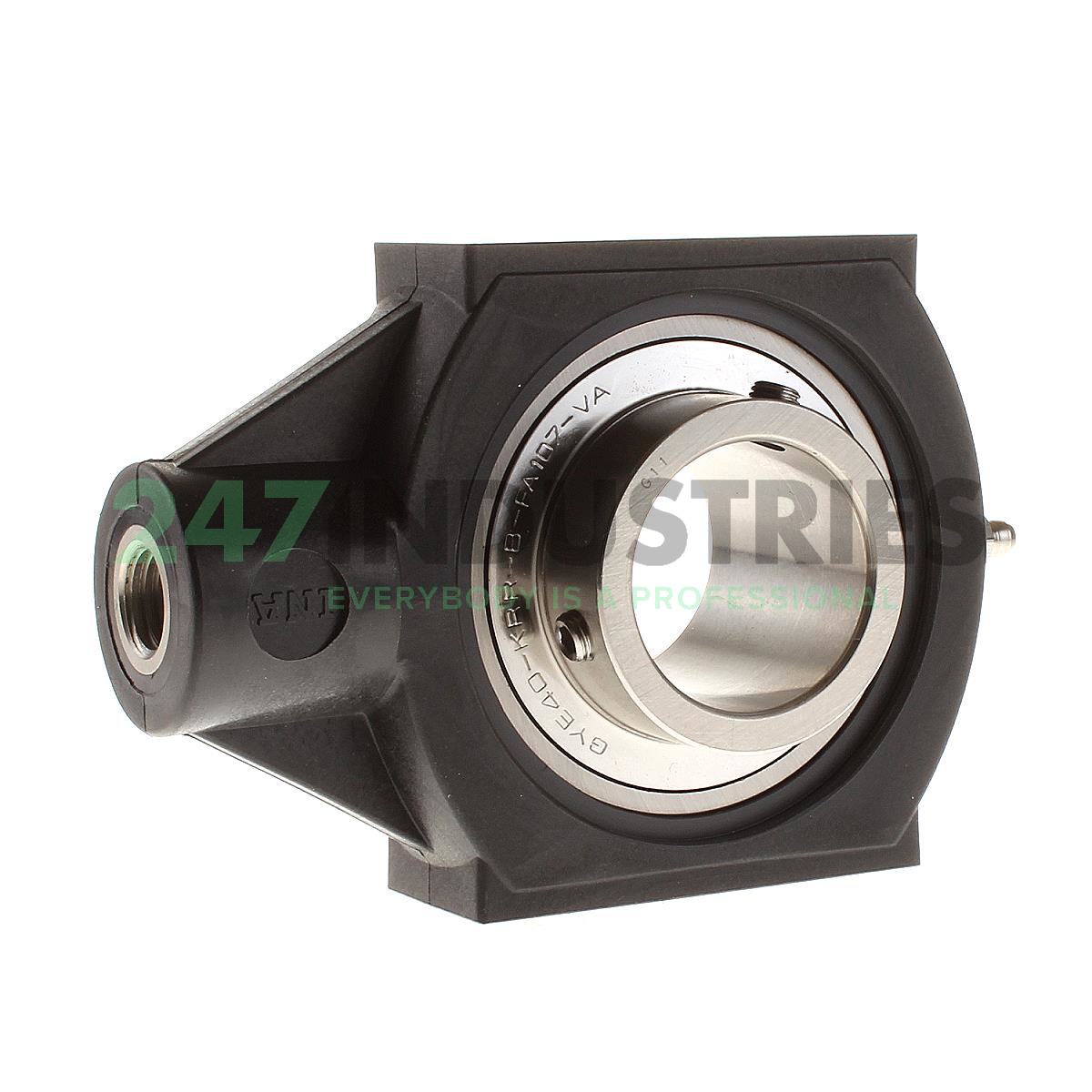

The RHEY40-TV-VA-HLA INA is a housing unit. The components of this bearing and housing assembly are matched to each other for reliable operation. This complete set is ready for use and easy to install. Housings simplify the installation of the bearing and shaft. Additionally, the bearing is supported and protected by the housing. Performing maintenance becomes easier while extending the bearing's lifespan.

Read more Show less
Help with this product

Downloads and links

Similar to: RHEY40-TV-VA-HLA INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 40
  2. Inner (d) Inch 1.5748
  3. Length (L) mm 140
  4. Housing total width (M) mm 100

Suffix description

  1. TV Plastic Housing
  2. VA Stainless Steel
  3. HLA Factory Location Code, No Additional Meaning. Can Be Used As Standard

Technical details

  1. Availability 1 pc
  2. Brand INA
  3. Item number RHEY40-TV-VA-HLA INA
  4. Also known as 0543554350000
    RHEY40-TV-VA
  5. EAN 4054366741189
  6. Category Housing and Bearing (assembly)

Weight and Dimensions

  1. Weight (kg) 1.01

Product Properties

  1. Seal 2F - Standard Seal for Y-bearings
  2. Lubrication Standard Lubrication
  3. Special Treatment Stainless Steel Bearing

Data from Schaeffler (medias)

  1. ECLASS number 23-05-16-03
  2. ECLASS2 number 23-05-16-03
  3. Medias description Take-up housing unit RHEY..-TV-VA, RIBB plastic

Downloads and links

  1. Link to manufacturer Link to manufacturer
