RHE20-XL INA

Name: RHE20-XL INA
Brand: INA

€ 43,02 ex VAT

€ 52,06 incl. VAT

€ 43,02 ex VAT

	Guaranteed same day shipment on orders placed before 17.00h (CEST)
	This product is available from stock
	Worldwide shipping from the Netherlands
	30 days return policy
	Track your order through Track & Trace

RHE20-XL INA

Housing unit

Stock	19 pcs in stock and ready for shipment
Brand	INA
Article number	RHE20-XL INA
Inside diameter	20,00mm
Outside diameter	91,00mm
Width	65,00mm

Product description

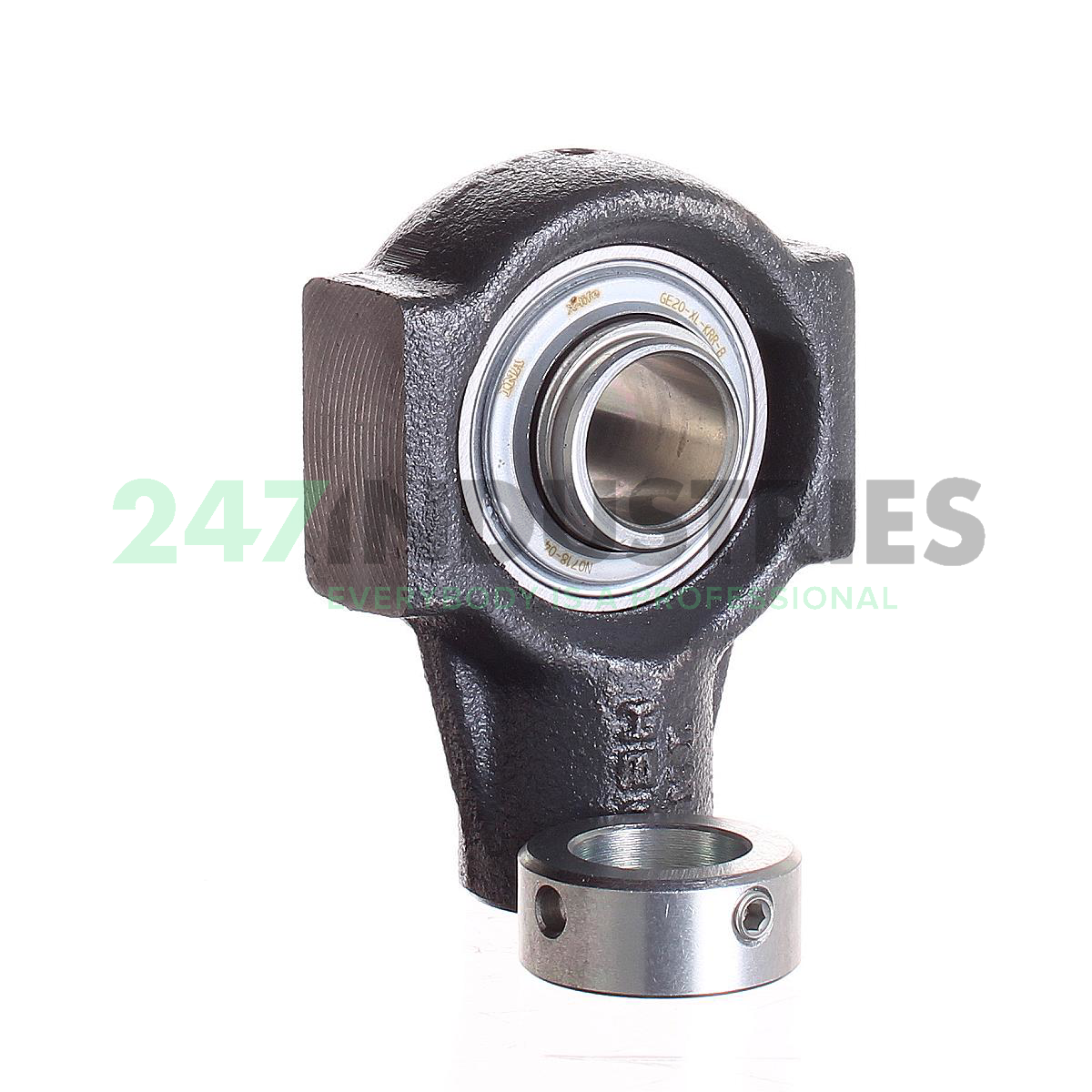

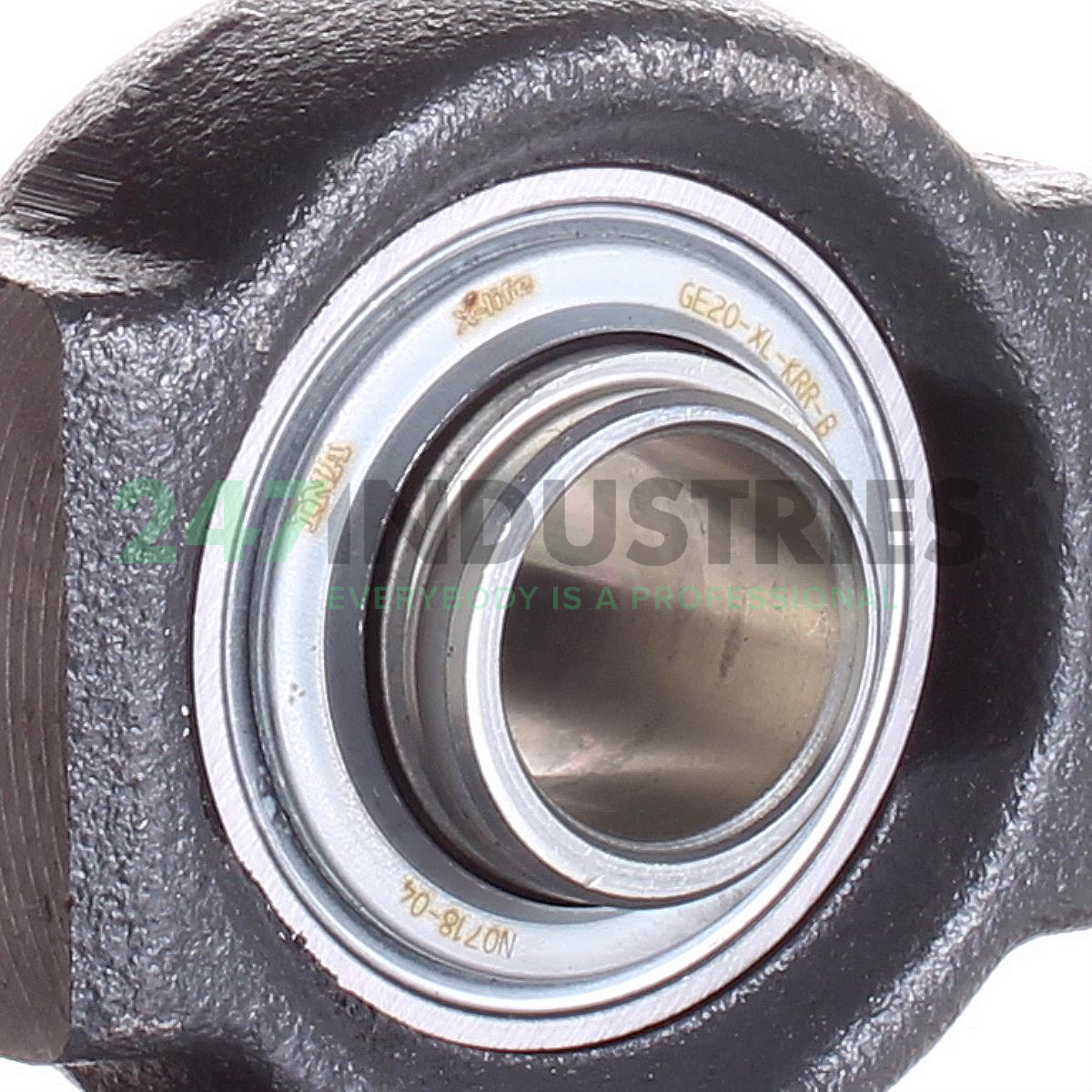

The RHE20-XL INA is a housing unit. The components of this bearing and housing assembly are matched to each other for reliable operation. This complete set is ready for use and easy to install. Housings simplify the installation of the bearing and shaft. Additionally, the bearing is supported and protected by the housing. Performing maintenance becomes easier while extending the bearing's lifespan.

Email us at: help@247industries.com Response within 24h

Downloads and links

Similar to: RHE20-XL INA

Loading similair products

Product specifications

Inside diameter 20,00mm
Outside diameter 91,00mm
Width 65,00mm

All dimensions

Inner (d) MM 20,00
Outer (D) MM 91,00
Width (B) MM 65,00
Inner (d) Inch 0.7874
Outer (D) Inch 3.5827
Width (B) Inch 2.5591
Length total (L) mm 91,00
Housing total width (M) mm 65,00
Width housing (A 2) mm 25,00

Suffix description

XL X-Life

Technical details

Availability 19 pcs
Brand INA
Item number RHE20-XL INA
Also known as 0008407260000
RHE20
EAN 4012802788549
Category Housing and Bearing (assembly)

Weight and Dimensions

Weight (kg) 0.58

Product Properties

Seal 2F - Standard Seal for Y-bearings
Lubrication Standard Lubrication
Special Treatment No Special Treatment

Data from Schaeffler (medias)

ECLASS number 23-05-16-03
ECLASS2 number 23-05-16-03
Medias description Take-up housing units RHE, cast iron housing, radial insert ball bearing with eccentric locking collar, R seals
