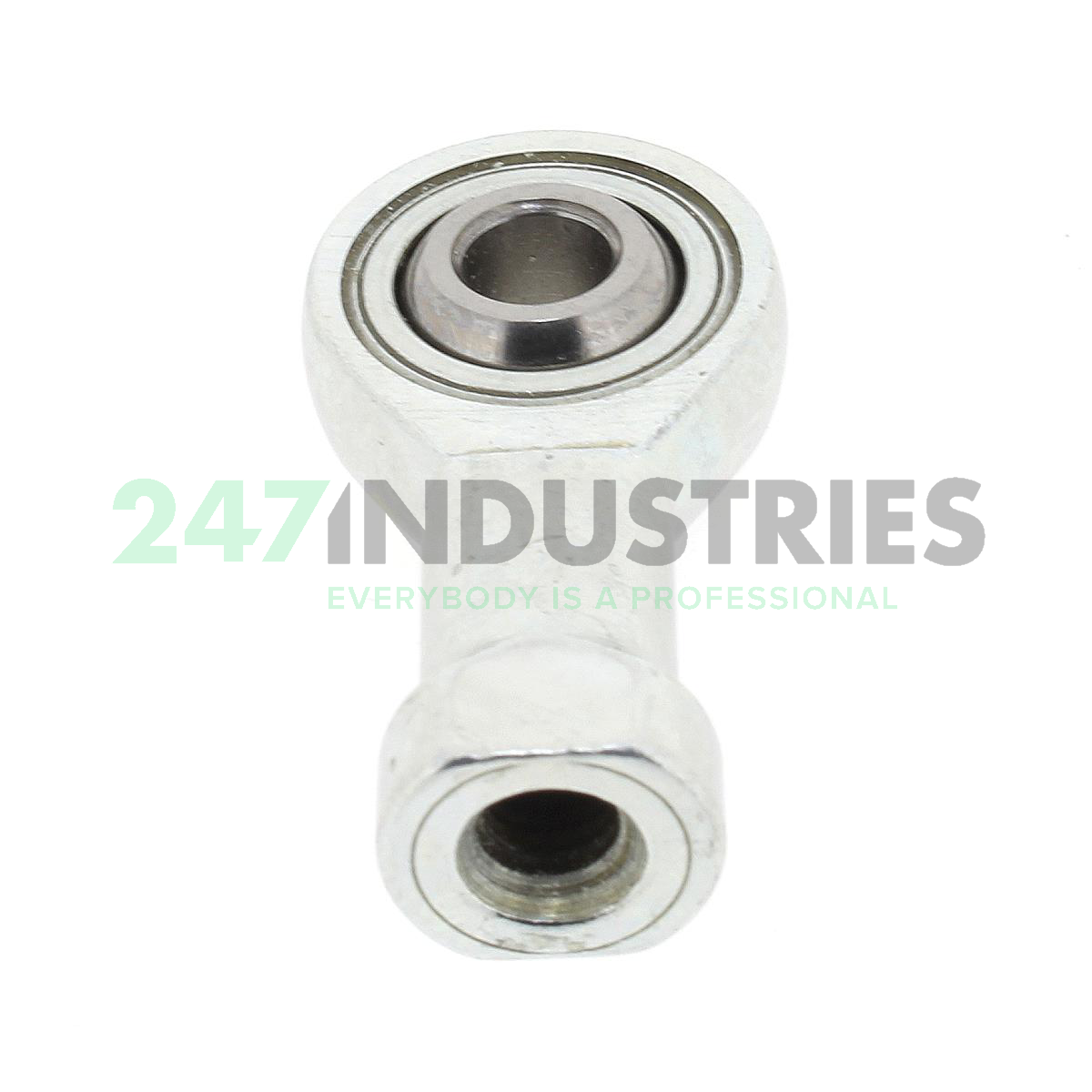

RFL6SE Rodobal

Rod end

Stock
not in stock
Brand Rodobal
Article number RFL6SE Rodobal
Inside diameter 6mm
Outside diameter 20mm
Width 9mm
Product description

The RFL6SE Rodobal is a rod end. Rod ends consist of a housing with integral shank and a spherical plain bearing. This plain bearing is composed of an inner and outer ring without rolling elements. Rod ends are often mounted on the end of hydraulic or pneumatic cylinders. They are also used to connect two shafts. Rod ends can accommodate misalignment, and they support radial forces in a tensile or compressive direction.

The RFL6SE Rodobal has a spherical plain bearing with a steel-on-steel sliding contact. Both the outer and inner rings of this bearing are made of steel. Bearings with steel-on-steel sliding contacts are wear-resistant and have a high load carrying capacity. This bearing type requires regular maintenance. Proper lubrication is required to reduce friction and prevent fouling and corrosion.

Help with this product

Similar to: RFL6SE Rodobal

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 6
  2. Outer (D) MM 20
  3. Width (B) MM 9
  4. Inner (d) Inch 0.2362
  5. Outer (D) Inch 0.7874
  6. Width (B) Inch 0.3543

Suffix description

  1. SE Units With Suffix S Have CuSn8 Bronze Races For Sliding Speed Up To 60m/min; Units With Suffix SE Have Steel Race With Bonded PTFE Impregnated Liner And They Need No Lubrication

Technical details

  1. Availability 0 pcs
  2. Brand Rodobal
  3. Item number RFL6SE Rodobal
  4. Category Rod End

Weight and Dimensions

  1. Weight (kg) 0.027

Product Properties

  1. Seal No Seal
  2. Contact Material Steel on Steel
