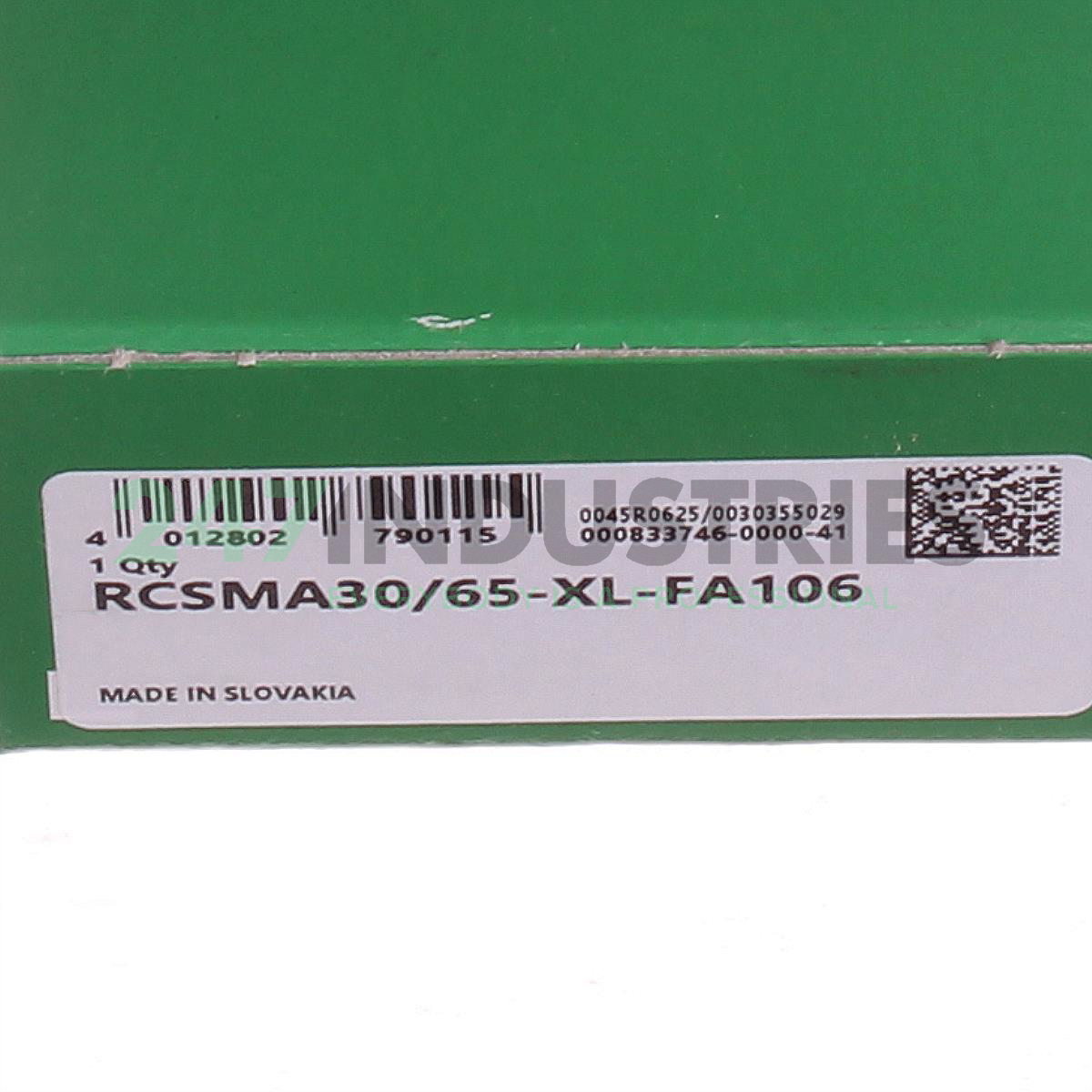

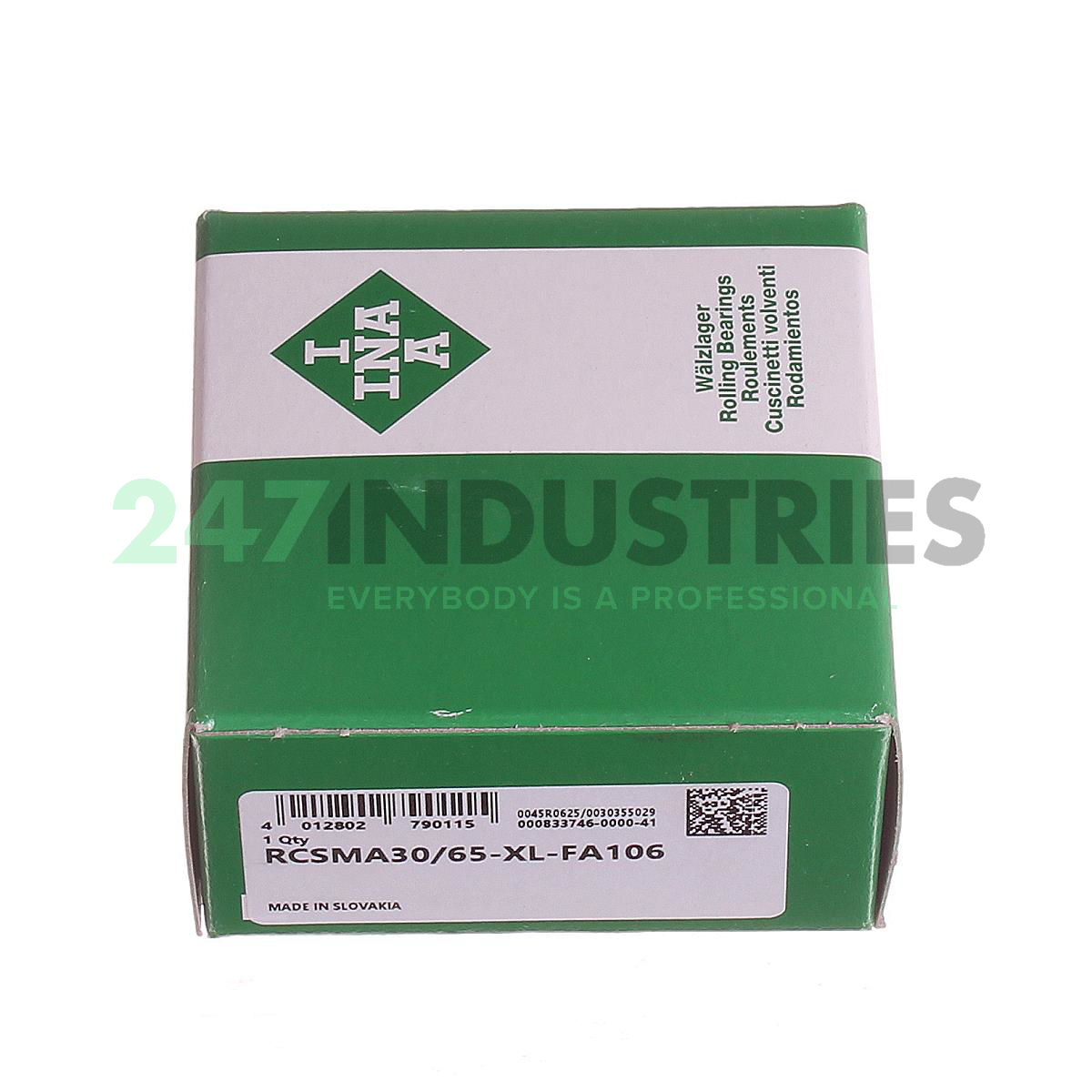

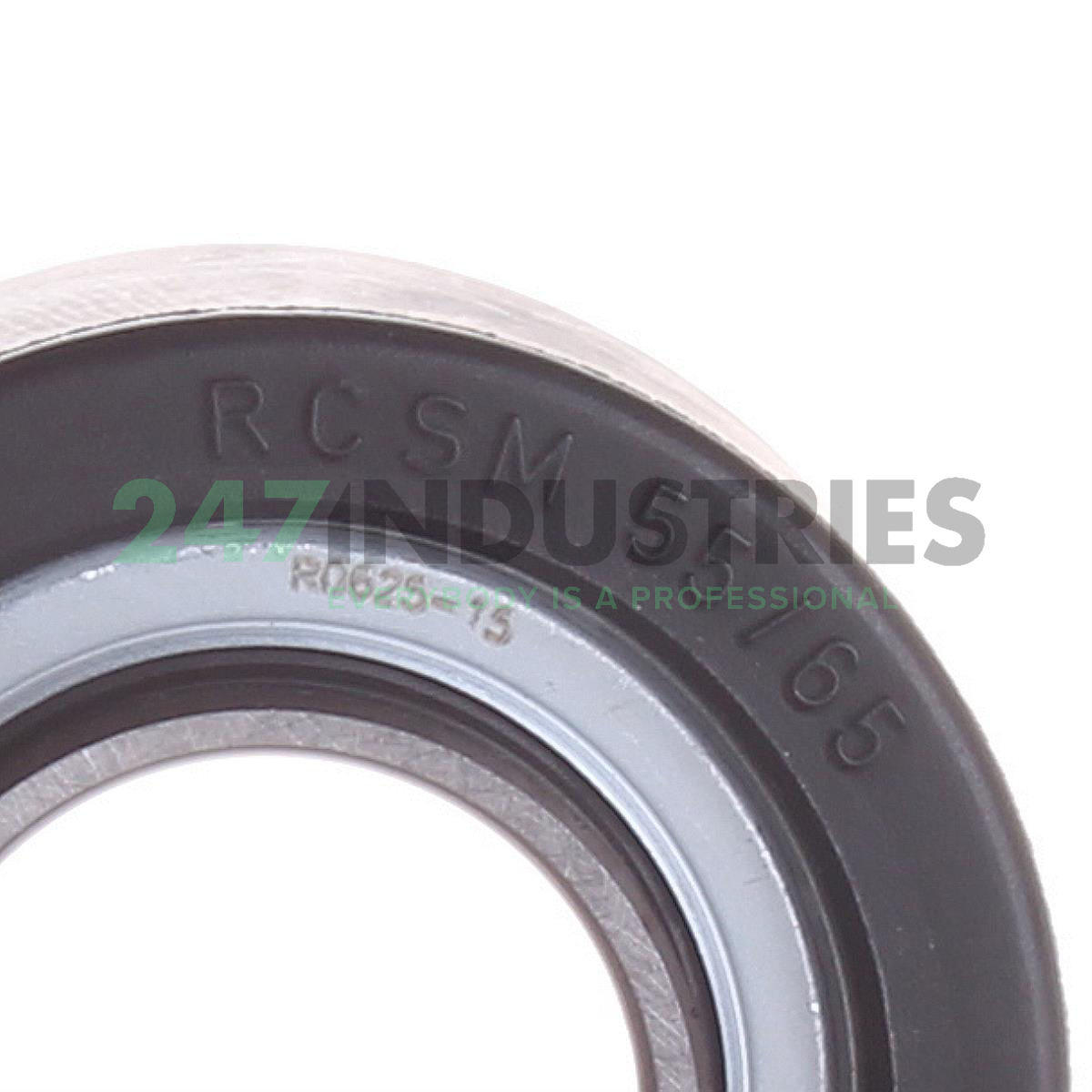

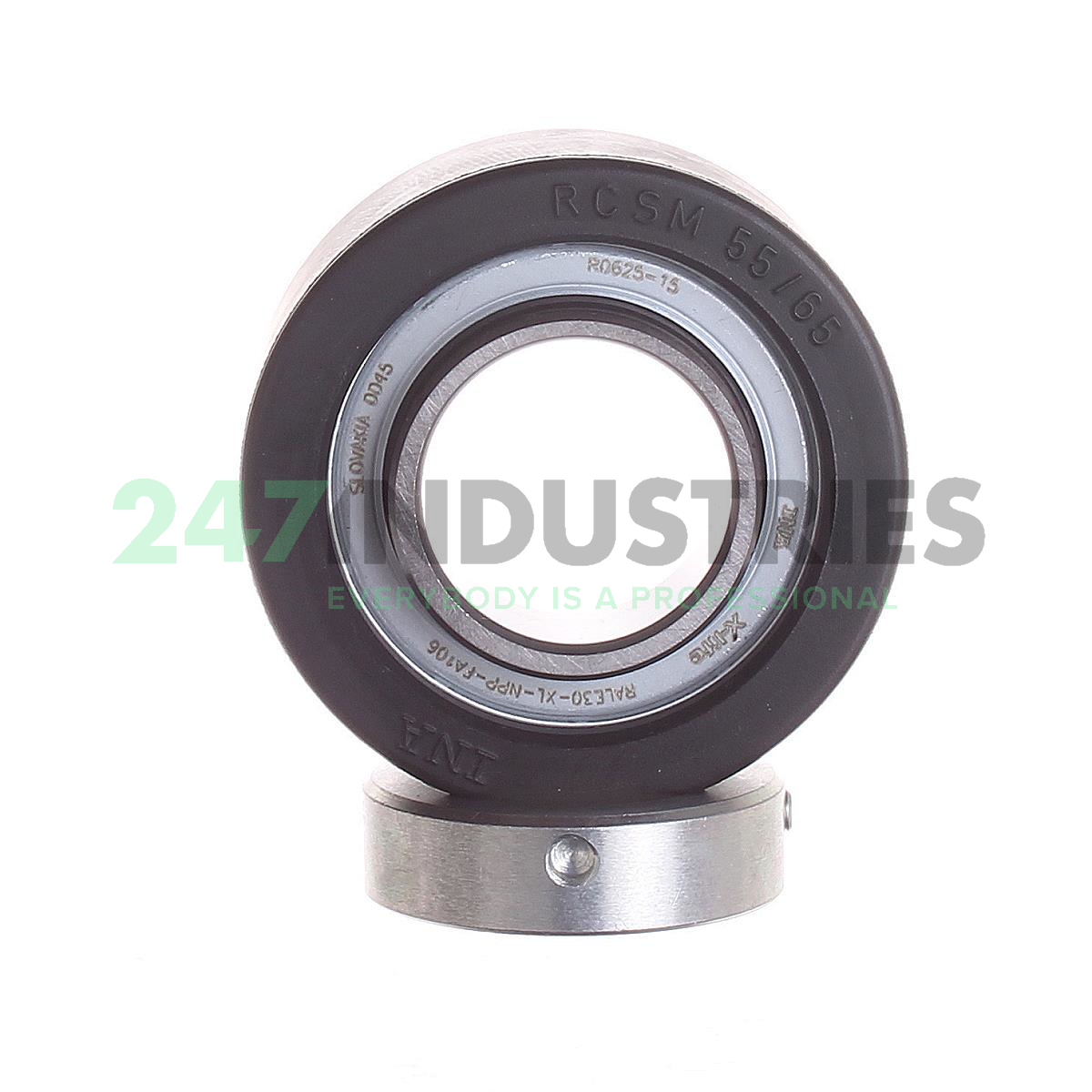

RCSMA30/65-XL-FA106 INA

All dimensions

1. Inner (d) MM 30
2. Outer (D) MM 65,1
3. Width (B) MM 26,5
4. Locking collar total width (B 1) mm 26,5

Suffix description

1. XL X-Life
2. FA106 Bearing Subjected To Special Noise Testing

Technical details

1. Availability 2 pcs
2. Brand INA
3. Item number RCSMA30/65-XL-FA106 INA
4. Also known as 0008337460000
   RCSMA30/65-FA106

5. EAN 4012802790115
6. Category Bearings for Housings

Weight and Dimensions

1. Weight (kg) 0.22

Product Properties

1. Seal 2F - Standard Seal for Y-bearings
2. Lubrication Standard Lubrication
3. Special Treatment FA106

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 8300
2. Radial Dynamic Load Rating Cr (N) 14100
3. ECLASS number 23-05-08-02
4. ECLASS2 number 23-05-08-02
5. Medias description Radial insert ball bearings RCSM, with rubber interliner, location by eccentric locking collar, P seals on both sides

Downloads and links

1. X-life brochure X-life brochure
2. Link to manufacturer Link to manufacturer
