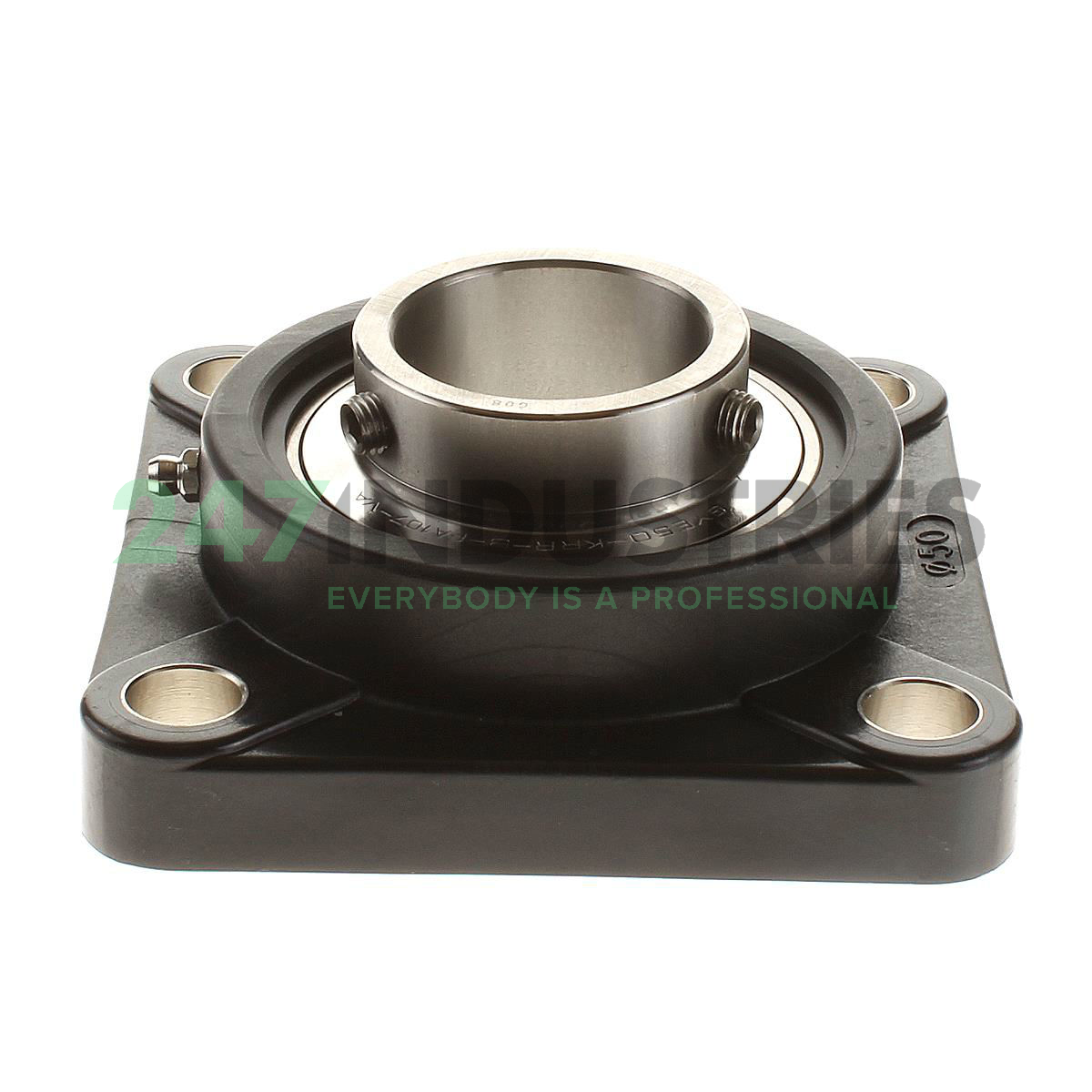

RCJY50-TV-VA-HLA INA

Housing unit

Stock
8 pcs available
Brand INA
Article number RCJY50-TV-VA-HLA INA
Inside diameter 50mm
Outside diameter 153mm
Width 53,6mm
Product description

The RCJY50-TV-VA-HLA INA is a housing unit. The components of this bearing and housing assembly are matched to each other for reliable operation. This complete set is ready for use and easy to install. Housings simplify the installation of the bearing and shaft. Additionally, the bearing is supported and protected by the housing. Performing maintenance becomes easier while extending the bearing's lifespan.

Help with this product

Downloads and links

Similar to: RCJY50-TV-VA-HLA INA

Product
Dimensions/Properties
Stock
Price ex VAT

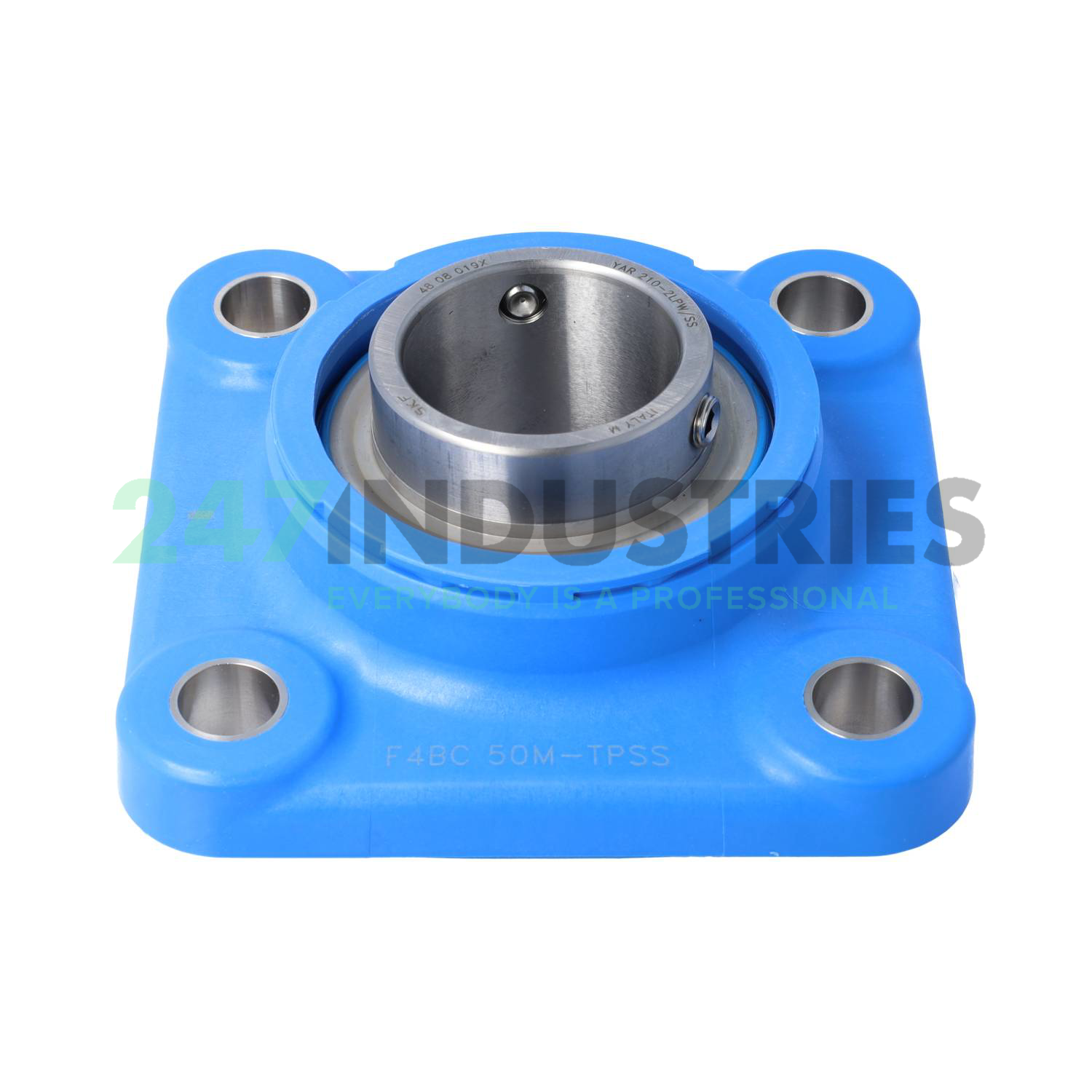

F4BC50M-TPSS SKF
F4BC50M-TPSS SKF
Guaranteed same day shipment on orders placed before 18:00h (CET)
235,27 ex VAT
  • Inside diameter 50mm
  • Outside diameter 153mm
  • Width 53,6mm
F4BC50M-TPSS SKF
Guaranteed same day shipment on orders placed before 18:00h (CET)

2 pcs
235,27 ex VAT

Product specifications

All dimensions

  1. Inner (d) MM 50
  2. Outer (D) MM 153
  3. Width (B) MM 53,6
  4. Inner (d) Inch 1.9685
  5. Outer (D) Inch 6.0236
  6. Width (B) Inch 2.1102
  7. Flange width (L) mm 143
  8. Total height unit (U) mm 57,6

Suffix description

  1. TV Plastic Housing
  2. VA Stainless Steel
  3. HLA Factory Location Code, No Additional Meaning. Can Be Used As Standard

Technical details

  1. Availability 8 pcs
  2. Brand INA
  3. Item number RCJY50-TV-VA-HLA INA
  4. Also known as 0519731890000
    127562
    C4F50SS
    F4BC50M-TPSS
    F4B-SCEZ-50M-PCR
    FYWK50LTHR
    MRC.C4F50SS
    MUC210 + FPL210SB
    MUCB210
    RCJY50-TV-VA
    YAR210-2RFGR/HV+FYWK510L
  5. EAN 4054366719645
  6. Category Housing and Bearing (assembly)

Weight and Dimensions

  1. Weight (kg) 1.2

Product Properties

  1. Seal 2GU
  2. Lubrication Food Grease
  3. Special Treatment Stainless Steel Bearing

Data from Schaeffler (medias)

  1. Radial Static Load Rating C0r (N) 22100
  2. Radial Dynamic Load Rating Cr (N) 33500
  3. Load carrying capacity (housing) (C 0r G) 19600
  4. ECLASS number 23-05-16-02
  5. ECLASS2 number 23-05-16-02
  6. Medias description Flanged housing unit RCJY..-TV-VA
