RCJY30-TV-VA-HLA INA

Housing and Bearing (assembly)

Stock
20 pcs available for shipment on Mon 22 Dec
Brand INA
Article number RCJY30-TV-VA-HLA INA
Inside diameter 30mm
Outside diameter 112mm
Width 40,7mm
Product description

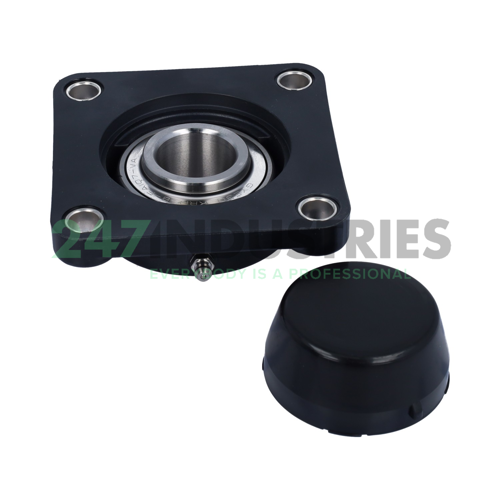

The RCJY30-TV-VA-HLA INA is a housing unit. The components of this bearing and housing assembly are matched to each other for reliable operation. This complete set is ready for use and easy to install. Housings simplify the installation of the bearing and shaft. Additionally, the bearing is supported and protected by the housing. Performing maintenance becomes easier while extending the bearing's lifespan.

Read more Show less
Help with this product

Downloads and links

Similar to: RCJY30-TV-VA-HLA INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 30
  2. Outer (D) MM 112
  3. Width (B) MM 40,7
  4. Inner (d) Inch 1.1811
  5. Outer (D) Inch 4.4094
  6. Width (B) Inch 1.6024
  7. Flange width (L) mm 107
  8. Total height unit (U) mm 41,4

Suffix description

  1. TV Plastic Housing
  2. VA Stainless Steel
  3. HLA Factory Location Code, No Additional Meaning. Can Be Used As Standard

Technical details

  1. Availability 20 pcs on Mon 22 Dec
  2. Brand INA
  3. Item number RCJY30-TV-VA-HLA INA
  4. Also known as 0519632210000
    127558
    C4F30SS
    F4BC30M-TPSS
    F4B-SCEZ-30M-PCR
    FYWK30YTH
    MRC.C4F30SS
    MUC206 + FPL206SB
    MUCB206
    PSF30CR
    RCJY30-TV-VA
    UC206S6 + VF206
    UCVF206S6
    YAR206-2RF/HV + FYWK506Y
  5. EAN 4054366718938
  6. Category Housing and Bearing (assembly)

Weight and Dimensions

  1. Weight (kg) 0.52

Product Properties

  1. Seal 2GU
  2. Lubrication Food Grease
  3. Special Treatment Stainless Steel Bearing

Data from Schaeffler (medias)

  1. Radial Static Load Rating C0r (N) 10700
  2. Radial Dynamic Load Rating Cr (N) 18700
  3. Load carrying capacity (housing) (C 0r G) 17700
  4. ECLASS number 23-05-16-02
  5. ECLASS2 number 23-05-16-02
  6. Medias description Flanged housing unit RCJY..-TV-VA
