RCJTZ50-XL INA

€ 96,03 ex VAT
€ 116,19 in VAT
€ 116,19 in VAT
€ 96,03 ex VAT

Guaranteed same day shipment on orders placed before 18.00h (CEST)
This product is available from stock
Worldwide shipping from the Netherlands
30 days return policy
Track your order through Track & Trace
iDeal, Mastercard, Visa, PayPal

RCJTZ50-XL INA

Housing unit

Stock
11 pcs in stock and ready for shipment
Brand INA
Article number RCJTZ50-XL INA
Inside diameter 50mm
Outside diameter 190mm
Width 62,1mm
Product description

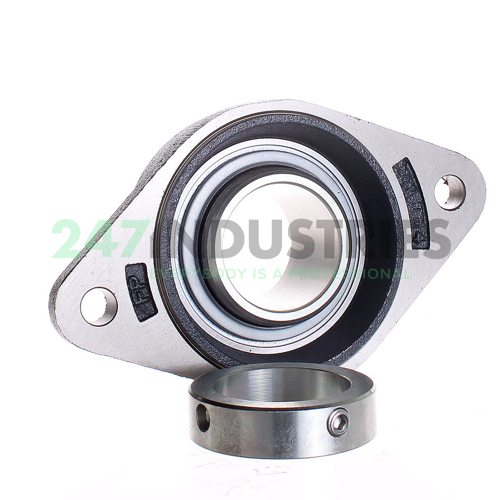

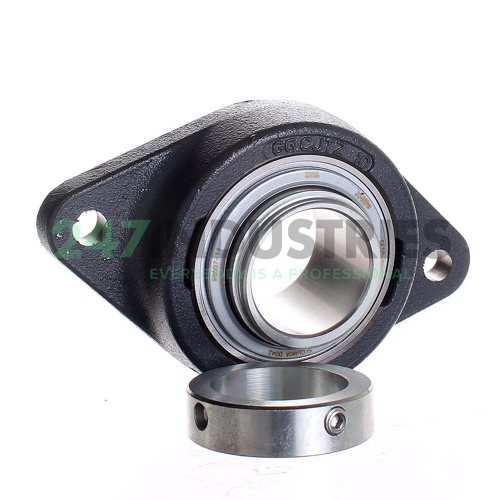

The RCJTZ50-XL INA is a housing unit. The components of this bearing and housing assembly are matched to each other for reliable operation. This complete set is ready for use and easy to install. Housings simplify the installation of the bearing and shaft. Additionally, the bearing is supported and protected by the housing. Performing maintenance becomes easier while extending the bearing's lifespan.

Help with this product

Downloads and links

Similar to: RCJTZ50-XL INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 50
  2. Outer (D) MM 190
  3. Width (B) MM 62,1
  4. Inner (d) Inch 1.9685
  5. Outer (D) Inch 7.4803
  6. Width (B) Inch 2.4449
  7. Flange width (L) mm 116
  8. Height flange (H) mm 190
  9. Total height unit (U) mm 62,2

Suffix description

  1. XL X-Life

Technical details

  1. Availability 11 pcs
  2. Brand INA
  3. Item number RCJTZ50-XL INA
  4. Also known as 0008317270000
    RCJTZ50
  5. EAN 4012802791129
  6. Category Housing and Bearing (assembly)

Weight and Dimensions

  1. Weight (kg) 2.21

Product Properties

  1. Seal 2F - Standard Seal for Y-bearings
  2. Lubrication Standard Lubrication
  3. Special Treatment No Special Treatment

Data from Schaeffler (medias)

  1. Radial Static Load Rating C0r (N) 23200
  2. Radial Dynamic Load Rating Cr (N) 37500
  3. Basic static load rating, radial (C 0r) "23200.0000"
  4. ECLASS number 23-05-16-02
  5. ECLASS2 number 23-05-16-02
  6. Medias description Housing units RCJTZ, two-bolt flanged housing units, cast iron, centring spigot, eccentric locking collar, R seals
