RCJTY60-XL-N-I INA

€ 124,52 ex VAT
€ 150,66 incl. VAT
€ 150,66 incl. VAT
€ 124,52 ex VAT
Guaranteed same day shipment on orders placed before 17.00h (CEST)
This product is available from stock
Worldwide shipping from the Netherlands
30 days return policy
Track your order through Track & Trace
iDeal, Mastercard, Visa, PayPal

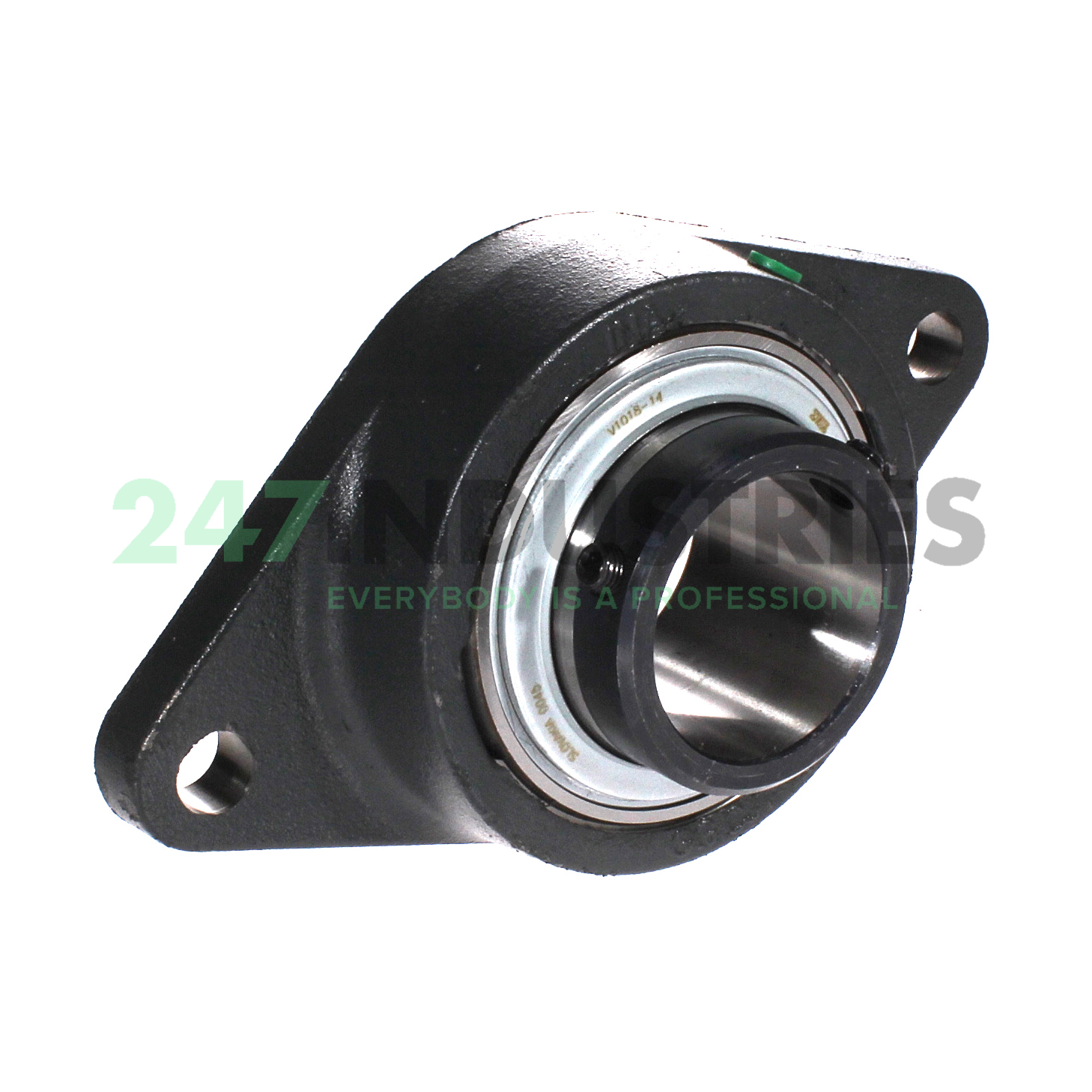

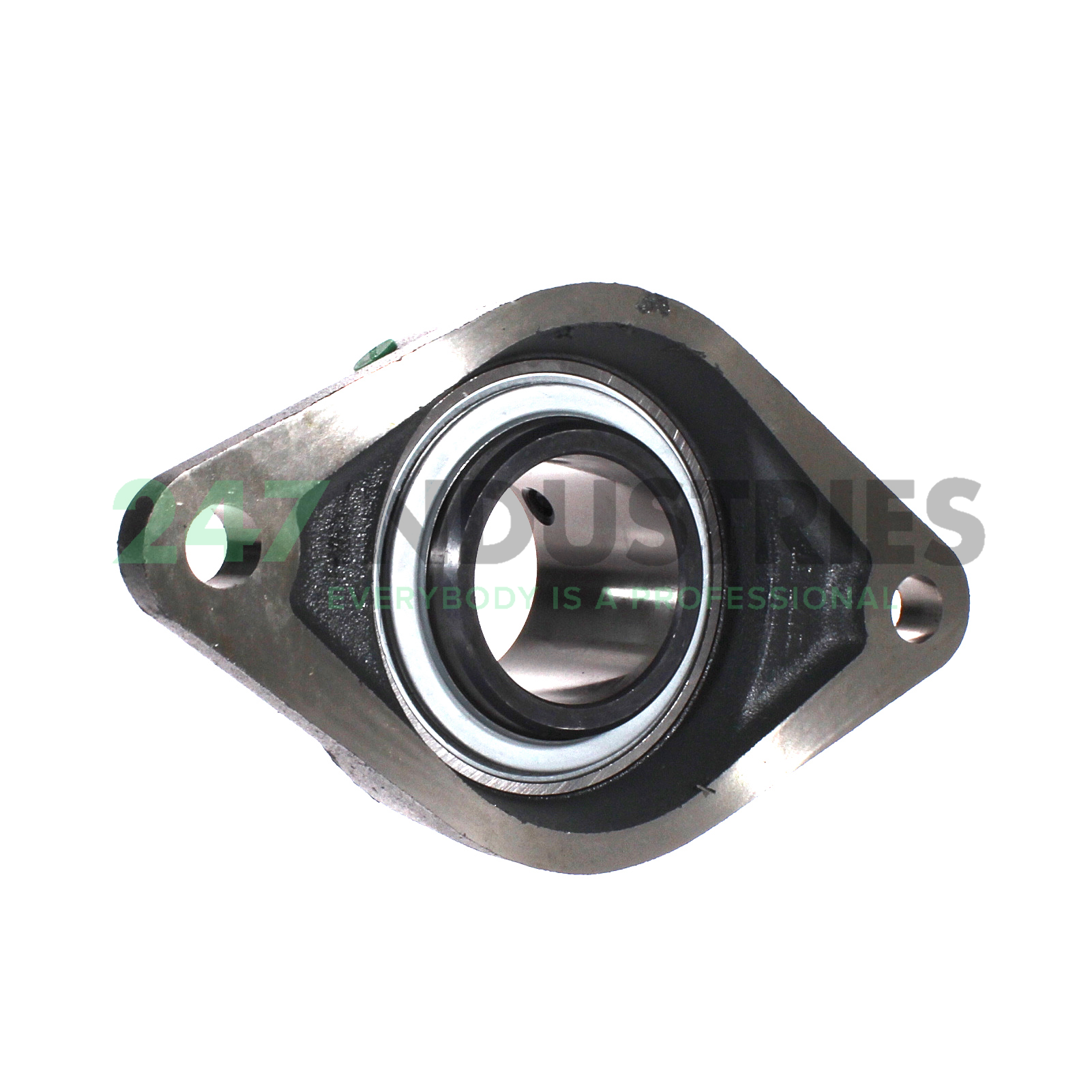

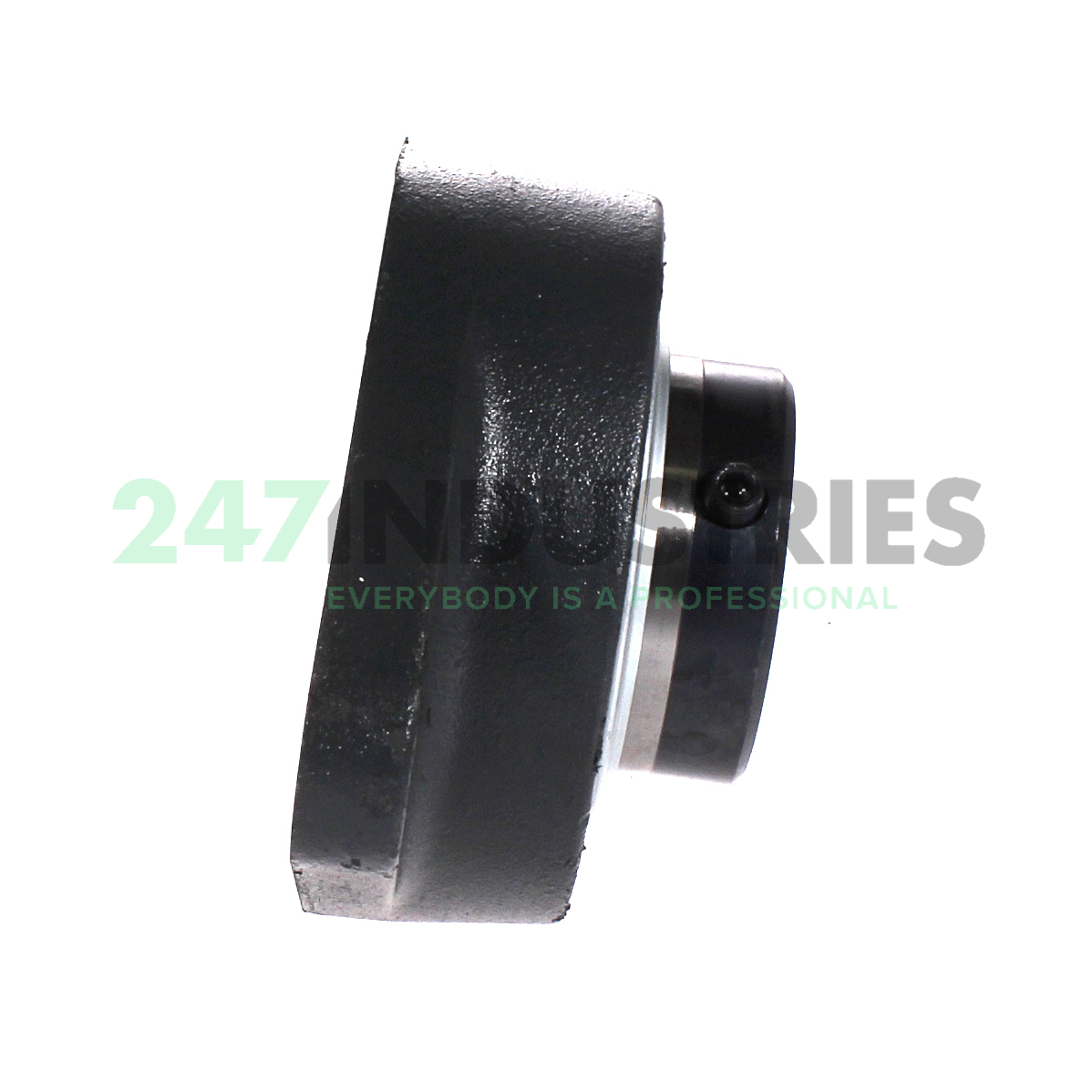

RCJTY60-XL-N-I INA

Housing unit

Stock
164 pcs in stock and ready for shipment
Brand INA
Article number RCJTY60-XL-N-I INA
Inside diameter 60,00mm
Outside diameter 238,00mm
Width 73,70mm
Product description

The RCJTY60-XL-N-I INA is a housing unit. The components of this bearing and housing assembly are matched to each other for reliable operation. This complete set is ready for use and easy to install. Housings simplify the installation of the bearing and shaft. Additionally, the bearing is supported and protected by the housing. Performing maintenance becomes easier while extending the bearing's lifespan.

Read more Show less
Help with this product

Downloads and links

Similar to: RCJTY60-XL-N-I INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 60,00
  2. Outer (D) MM 238,00
  3. Width (B) MM 73,70
  4. Inner (d) Inch 2.3622
  5. Outer (D) Inch 9.3701
  6. Width (B) Inch 2.9016

Suffix description

  1. XL X-Life
  2. N Cast Iron Housing With Undercut Slot For End Caps
  3. I Inch Size Grease Nipple R 1/8”

Technical details

  1. Availability 164 pcs
  2. Brand INA
  3. Item number RCJTY60-XL-N-I INA
  4. Also known as 0009503510000
    RCJTY60-N-I
  5. EAN 4012802824148
  6. Category Housing and Bearing (assembly)

Weight and Dimensions

  1. Weight (kg) 3.46

Product Properties

  1. Seal 2F - Standard Seal for Y-bearings
  2. Lubrication Standard Lubrication
  3. Special Treatment No Special Treatment

Data from Schaeffler (medias)

  1. Radial Static Load Rating C0r (N) 36000
  2. Radial Dynamic Load Rating Cr (N) 56000
  3. ECLASS number 23-05-16-02
  4. ECLASS2 number 23-05-16-02
  5. Medias description Housing units RCJTY, two-bolt flanged housing units, cast iron, grub screws in inner ring, R seals

Downloads and links

  1. X-life brochure X-life brochure
  2. Link to manufacturer Link to manufacturer
Show all details Show less
