RCJTY55-XL INA

Housing and Bearing (assembly)

Stock
22 pcs in stock and ready for shipment
Brand INA
Article number RCJTY55-XL INA
Inside diameter 55mm
Outside diameter 222mm
Width 64,4mm
Product description

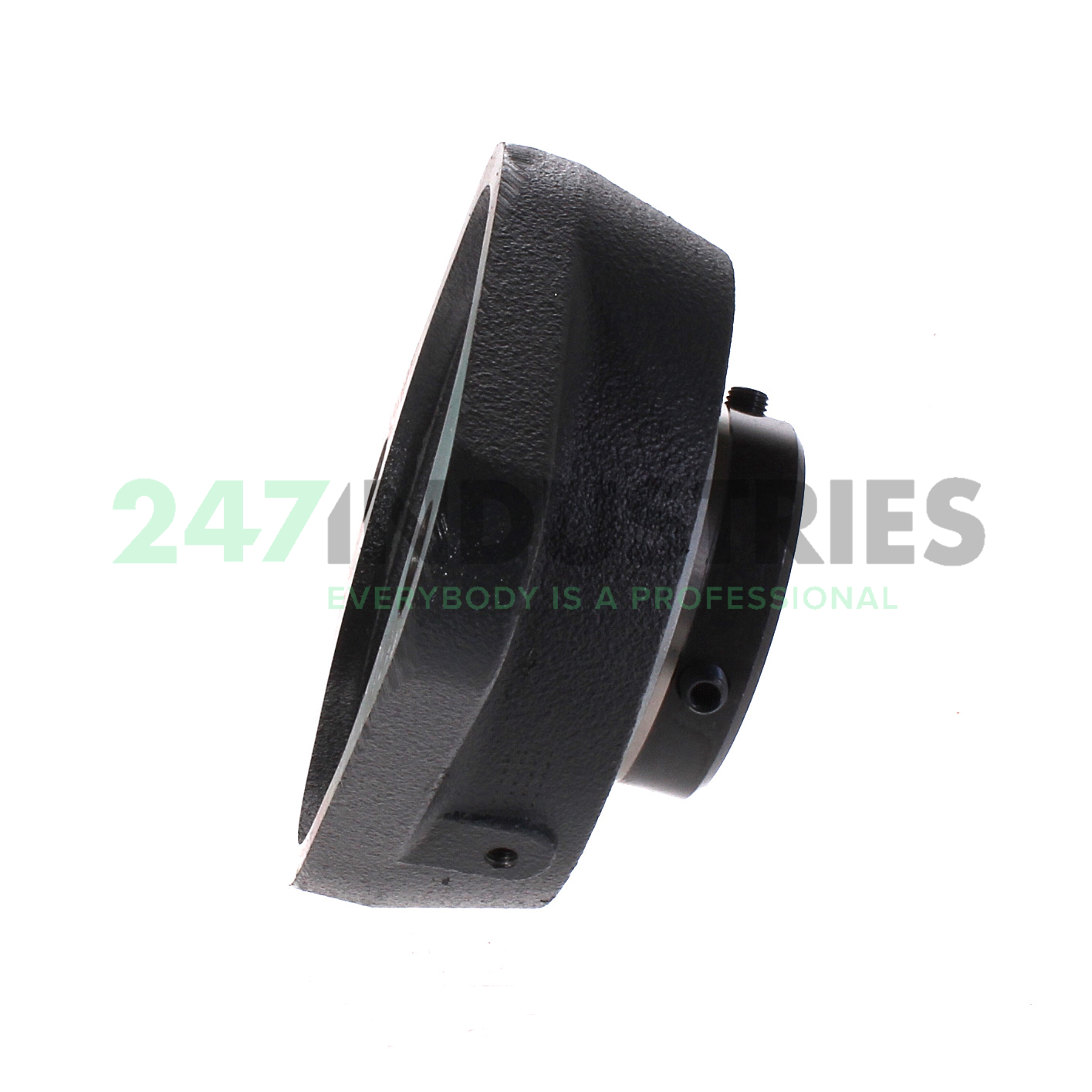

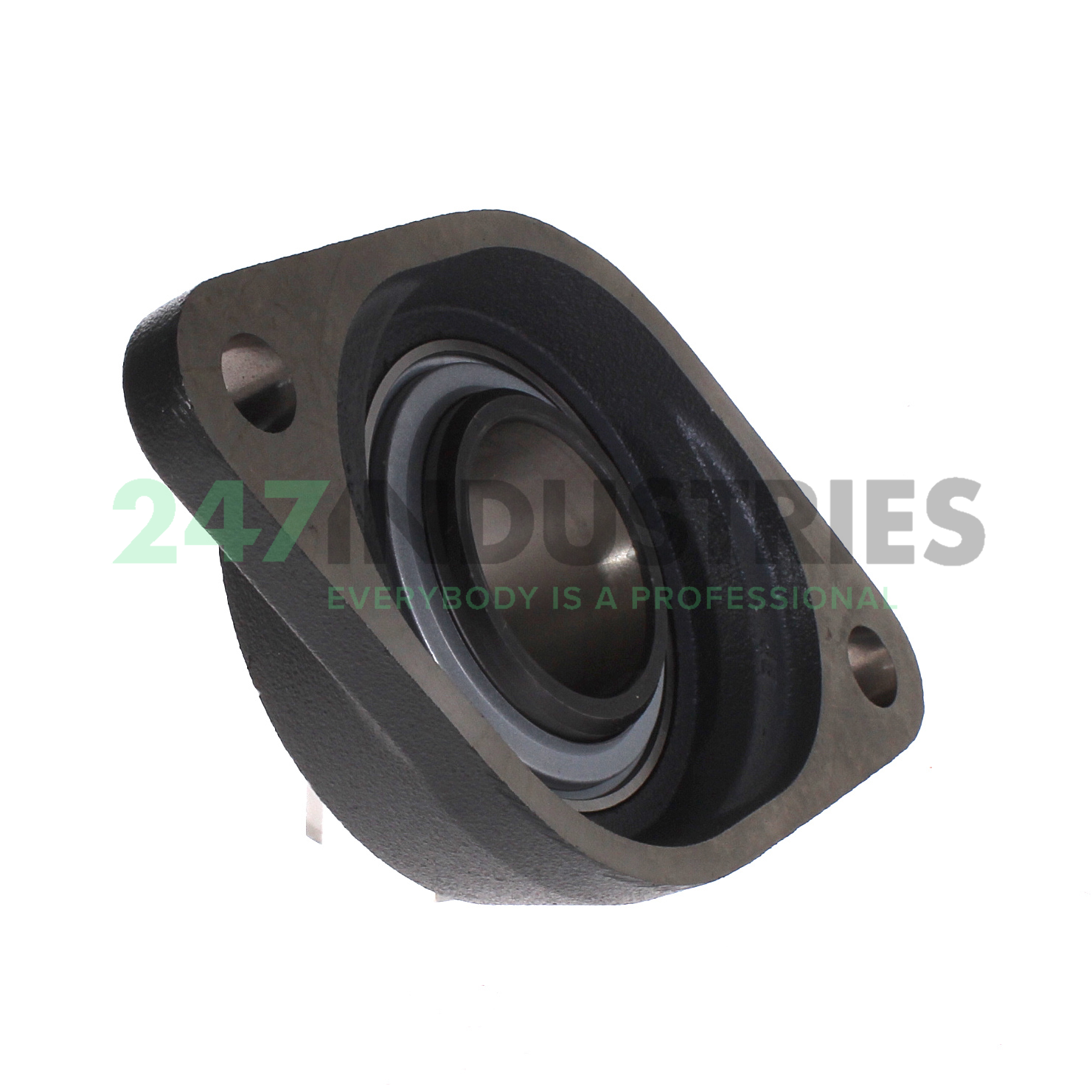

The RCJTY55-XL INA is a housing unit. The components of this bearing and housing assembly are matched to each other for reliable operation. This complete set is ready for use and easy to install. Housings simplify the installation of the bearing and shaft. Additionally, the bearing is supported and protected by the housing. Performing maintenance becomes easier while extending the bearing's lifespan.

Read more Show less
Help with this product

Downloads and links

Similar to: RCJTY55-XL INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 55
  2. Outer (D) MM 222
  3. Width (B) MM 64,4
  4. Inner (d) Inch 2.1654
  5. Outer (D) Inch 8.7402
  6. Width (B) Inch 2.5354
  7. Flange width (L) mm 134
  8. Height flange (H) mm 222
  9. Total height unit (U) mm 64,4

Suffix description

  1. XL X-Life

Technical details

  1. Availability 22 pcs
  2. Brand INA
  3. Item number RCJTY55-XL INA
  4. Also known as 0009509470000
    FYTB55TF
    RCJTY55
    UC211 + FL211
    UCFL211
    UCFL211-J7
  5. EAN 4012802823943
  6. Category Housing and Bearing (assembly)

Weight and Dimensions

  1. Weight (kg) 2.925

Product Properties

  1. Seal 2F - Standard Seal for Y-bearings
  2. Lubrication Standard Lubrication
  3. Special Treatment No Special Treatment

Data from Schaeffler (medias)

  1. Radial Static Load Rating C0r (N) 29000
  2. Radial Dynamic Load Rating Cr (N) 46000
  3. ECLASS number 23-05-16-02
  4. ECLASS2 number 23-05-16-02
  5. Medias description Housing units RCJTY, two-bolt flanged housing units, cast iron, grub screws in inner ring, R seals

Downloads and links

  1. X-life brochure X-life brochure
  2. Link to manufacturer Link to manufacturer
