RCJTY50-XL-N INA

€ 56,53 ex VAT
€ 68,41 in VAT
€ 68,41 in VAT
€ 56,53 ex VAT

69 similar products for RCJTY50-XL-N INA in stock
Worldwide shipping from the Netherlands
30 days return policy
Track your order through Track & Trace
iDeal, Mastercard, Visa, PayPal

RCJTY50-XL-N INA

Housing and Bearing (assembly)

Stock
not in stock
Brand INA
Article number RCJTY50-XL-N INA
Inside diameter 50mm
Outside diameter 189mm
Width 60,6mm
Product description

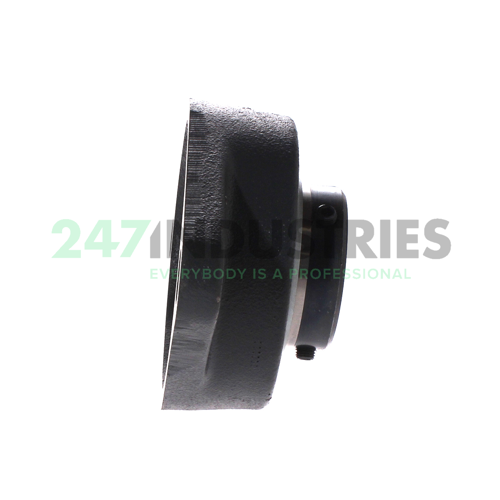

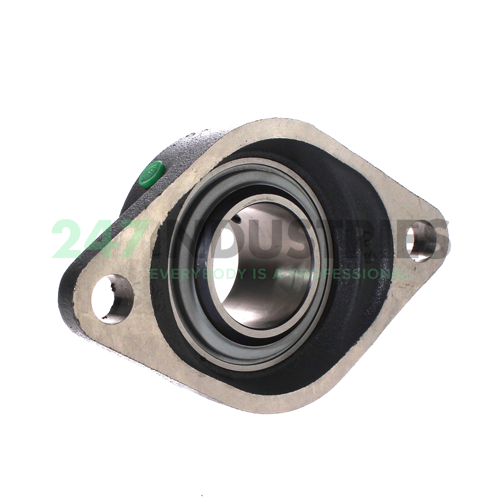

The RCJTY50-XL-N INA is a housing unit. The components of this bearing and housing assembly are matched to each other for reliable operation. This complete set is ready for use and easy to install. Housings simplify the installation of the bearing and shaft. Additionally, the bearing is supported and protected by the housing. Performing maintenance becomes easier while extending the bearing's lifespan.

Read more Show less
Help with this product

Downloads and links

Similar to: RCJTY50-XL-N INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 50
  2. Outer (D) MM 189
  3. Width (B) MM 60,6
  4. Inner (d) Inch 1.9685
  5. Outer (D) Inch 7.4409
  6. Width (B) Inch 2.3858
  7. Flange width (L) mm 116
  8. Height flange (H) mm 190
  9. Total height unit (U) mm 60,6

Suffix description

  1. XL X-Life
  2. N Cast Iron Housing With Undercut Slot For End Caps

Technical details

  1. Availability 0 pcs
  2. Brand INA
  3. Item number RCJTY50-XL-N INA
  4. Also known as 0947301720000
    NIP DIN71412-A R 1/8
    NIP DIN71412-B R 1/8
    NIP DIN71412-C R 1/8
    RCJTY50-N
  5. EAN 4054372845284
  6. Category Housing and Bearing (assembly)

Weight and Dimensions

  1. Weight (kg) 2.06

Product Properties

  1. Seal 2F - Standard Seal for Y-bearings
  2. Lubrication Standard Lubrication
  3. Special Treatment No Special Treatment

Data from Schaeffler (medias)

  1. Basic static load rating, radial (C 0r) 23200

Downloads and links

  1. X-life brochure X-life brochure
  2. Link to manufacturer Link to manufacturer
Show all details Show less
