RCJTY40-TV-VA-HLA INA

€ 176,21 ex VAT
€ 213,21 in VAT
€ 213,21 in VAT
€ 176,21 ex VAT

Guaranteed same day shipment on orders placed before 18.00h (CEST)
This product is available from stock
Worldwide shipping from the Netherlands
30 days return policy
Track your order through Track & Trace
iDeal, Mastercard, Visa, PayPal

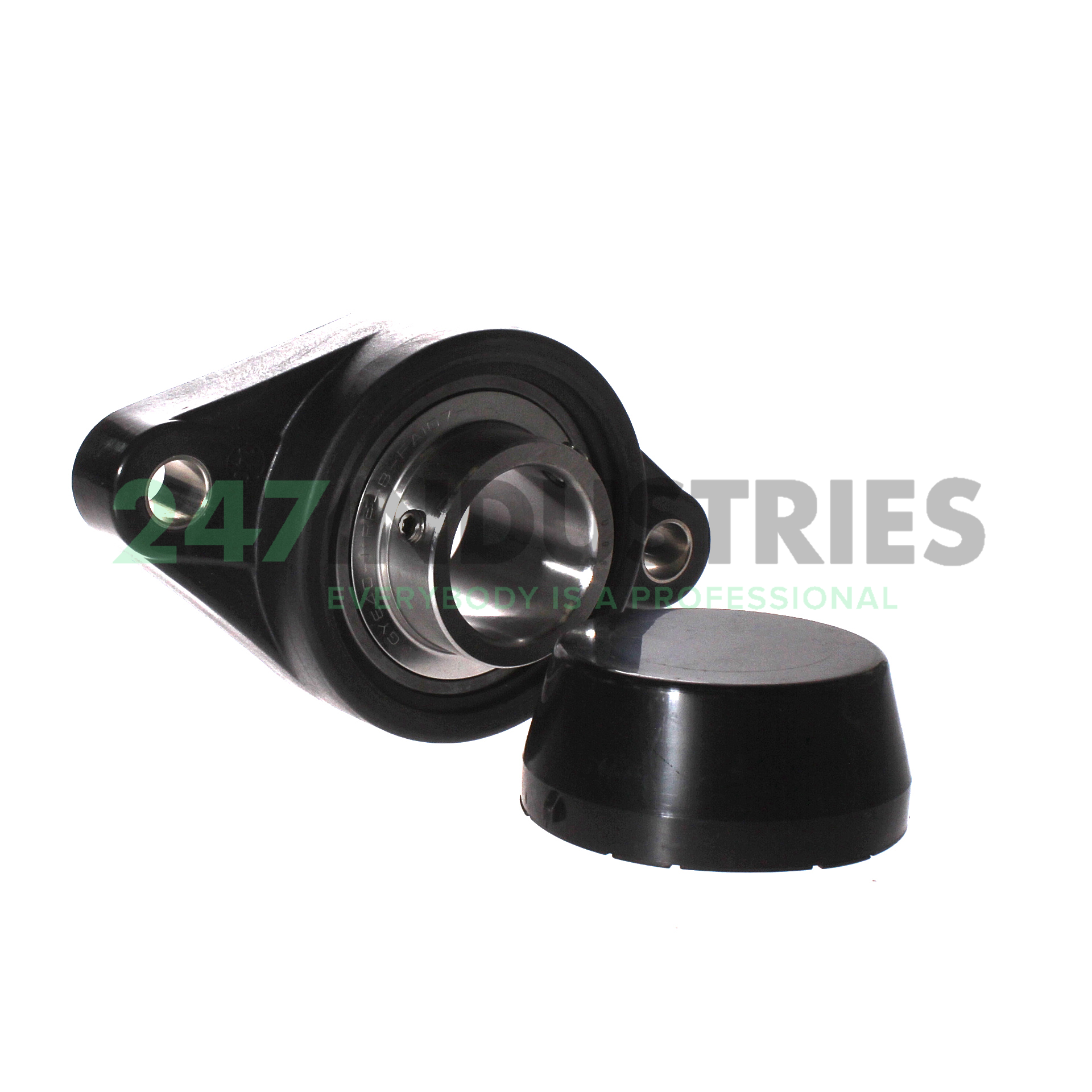

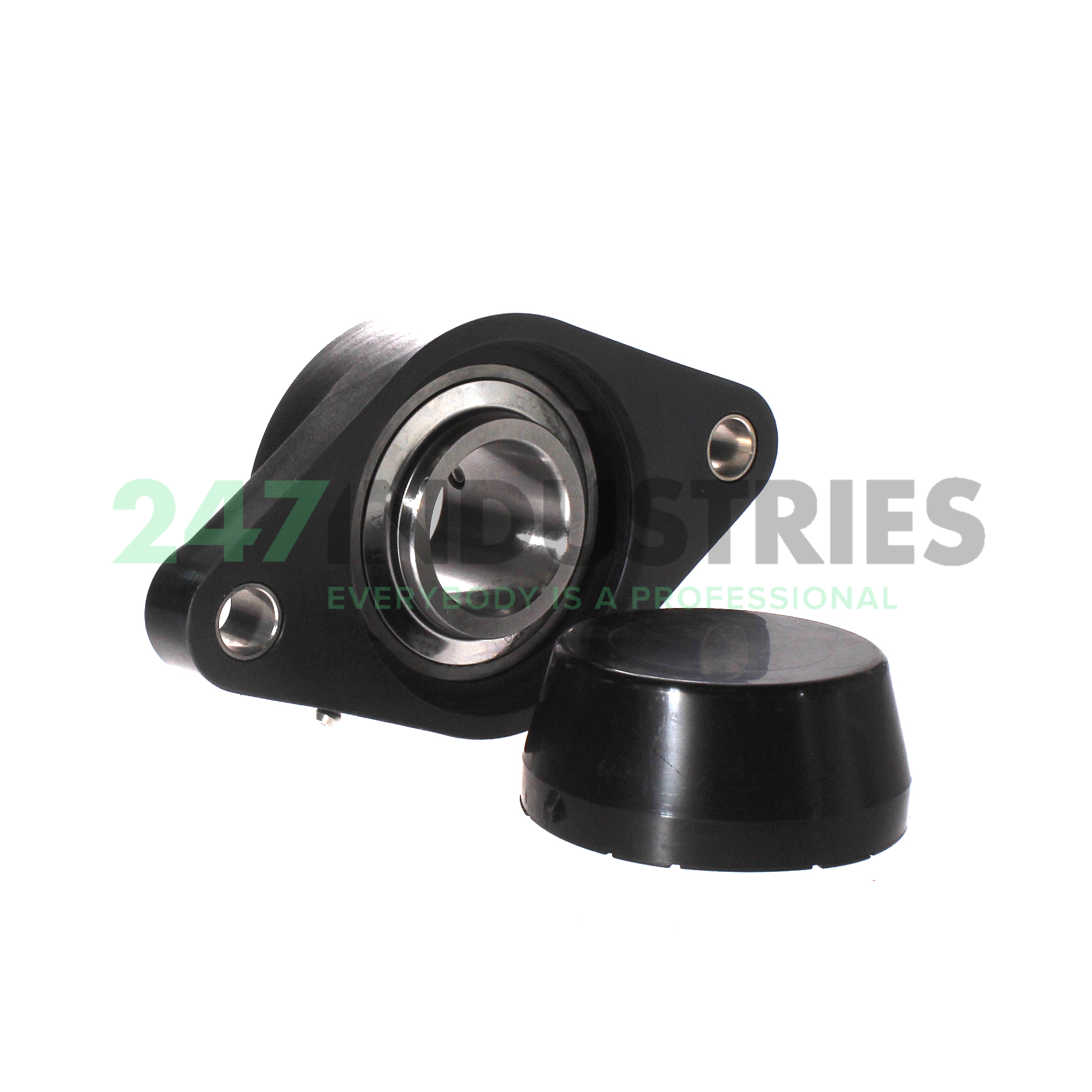

RCJTY40-TV-VA-HLA INA

Housing unit

Stock
15 pcs available for shipment on Mon 28 Jul
Brand INA
Article number RCJTY40-TV-VA-HLA INA
Inside diameter 40mm
Outside diameter 178mm
Width 50,9mm
Product description

The RCJTY40-TV-VA-HLA INA is a housing unit. The components of this bearing and housing assembly are matched to each other for reliable operation. This complete set is ready for use and easy to install. Housings simplify the installation of the bearing and shaft. Additionally, the bearing is supported and protected by the housing. Performing maintenance becomes easier while extending the bearing's lifespan.

Help with this product

Downloads and links

Similar to: RCJTY40-TV-VA-HLA INA

Product
Dimensions/Properties
Stock
Price ex VAT
F2BC40M-TPSS SKF
F2BC40M-TPSS SKF
Available soon
€ 203,94 ex VAT
  • Inside diameter 40mm
  • Outside diameter 178mm
  • Width 50,9mm
F2BC40M-TPSS SKF
Available soon

available soon
€ 203,94 ex VAT
F2B-SCEZ-40M-PCR Dodge
F2B-SCEZ-40M-PCR Dodge
Guaranteed same day shipment on orders placed before 18:00h (CET)
€ 151,69 ex VAT
  • Inside diameter 40,00mm
  • Outside diameter 178,00mm
  • Width 50,90mm
F2B-SCEZ-40M-PCR Dodge
Guaranteed same day shipment on orders placed before 18:00h (CET)

5 pcs
€ 151,69 ex VAT

Product specifications

All dimensions

  1. Inner (d) MM 40
  2. Outer (D) MM 178
  3. Width (B) MM 50,9
  4. Inner (d) Inch 1.5748
  5. Outer (D) Inch 7.0079
  6. Width (B) Inch 2.0039
  7. Flange width (L) mm 100
  8. Height flange (H) mm 175
  9. Total height unit (U) mm 51,7

Suffix description

  1. TV Plastic Housing
  2. VA Stainless Steel
  3. HLA Factory Location Code, No Additional Meaning. Can Be Used As Standard

Technical details

  1. Availability 15 pcs on Mon 28 Jul
  2. Brand INA
  3. Item number RCJTY40-TV-VA-HLA INA
  4. Also known as 0517327340000
    127567
    C2F40SS
    F2BC40M-TPSS
    F2B-SCBEZ-40M-PCR
    F-UC208D1/LP03 + FLR208D1
    F-UCFLR208/LP03
    MRC.C2F40SS
    MUC208 + NFL208SB
    MUCD208
    PSFT40CR
    RCJTY40-TV-VA
    UC208S6 + VFL208
    UCVFL208S6
    YAR208-2RFGR/HV+FYTWK508L
  5. EAN 4054366714992
  6. Category Housing and Bearing (assembly)

Weight and Dimensions

  1. Weight (kg) 0.8

Product Properties

  1. Seal 2GU
  2. Lubrication Food Grease
  3. Special Treatment Stainless Steel Bearing

Data from Schaeffler (medias)

  1. Radial Static Load Rating C0r (N) 18900
  2. Radial Dynamic Load Rating Cr (N) 31500
  3. Load carrying capacity (housing) (C 0r G) 14900
  4. ECLASS number 23-05-16-02
  5. ECLASS2 number 23-05-16-02
  6. Medias description Flanged housing unit RCJTY..-TV-VA
