RCJTY35-TV-VA-HLA INA

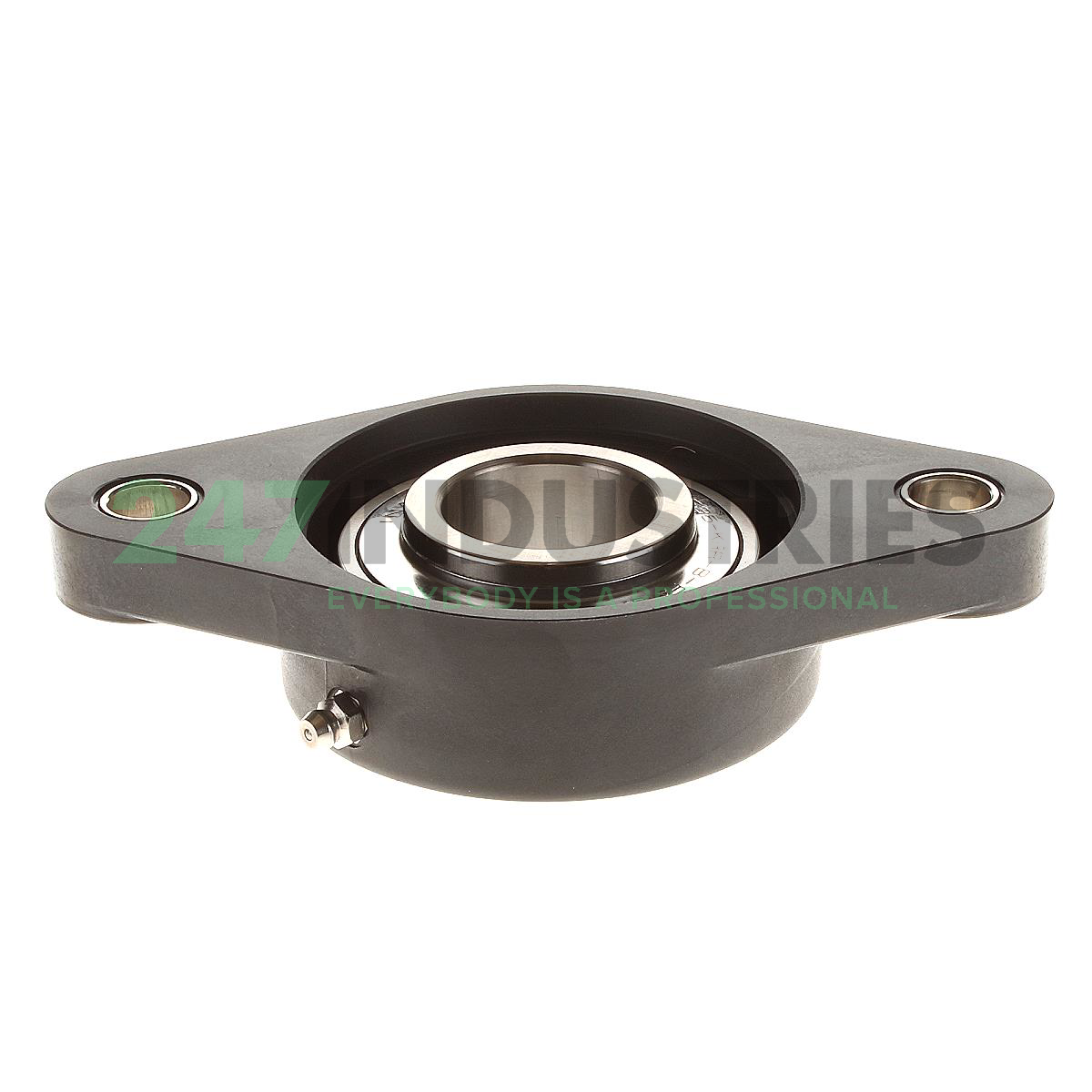

Housing unit

Stock
21 pcs in stock and ready for shipment
Brand INA
Article number RCJTY35-TV-VA-HLA INA
Inside diameter 35,00mm
Outside diameter 164,00mm
Width 45,00mm
Product description

The RCJTY35-TV-VA-HLA INA is a housing unit. The components of this bearing and housing assembly are matched to each other for reliable operation. This complete set is ready for use and easy to install. Housings simplify the installation of the bearing and shaft. Additionally, the bearing is supported and protected by the housing. Performing maintenance becomes easier while extending the bearing's lifespan.

Read more Show less
Help with this product

Downloads and links

Similar to: RCJTY35-TV-VA-HLA INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 35,00
  2. Outer (D) MM 164,00
  3. Width (B) MM 45,00
  4. Inner (d) Inch 1.3780
  5. Outer (D) Inch 6.4567
  6. Width (B) Inch 1.7717
  7. Flange width (L) mm 90,00
  8. Height flange (H) mm 163,00
  9. Total height unit (U) mm 43,40

Suffix description

  1. TV Plastic Housing
  2. VA Stainless Steel
  3. HLA Factory Location Code, No Additional Meaning. Can Be Used As Standard

Technical details

  1. Availability 21 pcs
  2. Brand INA
  3. Item number RCJTY35-TV-VA-HLA INA
  4. Also known as 0517325800000
    127566
    C2F35SS
    F2BC35M-TPSS
    F2B-SCEZ-35M-PCR
    F-UC207D1/LP03+FLR207D1
    F-UCFLR207/LP03
    MRC.C2F35SS
    MUC207 + NFL207SB
    MUCD207
    PSFT35CR
    RCJTY35TN NA
    RCJTY35-TV-VA
    UC207S6 + VFL207
    UCVFL207S6
    YAR207-2RF/HV + FYTWK507Y
  5. EAN 4054366714985
  6. Category Housing and Bearing (assembly)

Weight and Dimensions

  1. Weight (kg) 0.63

Product Properties

  1. Seal 2GU
  2. Lubrication Food Grease
  3. Special Treatment Stainless Steel Bearing

Data from Schaeffler (medias)

  1. Radial Static Load Rating C0r (N) 14600
  2. Radial Dynamic Load Rating Cr (N) 24600
  3. Basic static load rating, radial (C 0r) "14600.0000"
  4. Load carrying capacity (housing) (C 0r G) "14900.0000"
  5. ECLASS number 23-05-16-02
  6. ECLASS2 number 23-05-16-02
  7. Medias description Flanged housing unit RCJTY..-TV-VA
