RCJTY30-XL-N INA

Housing unit

Stock
191 pcs in stock and ready for shipment
Brand INA
Article number RCJTY30-XL-N INA
Inside diameter 30,00mm
Outside diameter 141,50mm
Width 42,20mm
Product description

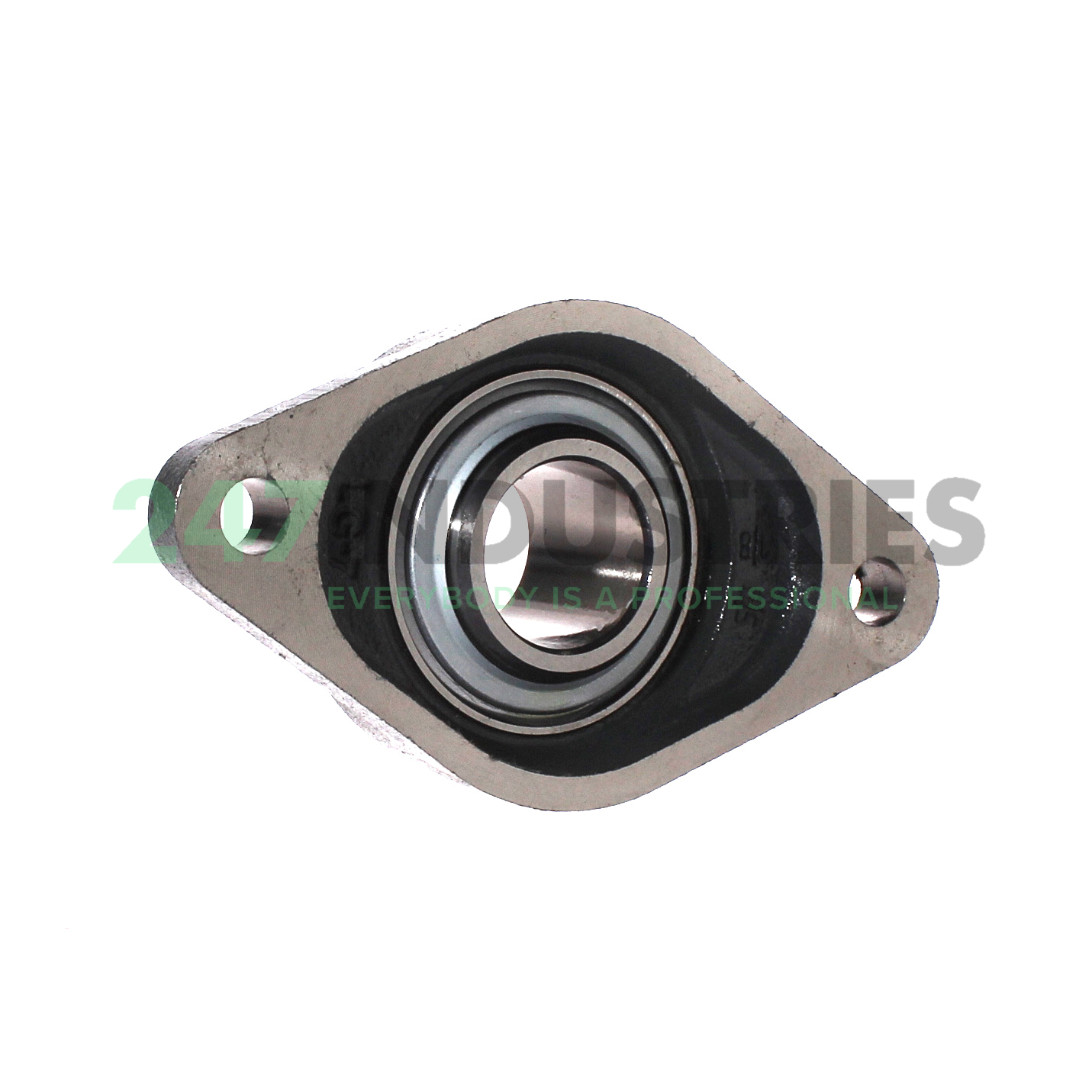

The RCJTY30-XL-N INA is a housing unit. The components of this bearing and housing assembly are matched to each other for reliable operation. This complete set is ready for use and easy to install. Housings simplify the installation of the bearing and shaft. Additionally, the bearing is supported and protected by the housing. Performing maintenance becomes easier while extending the bearing's lifespan.

Read more Show less
Help with this product

Downloads and links

Similar to: RCJTY30-XL-N INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 30,00
  2. Outer (D) MM 141,50
  3. Width (B) MM 42,20
  4. Inner (d) Inch 1.1811
  5. Outer (D) Inch 5.5709
  6. Width (B) Inch 1.6614
  7. Flange width (L) mm 80,00
  8. Height flange (H) mm 142,00
  9. Total height unit (U) mm 42,20

Suffix description

  1. XL X-Life
  2. N Cast Iron Housing With Undercut Slot For End Caps

Technical details

  1. Availability 191 pcs
  2. Brand INA
  3. Item number RCJTY30-XL-N INA
  4. Also known as 0008687790000
    RCJTY30-N
  5. EAN 4012802796353
  6. Category Housing and Bearing (assembly)

Weight and Dimensions

  1. Weight (kg) 0.853

Product Properties

  1. Seal 2F - Standard Seal for Y-bearings
  2. Lubrication Standard Lubrication
  3. Special Treatment No Special Treatment

Data from Schaeffler (medias)

  1. Radial Static Load Rating C0r (N) 11300
  2. Radial Dynamic Load Rating Cr (N) 20700
  3. Basic static load rating, radial (C 0r) "11300.0000"
  4. ECLASS number 23-05-16-02
  5. ECLASS2 number 23-05-16-02
  6. Medias description Housing units RCJTY, two-bolt flanged housing units, cast iron, grub screws in inner ring, R seals

Downloads and links

  1. X-life brochure X-life brochure
  2. Link to manufacturer Link to manufacturer
