RCJTL40-N INA

Housing unit

Stock
not in stock
Brand INA
Article number RCJTL40-N INA
Inside diameter 40mm
Product description

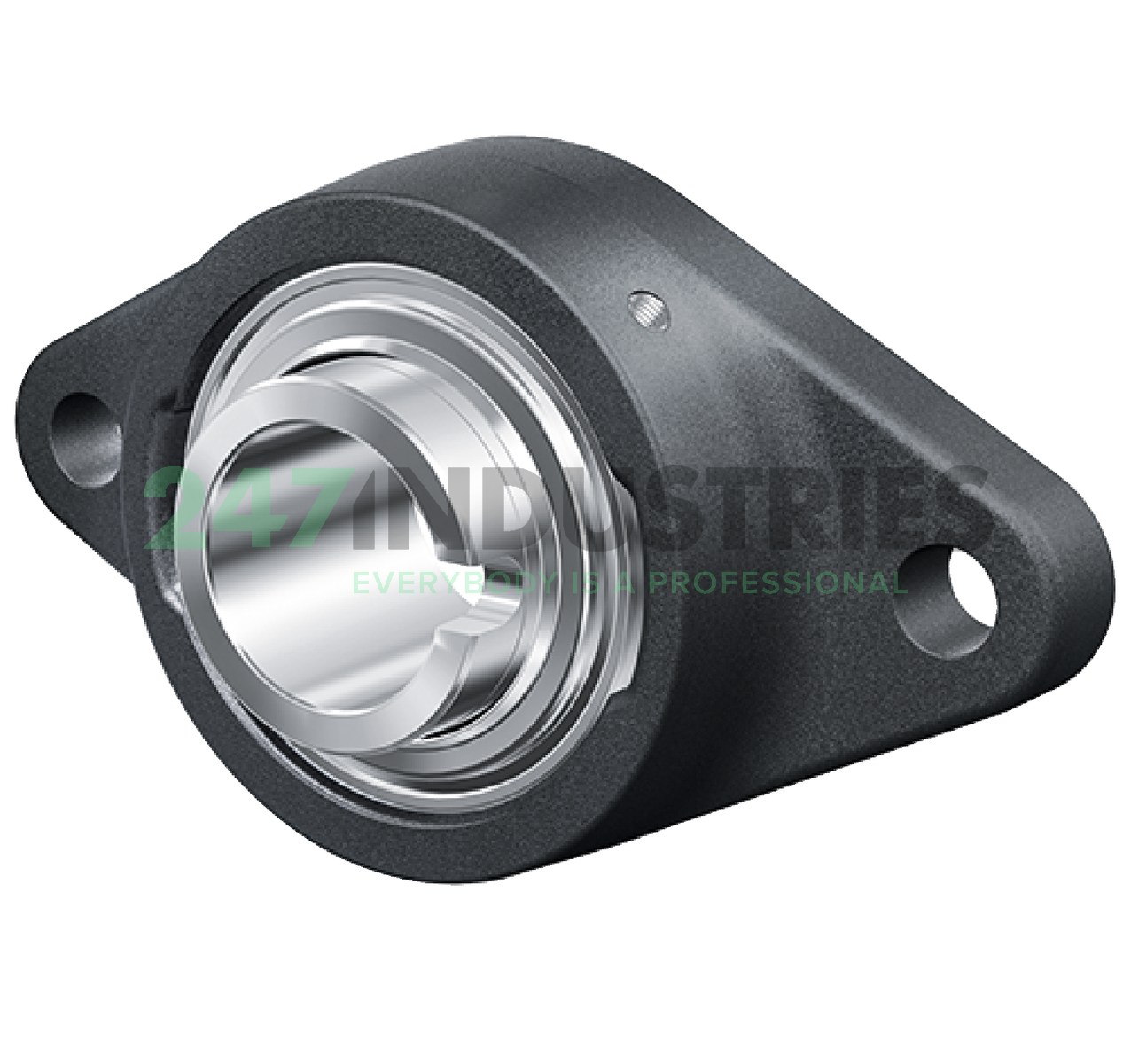

The RCJTL40-N INA is a housing unit. The components of this bearing and housing assembly are matched to each other for reliable operation. This complete set is ready for use and easy to install. Housings simplify the installation of the bearing and shaft. Additionally, the bearing is supported and protected by the housing. Performing maintenance becomes easier while extending the bearing's lifespan.

Help with this product

Downloads and links

Similar to: RCJTL40-N INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 40
  2. Flange width (L) mm 105
  3. Height flange (H) mm 172
  4. Total height unit (U) mm 51

Suffix description

  1. N Cast Iron Housing With Undercut Slot For End Caps

Technical details

  1. Availability 0 pcs
  2. Brand INA
  3. Item number RCJTL40-N INA
  4. Also known as 0501802400000
  5. EAN 4012802825855
  6. Category Housing and Bearing (assembly)

Weight and Dimensions

  1. Weight (kg) 1.52

Product Properties

  1. Seal 2RS - Rubber Seal on Two Sides
  2. Lubrication Standard Lubrication
  3. Special Treatment No Special Treatment

Data from Schaeffler (medias)

  1. Radial Static Load Rating C0r (N) 19800
  2. Radial Dynamic Load Rating Cr (N) 34500
  3. ECLASS number 23-05-16-02
  4. ECLASS2 number 23-05-16-02
  5. Medias description Flanged housing unit RCJTL..-N
