RCJT35-XL-N INA

Housing unit

Stock
19 pcs in stock and ready for shipment
Brand INA
Article number RCJT35-XL-N INA
Inside diameter 35,00mm
Outside diameter 126,00mm
Width 44,80mm
Product description

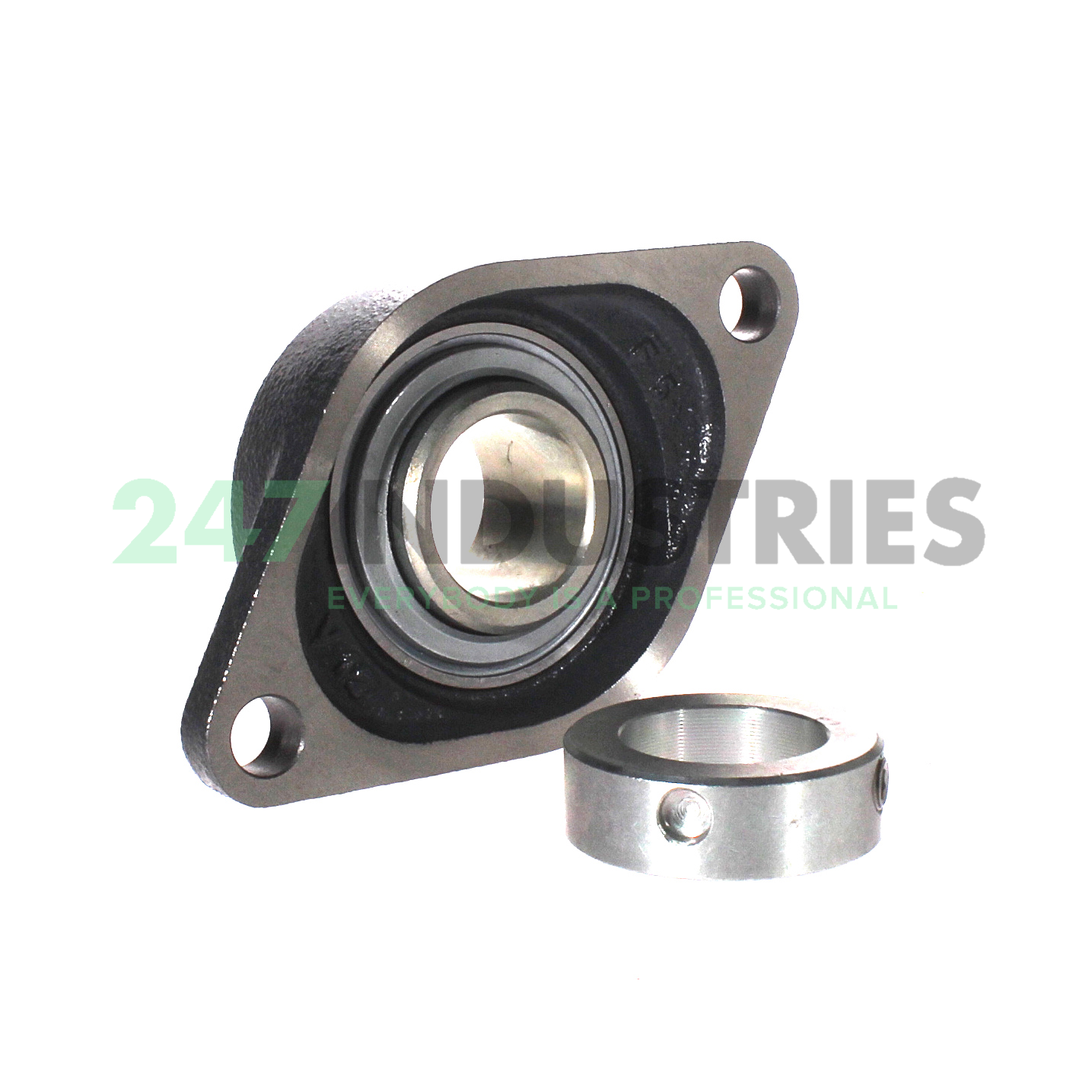

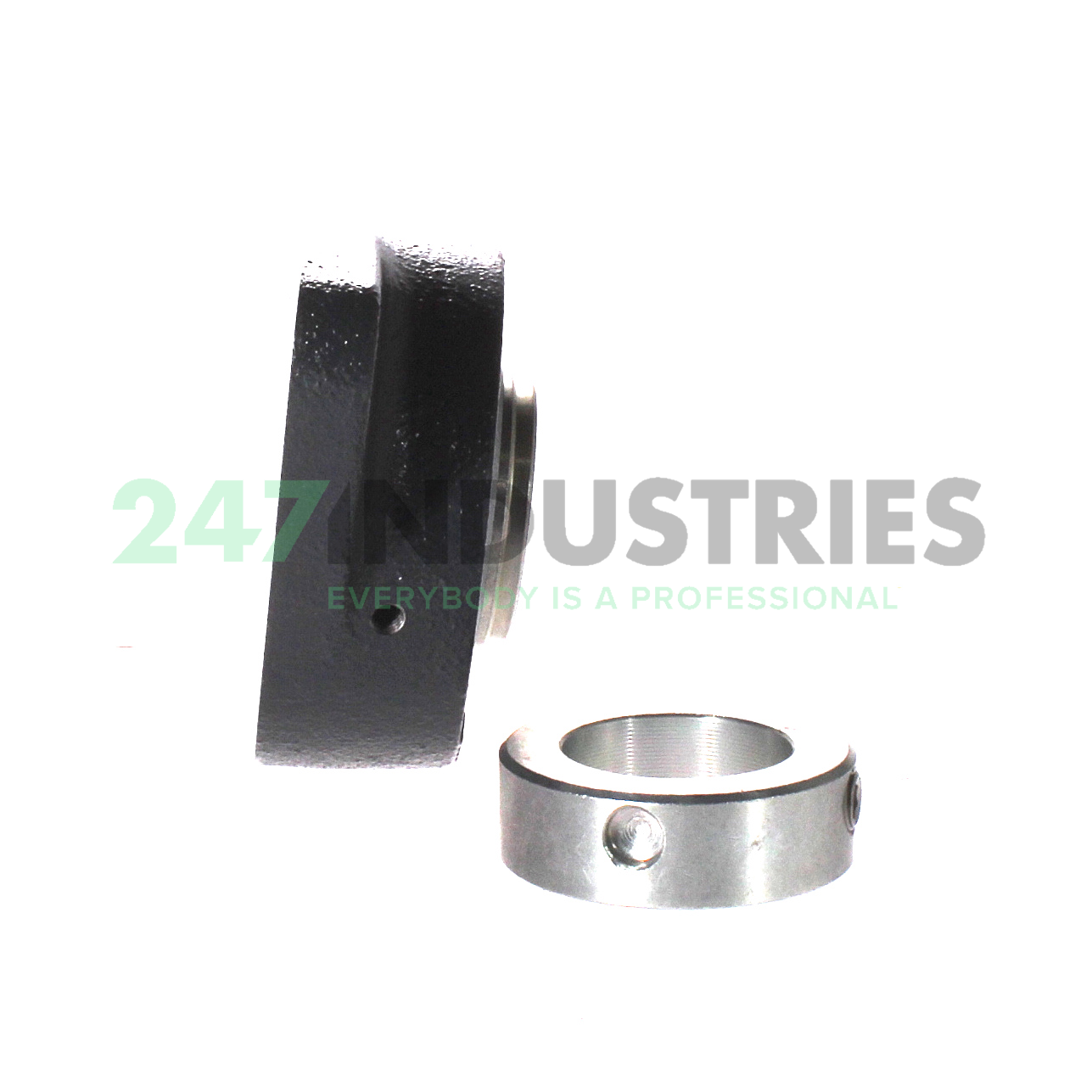

The RCJT35-XL-N INA is a housing unit. The components of this bearing and housing assembly are matched to each other for reliable operation. This complete set is ready for use and easy to install. Housings simplify the installation of the bearing and shaft. Additionally, the bearing is supported and protected by the housing. Performing maintenance becomes easier while extending the bearing's lifespan.

Read more Show less
Help with this product

Downloads and links

Similar to: RCJT35-XL-N INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 35,00
  2. Outer (D) MM 126,00
  3. Width (B) MM 44,80
  4. Inner (d) Inch 1.3780
  5. Outer (D) Inch 4.9606
  6. Width (B) Inch 1.7638
  7. Flange width (L) mm 92,00
  8. Height flange (H) mm 155,00
  9. Total height unit (U) mm 53,50

Suffix description

  1. XL X-Life
  2. N Cast Iron Housing With Undercut Slot For End Caps

Technical details

  1. Availability 19 pcs
  2. Brand INA
  3. Item number RCJT35-XL-N INA
  4. Also known as 0096442530000
    RCJT35-N
  5. EAN 4012802836745
  6. Category Housing and Bearing (assembly)

Weight and Dimensions

  1. Weight (kg) 1.197

Product Properties

  1. Seal 2F - Standard Seal for Y-bearings
  2. Lubrication Standard Lubrication
  3. Special Treatment No Special Treatment

Data from Schaeffler (medias)

  1. Radial Static Load Rating C0r (N) 15300
  2. Radial Dynamic Load Rating Cr (N) 27500
  3. Basic static load rating, radial (C 0r) "15300.0000"
  4. ECLASS number 23-05-16-02
  5. ECLASS2 number 23-05-16-02
  6. Medias description Housing units RCJT, two-bolt flanged housing units, cast iron, eccentric locking collar, R seals
