RCJO40-XL INA

€ 80,55 ex VAT
€ 97,47 in VAT
€ 97,47 in VAT
€ 80,55 ex VAT

Guaranteed same day shipment on orders placed before 18.00h (CET)
This product is available from stock
Worldwide shipping from the Netherlands
30 days return policy
Track your order through Track & Trace
iDeal, Mastercard, Visa, PayPal

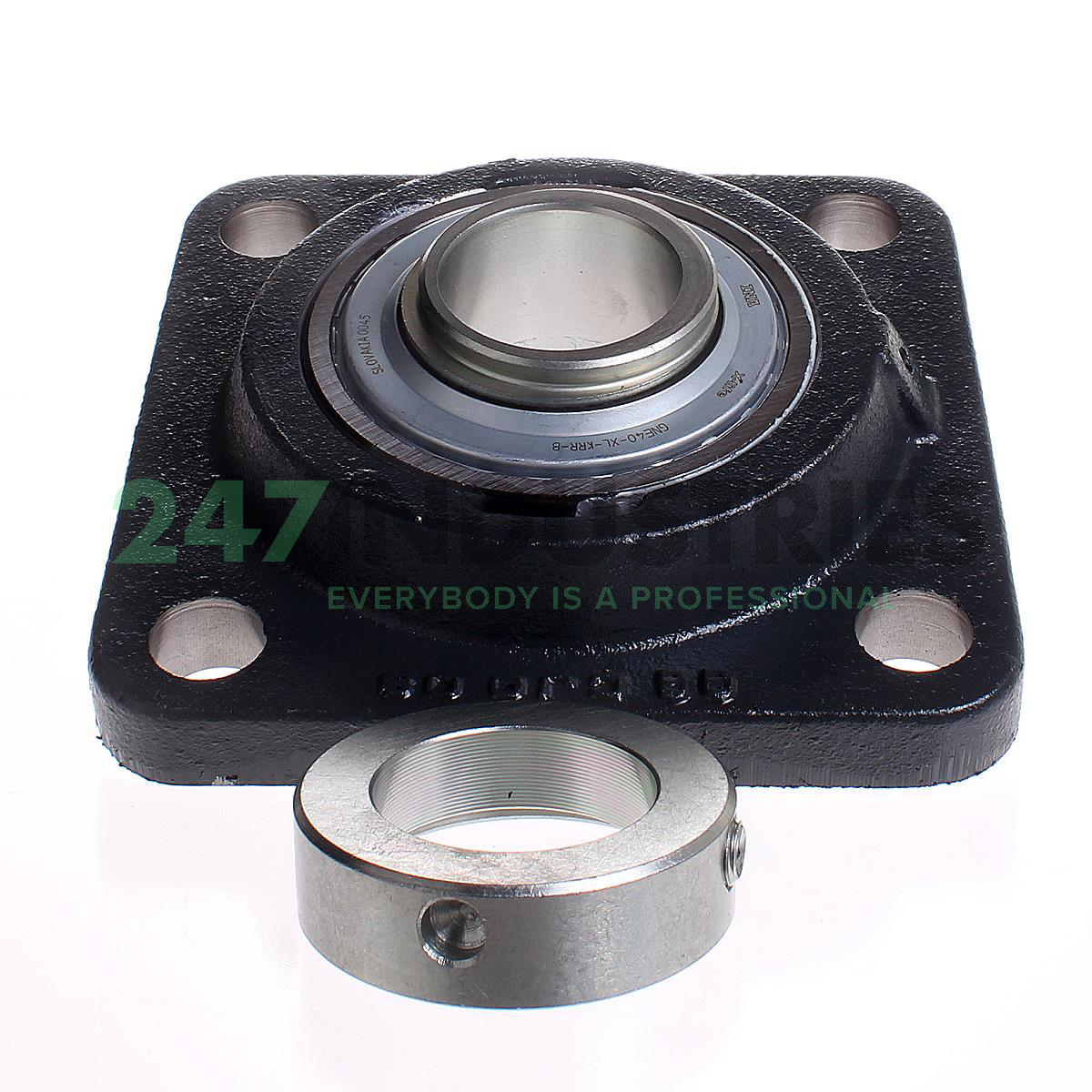

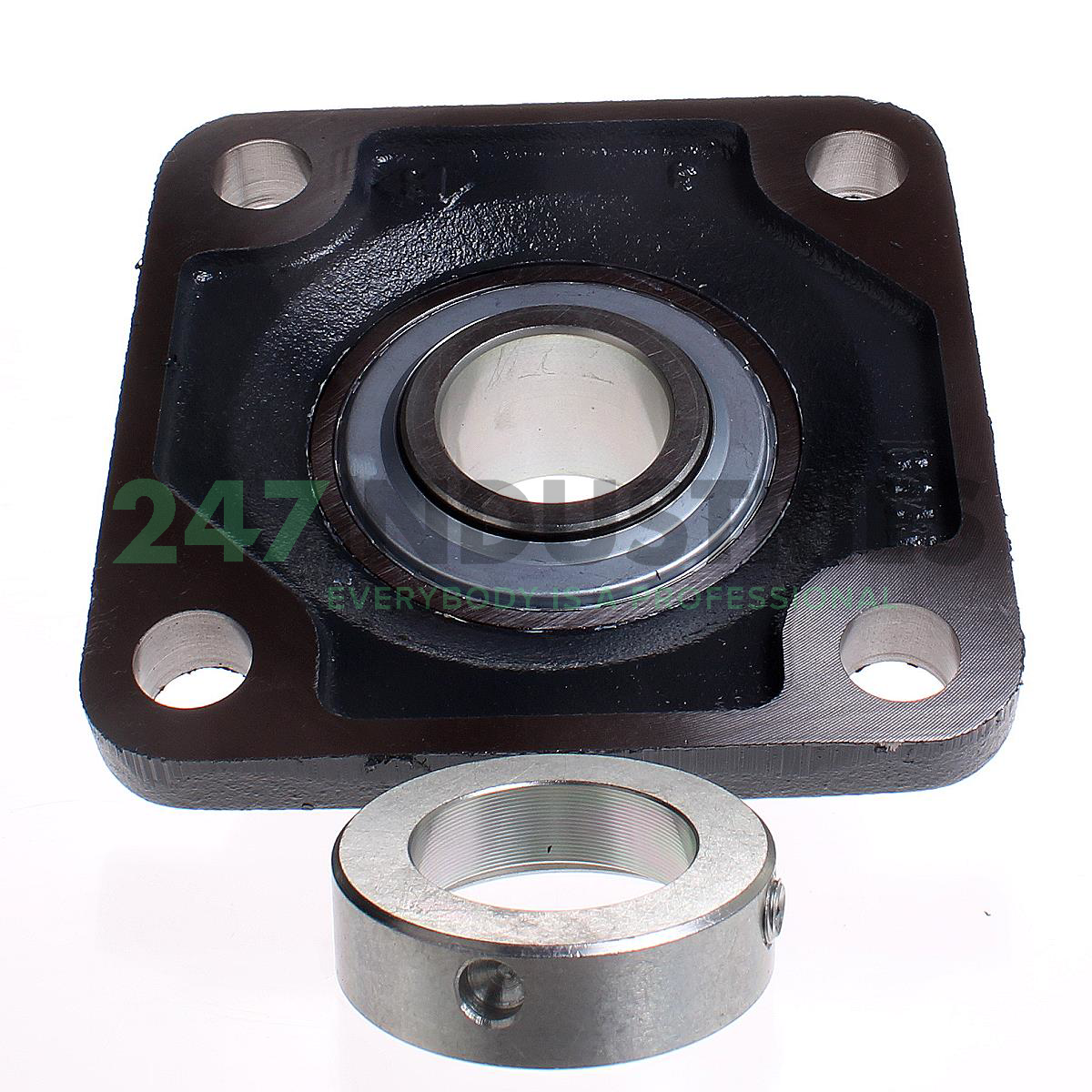

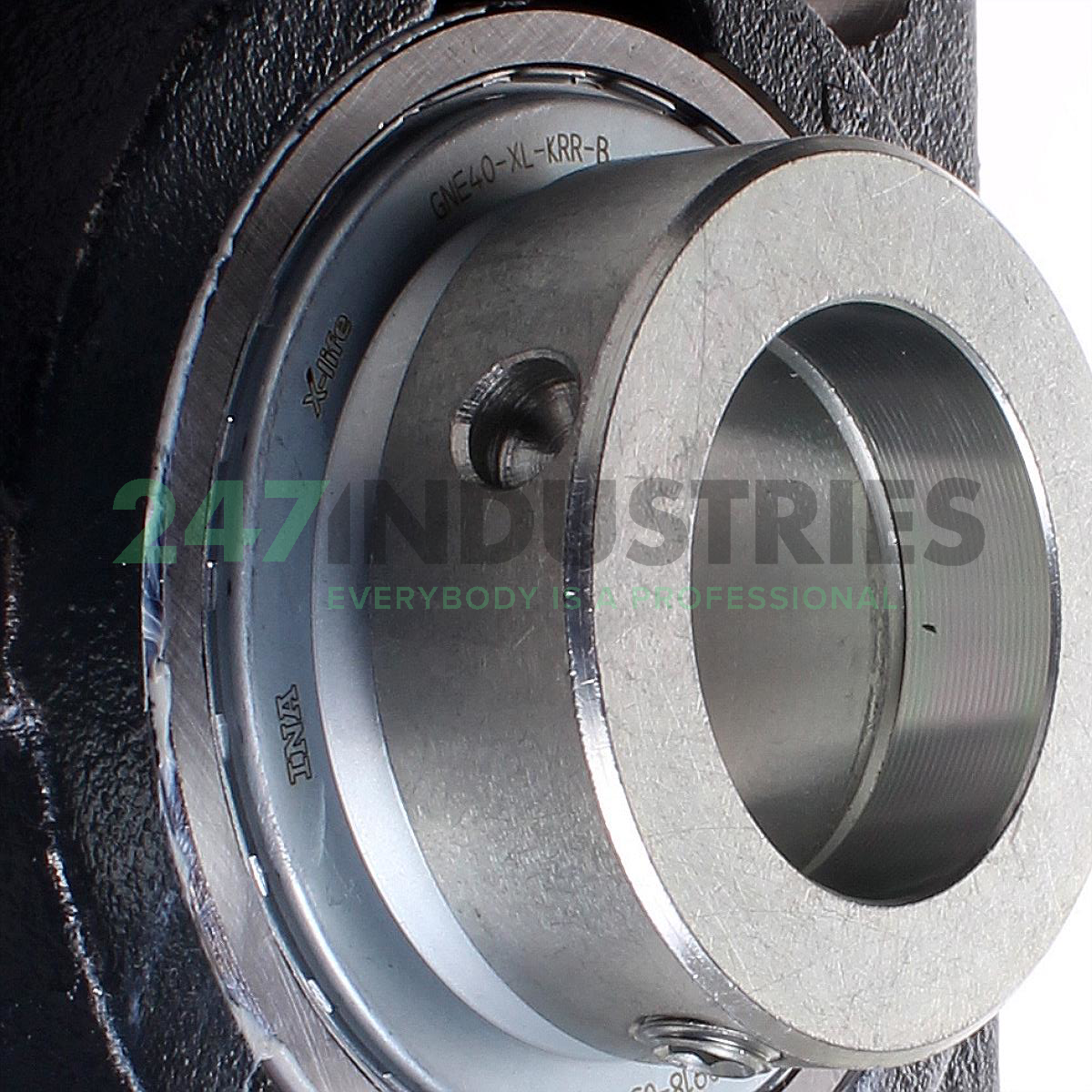

RCJO40-XL INA

Housing and Bearing (assembly)

Stock
123 pcs in stock and ready for shipment
Brand INA
Article number RCJO40-XL INA
Inside diameter 40mm
Outside diameter 150mm
Width 59,6mm
Product description

The RCJO40-XL INA is a housing unit. The components of this bearing and housing assembly are matched to each other for reliable operation. This complete set is ready for use and easy to install. Housings simplify the installation of the bearing and shaft. Additionally, the bearing is supported and protected by the housing. Performing maintenance becomes easier while extending the bearing's lifespan.

Read more Show less
Help with this product

Downloads and links

Similar to: RCJO40-XL INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 40
  2. Outer (D) MM 150
  3. Width (B) MM 59,6
  4. Inner (d) Inch 1.5748
  5. Outer (D) Inch 5.9055
  6. Width (B) Inch 2.3465
  7. Flange width (L) mm 150
  8. Total height unit (U) mm 59,6

Suffix description

  1. XL X-Life

Technical details

  1. Availability 123 pcs
  2. Brand INA
  3. Item number RCJO40-XL INA
  4. Also known as 0009467100000
    GNE40KRRB + CJO08
    RCJO40
  5. EAN 4012802803129
  6. Category Housing and Bearing (assembly)

Weight and Dimensions

  1. Weight (kg) 3.1

Product Properties

  1. Seal 2F - Standard Seal for Y-bearings
  2. Lubrication Standard Lubrication
  3. Special Treatment No Special Treatment

Data from Schaeffler (medias)

  1. Radial Static Load Rating C0r (N) 26000
  2. Radial Dynamic Load Rating Cr (N) 47000
  3. ECLASS number 23-05-16-02
  4. ECLASS2 number 23-05-16-02
  5. Medias description Housing units RCJO, four-bolt flanged housing units, cast iron, eccentric locking collar, series 63, R seals

Downloads and links

  1. X-life brochure X-life brochure
  2. Link to manufacturer Link to manufacturer
Show all details Show less
