RAY25-XL INA

€ 24,21 ex VAT
€ 29,29 incl. VAT
€ 29,29 incl. VAT
€ 24,21 ex VAT
Guaranteed same day shipment on orders placed before 17.00h (CEST)
This product is available from stock
Worldwide shipping from the Netherlands
30 days return policy
Track your order through Track & Trace
iDeal, Mastercard, Visa, PayPal

RAY25-XL INA

Housing unit

Stock
19 pcs in stock and ready for shipment
Brand INA
Article number RAY25-XL INA
Inside diameter 25,00mm
Outside diameter 95,00mm
Width 27,20mm
Product description

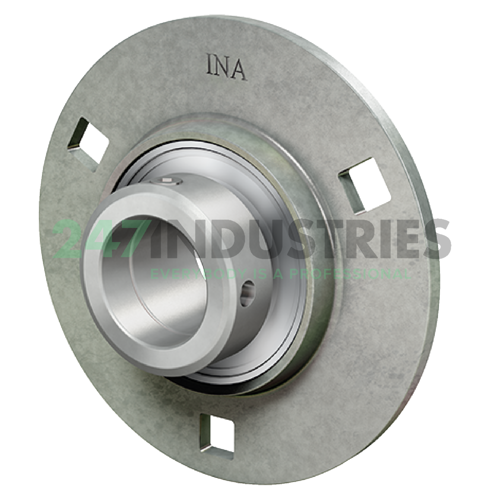

The RAY25-XL INA is a housing unit. The components of this bearing and housing assembly are matched to each other for reliable operation. This complete set is ready for use and easy to install. Housings simplify the installation of the bearing and shaft. Additionally, the bearing is supported and protected by the housing. Performing maintenance becomes easier while extending the bearing's lifespan.

Read more Show less
Help with this product

Downloads and links

Similar to: RAY25-XL INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 25,00
  2. Outer (D) MM 95,00
  3. Width (B) MM 27,20
  4. Inner (d) Inch 0.9843
  5. Outer (D) Inch 3.7402
  6. Width (B) Inch 1.0709
  7. Height flange (H) mm 95,00
  8. Total height unit (U) mm 21,50

Suffix description

  1. XL X-Life

Technical details

  1. Availability 19 pcs
  2. Brand INA
  3. Item number RAY25-XL INA
  4. Also known as 0008329600000
    AY25-XL-NPP-B+FLAN52-MSB
    PF25RM
    RAY25
    SB205 + PF205
    SBPF205
    SLFE25A
    UB205 + PF205
    UBPF205
    YAT205 + PF52
  5. EAN 4012802790757
  6. Category Housing and Bearing (assembly)

Weight and Dimensions

  1. Weight (kg) 0.33

Product Properties

  1. Seal 2F - Standard Seal for Y-bearings
  2. Lubrication Standard Lubrication
  3. Special Treatment No Special Treatment

Data from Schaeffler (medias)

  1. Radial Static Load Rating C0r (N) 7800
  2. Radial Dynamic Load Rating Cr (N) 14900
  3. Basic static load rating, radial (C 0r) "7800.0000"
  4. Load carrying capacity (housing) (C 0r G) "3650.0000"
  5. ECLASS number 23-05-16-02
  6. ECLASS2 number 23-05-16-02
  7. Medias description Housing units RAY, three/four-bolt flanged housing units, sheet steel, grub screws in inner ring, P seals

Downloads and links

  1. X-life brochure X-life brochure
  2. Link to manufacturer Link to manufacturer
