RATY30-XL INA

Housing and Bearing (assembly)

Stock
104 pcs in stock and ready for shipment
Brand INA
Article number RATY30-XL INA
Inside diameter 30mm
Outside diameter 112mm
Width 30,2mm
Product description

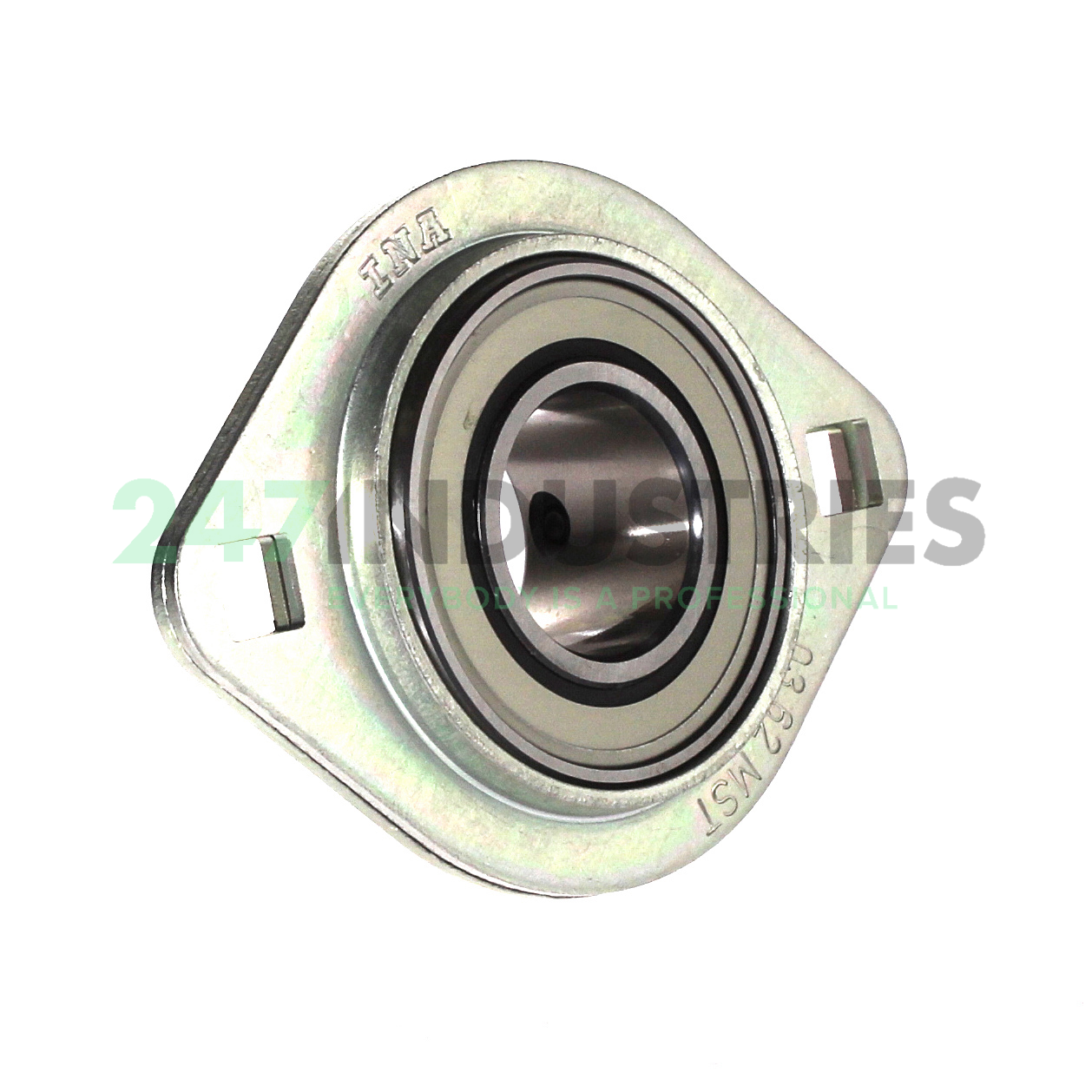

The RATY30-XL INA is a housing unit. The components of this bearing and housing assembly are matched to each other for reliable operation. This complete set is ready for use and easy to install. Housings simplify the installation of the bearing and shaft. Additionally, the bearing is supported and protected by the housing. Performing maintenance becomes easier while extending the bearing's lifespan.

Read more Show less
Help with this product

Downloads and links

Similar to: RATY30-XL INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 30
  2. Outer (D) MM 112
  3. Width (B) MM 30,2
  4. Inner (d) Inch 1.1811
  5. Outer (D) Inch 4.4094
  6. Width (B) Inch 1.189
  7. Flange width (L) mm 84
  8. Height flange (H) mm 112,7
  9. Total height unit (U) mm 23,5

Suffix description

  1. XL X-Life

Technical details

  1. Availability 104 pcs
  2. Brand INA
  3. Item number RATY30-XL INA
  4. Also known as 0008715080000
    AY30-XL-NPP-B+FLAN62-MST
    PFT30RM
    RATY30
    SB206 + PFL206
    SBPFL206
    SLFL30A
    UB206 + PFL206
    UBPFL206
    YAT206 + PFT62
  5. EAN 4012802796025
  6. Category Housing and Bearing (assembly)

Weight and Dimensions

  1. Weight (kg) 0.41

Product Properties

  1. Seal 2F - Standard Seal for Y-bearings
  2. Lubrication Standard Lubrication
  3. Special Treatment No Special Treatment

Data from Schaeffler (medias)

  1. Radial Static Load Rating C0r (N) 11300
  2. Radial Dynamic Load Rating Cr (N) 20700
  3. Load carrying capacity (housing) (C 0r G) 5000
  4. Load carrying capacity (housing) (C g) 5000
  5. ECLASS number 23-05-16-02
  6. ECLASS2 number 23-05-16-02
  7. Medias description Housing units RATY, two-bolt flanged housing units, sheet steel, grub screws in inner ring, P seals

Downloads and links

  1. X-life brochure X-life brochure
  2. Link to manufacturer Link to manufacturer
