RASEY16-XL INA

Name: RASEY16-XL INA
Brand: INA

€ 29,94 ex VAT

€ 36,22 incl. VAT

€ 29,94 ex VAT

	Guaranteed same day shipment on orders placed before 17.00h (CEST)
	This product is available from stock
	Worldwide shipping from the Netherlands
	30 days return policy
	Track your order through Track & Trace

RASEY16-XL INA

Housing unit

Stock	32 pcs in stock and ready for shipment
Brand	INA
Article number	RASEY16-XL INA
Inside diameter	16,00mm
Outside diameter	125,00mm
Width	27,40mm

Product description

The RASEY16-XL INA is a housing unit. The components of this bearing and housing assembly are matched to each other for reliable operation. This complete set is ready for use and easy to install. Housings simplify the installation of the bearing and shaft. Additionally, the bearing is supported and protected by the housing. Performing maintenance becomes easier while extending the bearing's lifespan.

Email us at: help@247industries.com Response within 24h

Downloads and links

Similar to: RASEY16-XL INA

Loading similair products

Product specifications

Inside diameter 16,00mm
Outside diameter 125,00mm
Width 27,40mm

All dimensions

Inner (d) MM 16,00
Outer (D) MM 125,00
Width (B) MM 27,40
Inner (d) Inch 0.6299
Outer (D) Inch 4.9213
Width (B) Inch 1.0787
Length total (L) mm 125,00
Height (H 2) mm 57,00

Suffix description

XL X-Life

Technical details

Availability 32 pcs
Brand INA
Item number RASEY16-XL INA
Also known as 0009828140000
RASEY16
EAN 4012802817720
Category Housing and Bearing (assembly)

Weight and Dimensions

Weight (kg) 0.45

Product Properties

Seal 2F - Standard Seal for Y-bearings
Lubrication Standard Lubrication
Special Treatment No Special Treatment

Data from Schaeffler (medias)

ECLASS number 23-05-16-01
ECLASS2 number 23-05-16-01

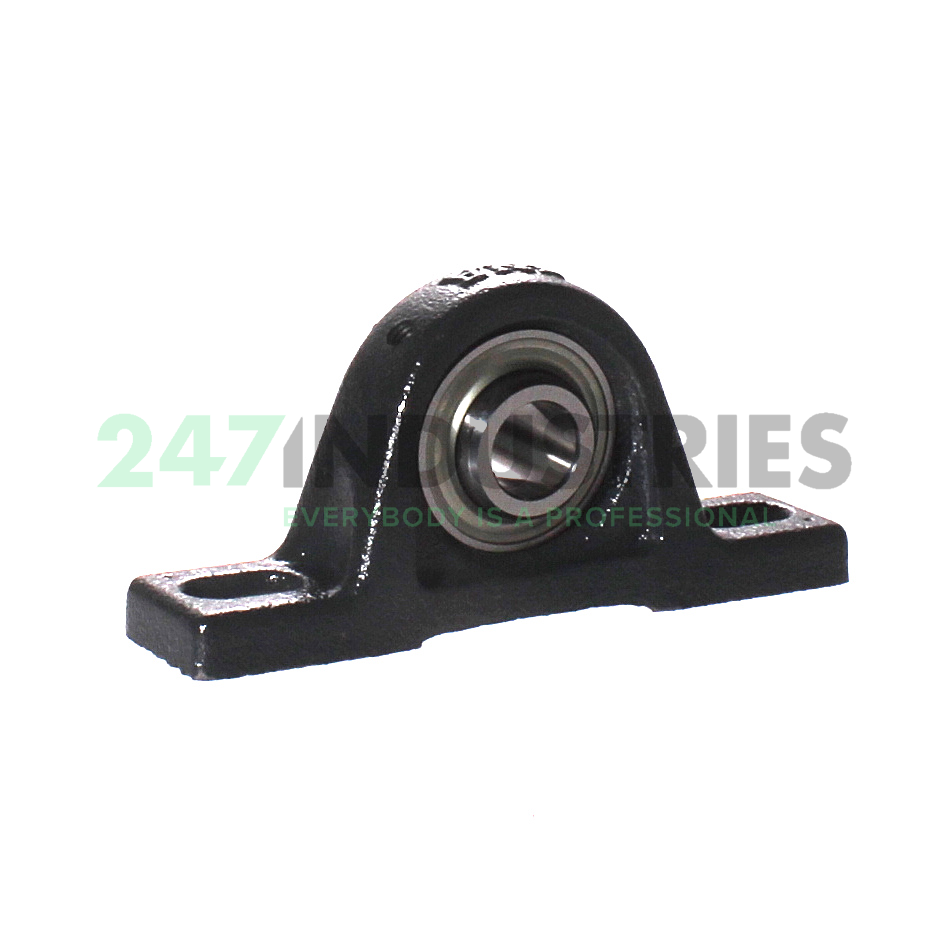

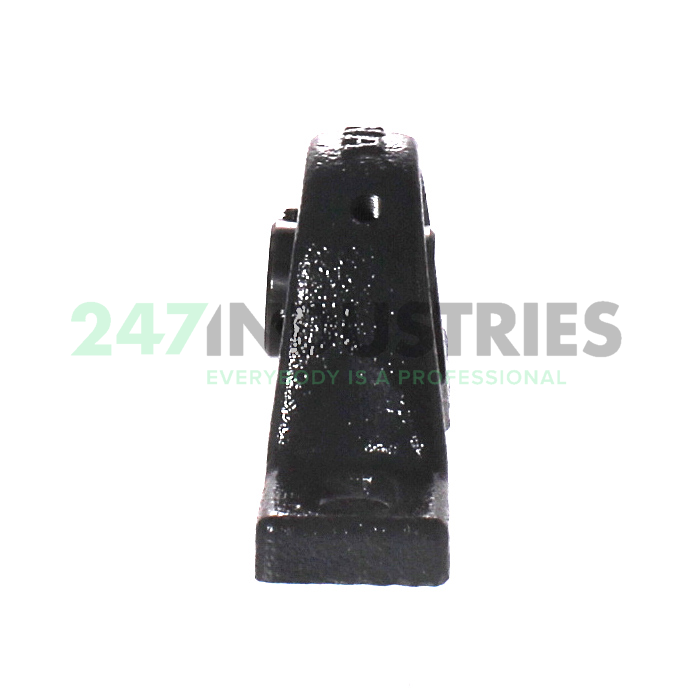

Medias description Plummer block housing units RASEY, cast iron housing, radial insert ball bearing with grub screws in inner ring, R seals
