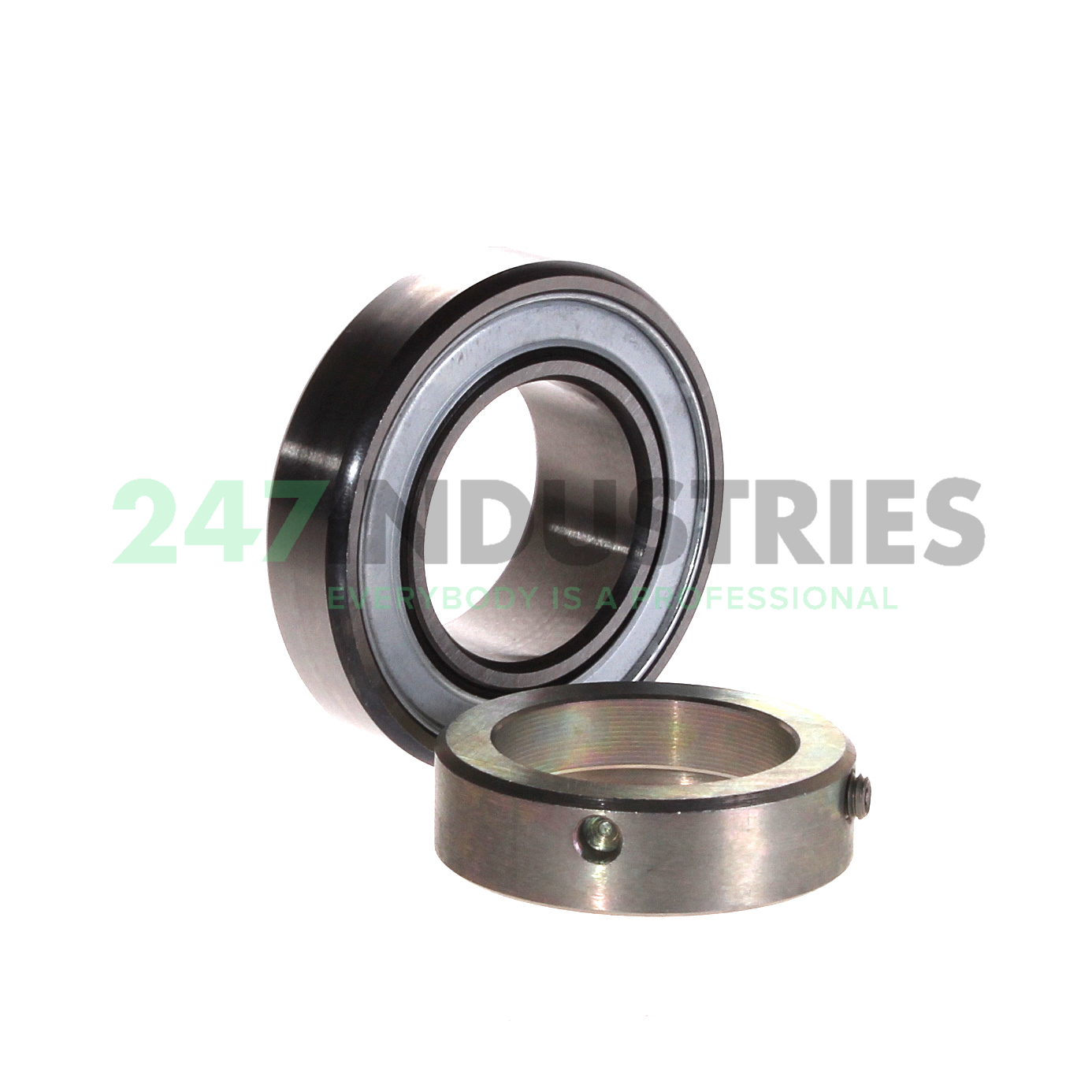

RALE30-XL-NPP-FA106 INA

All dimensions

1. Inner (d) MM 30
2. Outer (D) MM 55
3. Width (B) MM 26,5
4. Inner (d) Inch 1.1811
5. Outer (D) Inch 2.1654
6. Width (B) Inch 1.0433
7. Width (b) mm 18,5
8. Locking collar total width (B 1) mm 26,5

Suffix description

1. XL X-Life
2. NPP Lip Seals On Both Sides (P Type - Two Zinc-Plated Sheet Steel Washers With Intermediate NBR Part, Seal Lip Axially Preloaded)
3. FA106 Bearing Subjected To Special Noise Testing

Technical details

1. Availability 298 pcs
2. Brand INA
3. Item number RALE30-XL-NPP-FA106 INA
4. Also known as 0008433420000
   RALE30-NPP-FA106
   RALE30-XL-NPP

5. EAN 4012802787061
6. Category Bearings for Housings

Weight and Dimensions

1. Weight (kg) 0.17

Product Properties

1. Seal 2F - Standard Seal for Y-bearings
2. Lubrication Standard Lubrication
3. Special Treatment FA106

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 8300
2. Radial Dynamic Load Rating Cr (N) 14100
3. ECLASS number 23-05-08-02
4. ECLASS2 number 23-05-08-02
5. Medias description Radial insert ball bearings RALE..-NPP, cylindrical outer ring, location by eccentric locking collar, P seals on both sides
