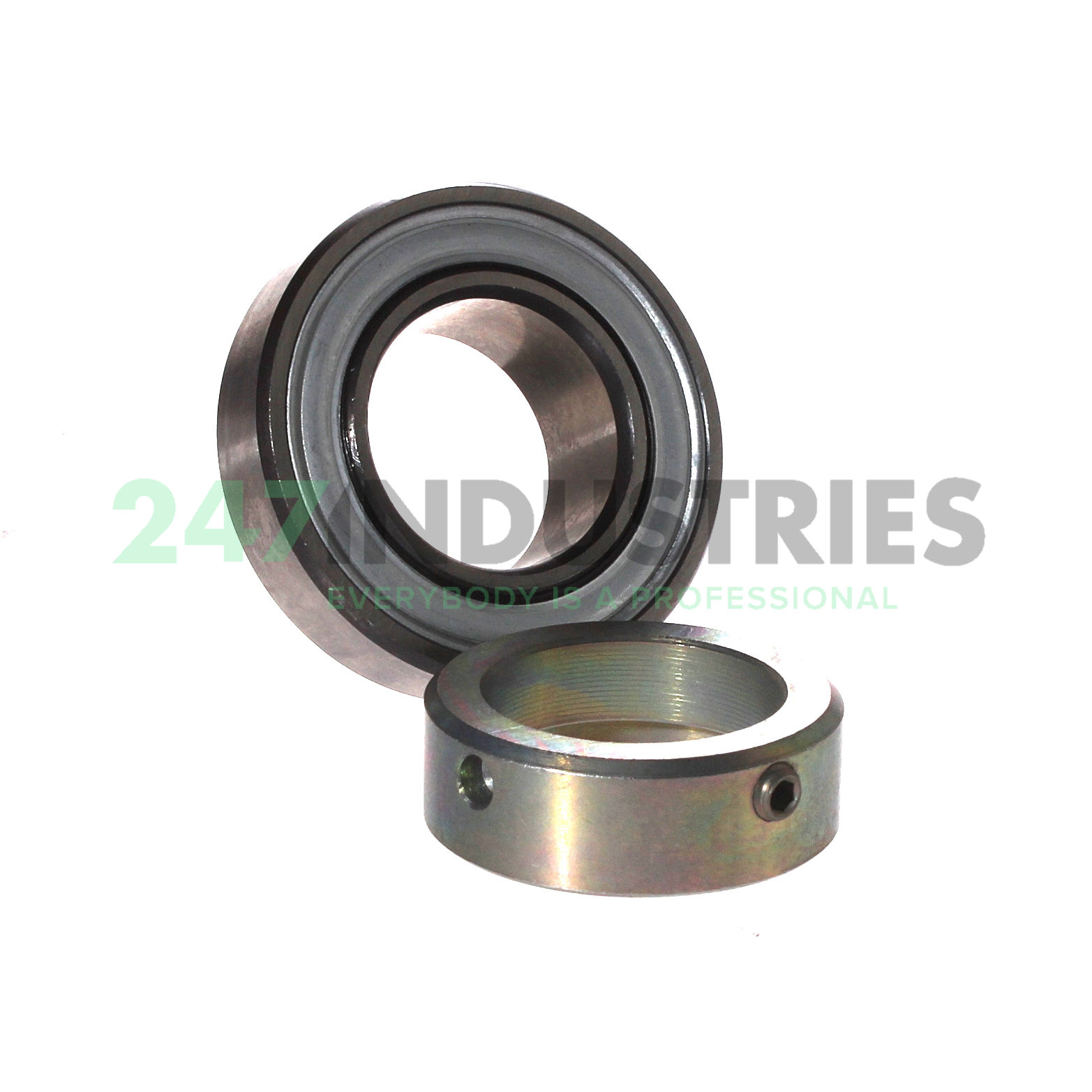

RALE25-XL-NPP INA

All dimensions

1. Inner (d) MM 25
2. Outer (D) MM 47
3. Width (B) MM 25,5
4. Inner (d) Inch 0.9843
5. Outer (D) Inch 1.8504
6. Width (B) Inch 1.0039
7. Width (b) mm 17,5
8. Locking collar total width (B 1) mm 25,5

Suffix description

1. XL X-Life
2. NPP Lip Seals On Both Sides (P Type - Two Zinc-Plated Sheet Steel Washers With Intermediate NBR Part, Seal Lip Axially Preloaded)
3. FA125.1 With Corrotect® Coating, Protected Against Corrosion

Technical details

1. Availability 255 pcs
2. Brand INA
3. Item number RALE25-XL-NPP INA
4. Also known as 0008177590000
   RALE25-NPP

5. EAN 4012802782035
6. Category Bearings for Housings

Weight and Dimensions

1. Weight (kg) 0.12

Product Properties

1. Seal 2F - Standard Seal for Y-bearings
2. Lubrication Standard Lubrication
3. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 5900
2. Radial Dynamic Load Rating Cr (N) 10700
3. ECLASS number 23-05-08-02
4. ECLASS2 number 23-05-08-02
5. Medias description Radial insert ball bearings RALE..-NPP, cylindrical outer ring, location by eccentric locking collar, P seals on both sides
