RAL012-NPP-FA106 INA

All dimensions

1. Inner (d) MM 19,05
2. Outer (D) MM 42
3. Width (B) MM 24,6
4. Inner (d) Inch 0.75
5. Outer (D) Inch 1.6535
6. Width (B) Inch 0.9685
7. Width (b) mm 16,7
8. Locking collar total width (B 1) mm 24,6

Suffix description

1. NPP Lip Seals On Both Sides (P Type - Two Zinc-Plated Sheet Steel Washers With Intermediate NBR Part, Seal Lip Axially Preloaded)
2. FA106 Bearing Subjected To Special Noise Testing

Technical details

1. Availability 189 pcs
2. Brand INA
3. Item number RAL012-NPP-FA106 INA
4. Also known as 0504181900000
   RAL012NPP
   RAL012-XL-NPP-FA106

5. EAN 4012802463132
6. Category Bearings for Housings

Weight and Dimensions

1. Weight (kg) 0.106

Product Properties

1. Seal 2F - Standard Seal for Y-bearings
2. Lubrication Standard Lubrication
3. Special Treatment FA106

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 5000
2. Radial Dynamic Load Rating Cr (N) 10000
3. ECLASS number 23-05-08-02
4. ECLASS2 number 23-05-08-02

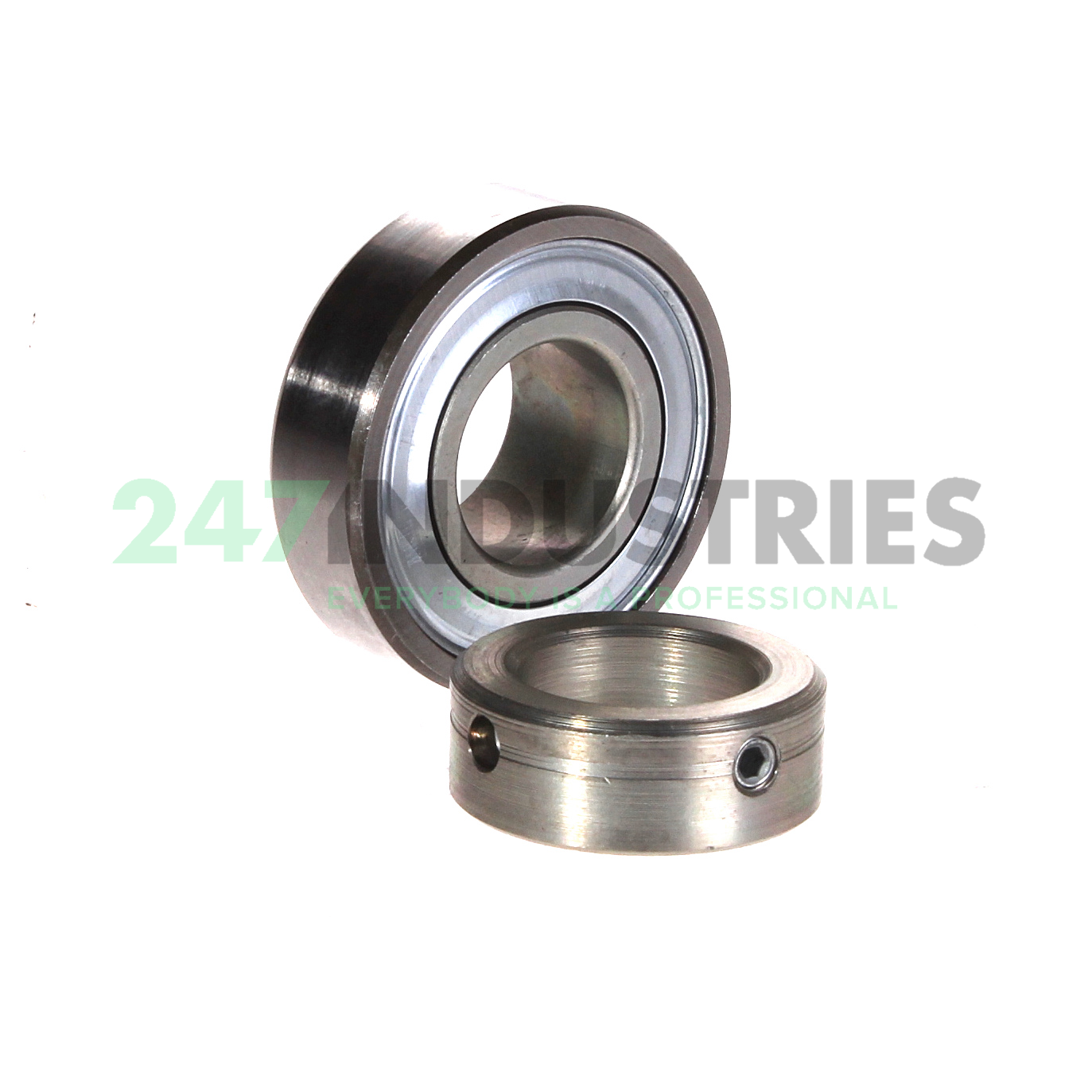

5. Medias description Radial insert ball bearings RAL..-NPP, cylindrical outer ring, location by eccentric locking collar, P seals on both sides, inch size bore
