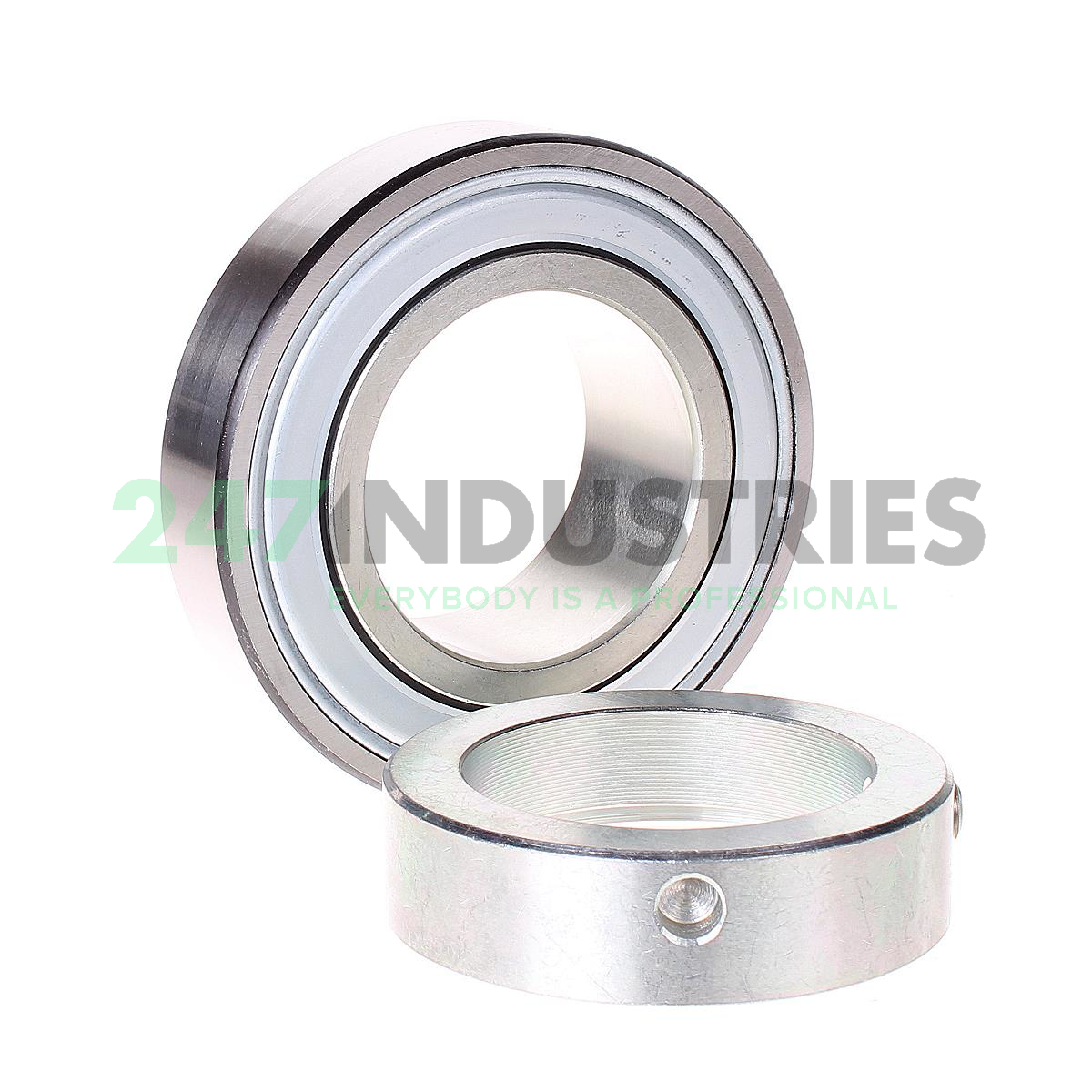

RAE60-XL-NPP INA

All dimensions

1. Inner (d) MM 60
2. Outer (D) MM 110
3. Width (B) MM 53,1
4. Inner (d) Inch 2.3622
5. Outer (D) Inch 4.3307
6. Width (B) Inch 2.0906
7. Width (b) mm 37,1
8. Locking collar total width (B 1) mm 53,1

Suffix description

1. XL X-Life
2. NPP Lip Seals On Both Sides (P Type - Two Zinc-Plated Sheet Steel Washers With Intermediate NBR Part, Seal Lip Axially Preloaded)
3. FA125.1 With Corrotect® Coating, Protected Against Corrosion

Technical details

1. Availability 56 pcs
2. Brand INA
3. Item number RAE60-XL-NPP INA
4. Also known as 0008773440000
   RAE60-NPP
   YET212CW

5. EAN 4012802795325
6. Category Bearings for Housings

Weight and Dimensions

1. Weight (kg) 1.3

Product Properties

1. Seal 2F - Standard Seal for Y-bearings
2. Lubrication Non-Regreaseable
3. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 36000
2. Radial Dynamic Load Rating Cr (N) 56000
3. ECLASS number 23-05-08-02
4. ECLASS2 number 23-05-08-02
5. Medias description Radial insert ball bearing RAE..-XL-NPP
