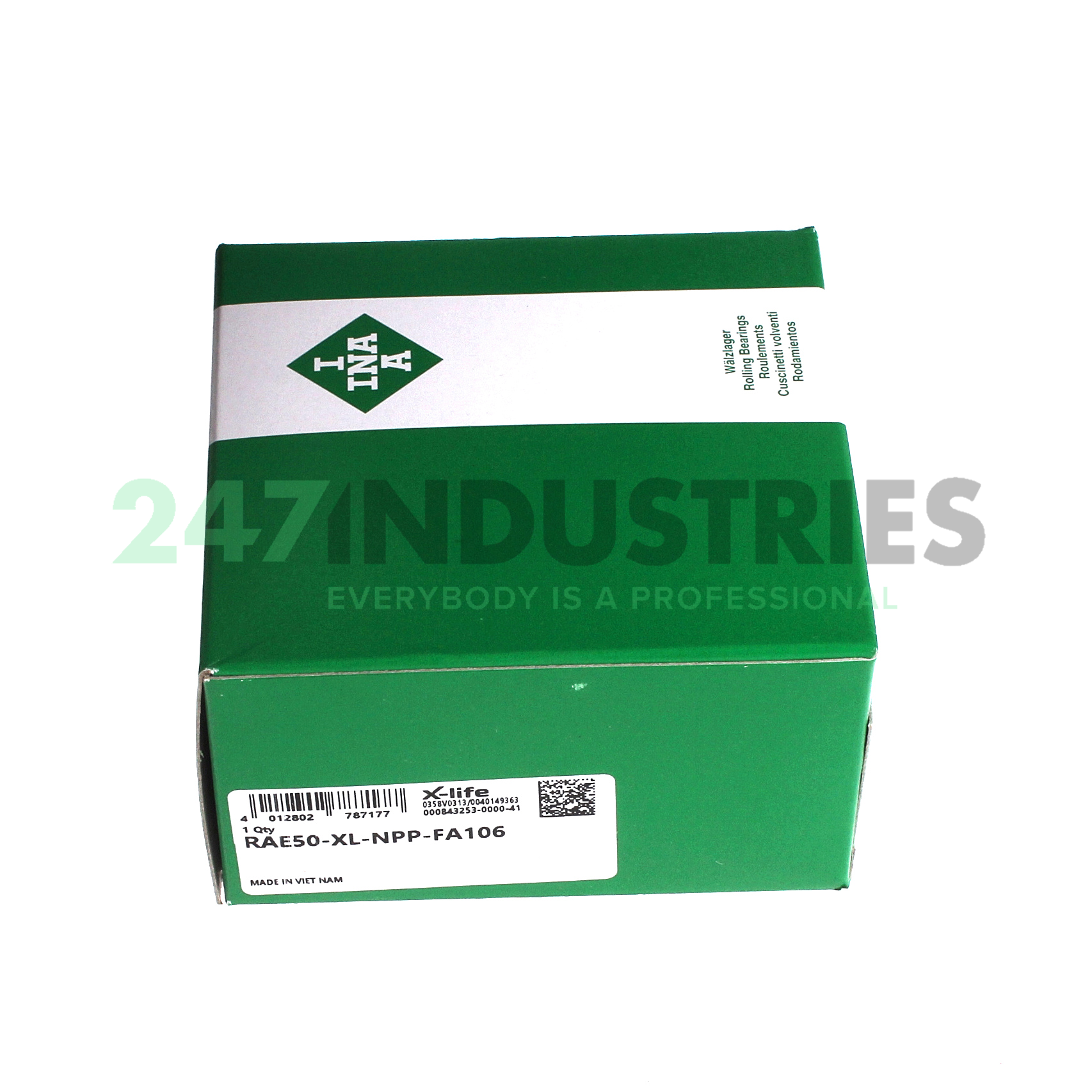

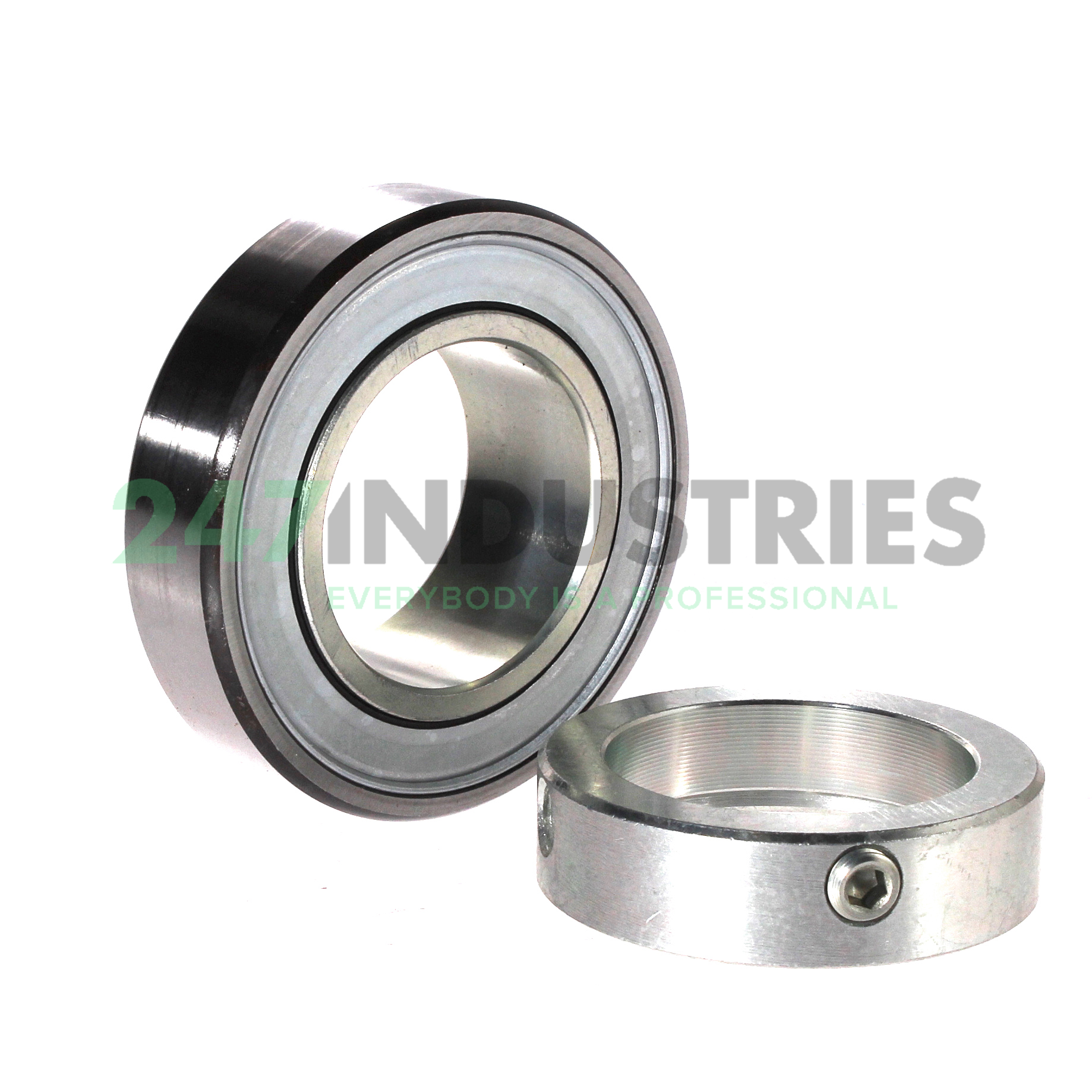

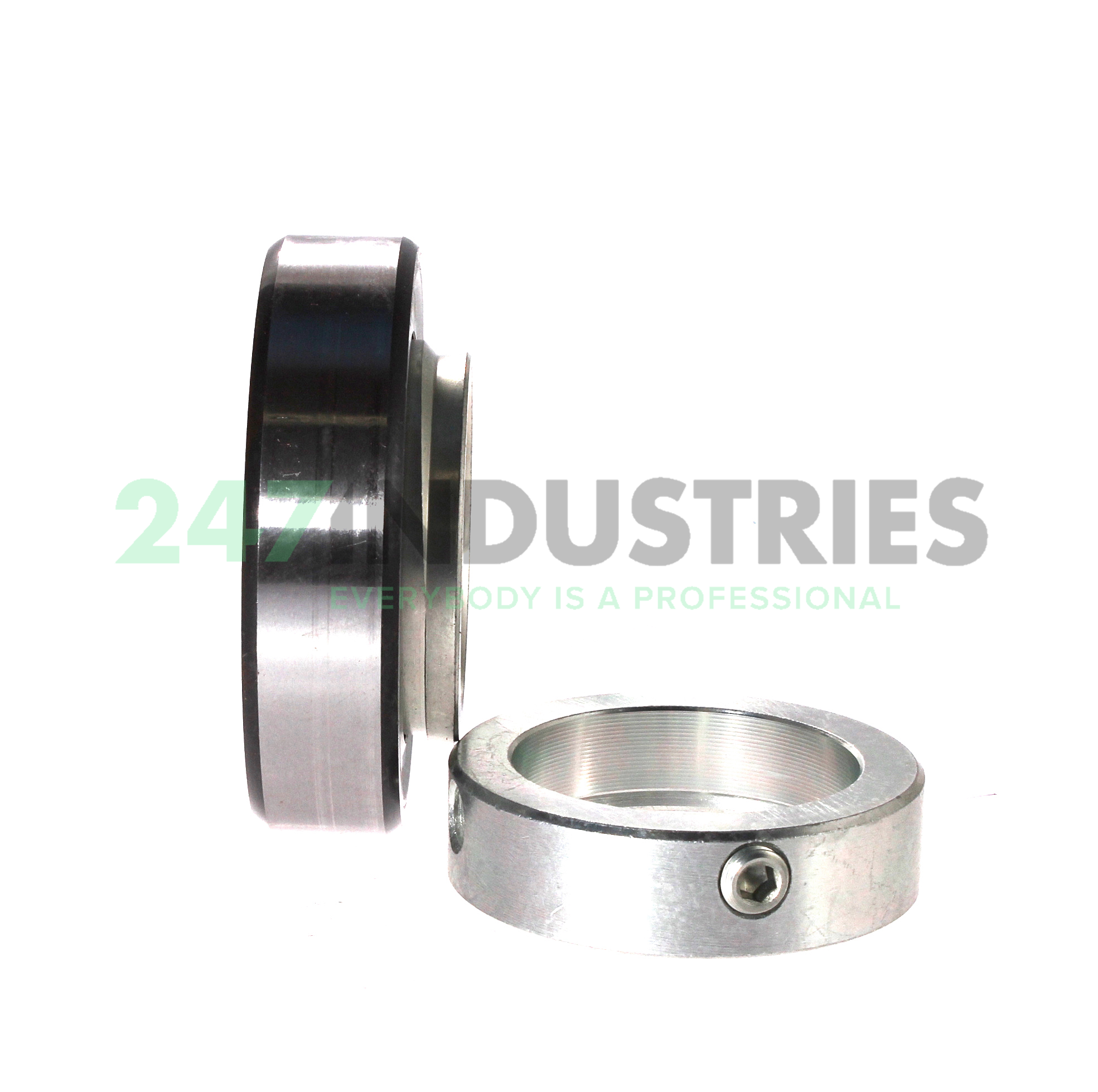

RAE50-XL-NPP-FA106 INA

All dimensions

1. Inner (d) MM 50
2. Outer (D) MM 90
3. Width (B) MM 43,7
4. Inner (d) Inch 1.9685
5. Outer (D) Inch 3.5433
6. Width (B) Inch 1.7205
7. Width (b) mm 30,2
8. Locking collar total width (B 1) mm 43,8

Suffix description

1. XL X-Life
2. NPP Lip Seals On Both Sides (P Type - Two Zinc-Plated Sheet Steel Washers With Intermediate NBR Part, Seal Lip Axially Preloaded)
3. FA106 Bearing Subjected To Special Noise Testing

Technical details

1. Availability 213 pcs
2. Brand INA
3. Item number RAE50-XL-NPP-FA106 INA
4. Also known as 0008432530000
   RAE50-NPP-FA106

5. EAN 4012802787177
6. Category Bearings for Housings

Weight and Dimensions

1. Weight (kg) 0.7

Product Properties

1. Seal 2F - Standard Seal for Y-bearings
2. Lubrication Non-Regreaseable
3. Special Treatment FA106

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 23200
2. Radial Dynamic Load Rating Cr (N) 37500
3. ECLASS number 23-05-08-02
4. ECLASS2 number 23-05-08-02
5. Medias description Radial insert ball bearing RAE..-XL-NPP
