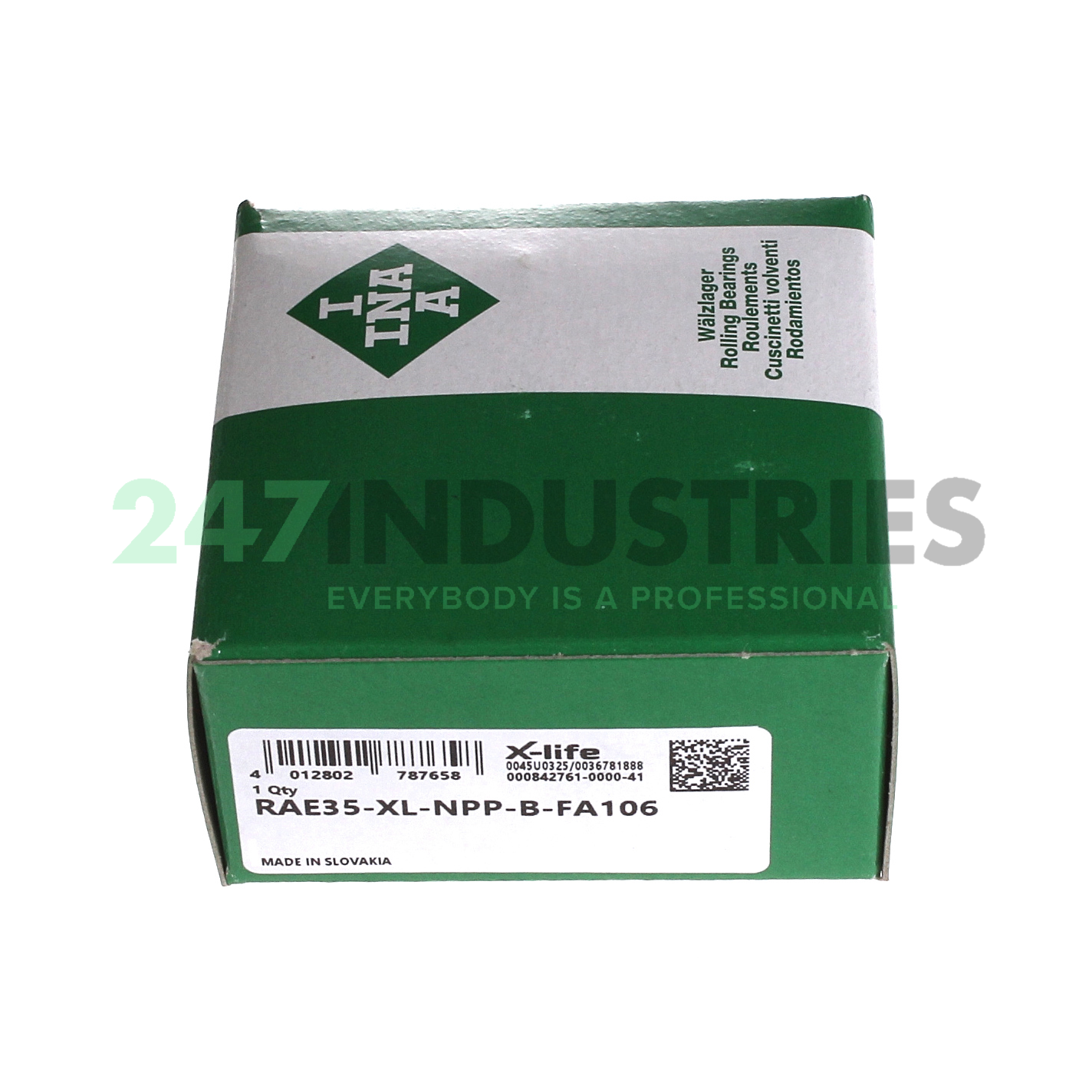

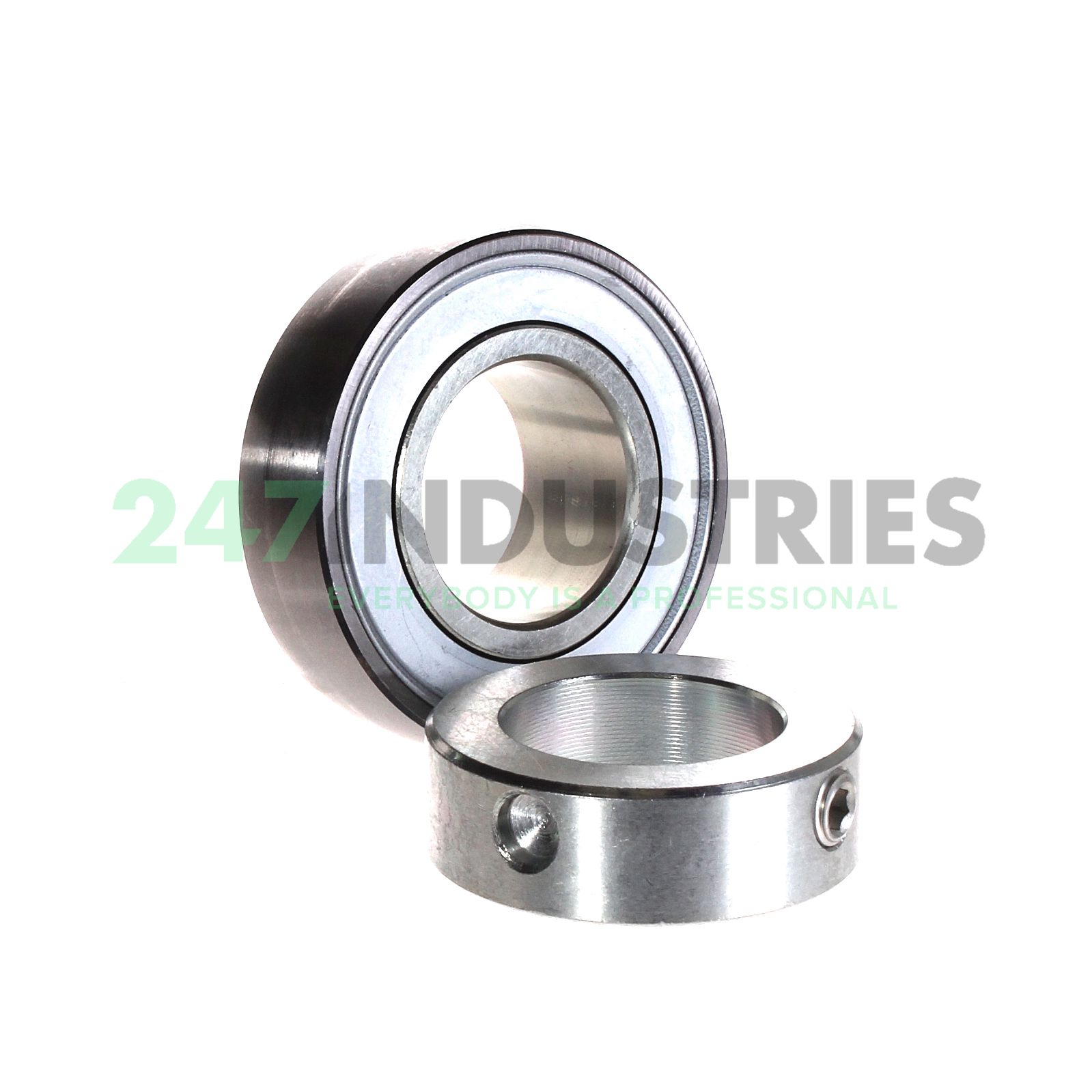

RAE35-XL-NPP-B-FA106 INA

All dimensions

1. Inner (d) MM 35,00
2. Outer (D) MM 72,00
3. Width (B) MM 38,90
4. Inner (d) Inch 1.3780
5. Outer (D) Inch 2.8346
6. Width (B) Inch 1.5315
7. Outside diameter (D SP) mm 72,00
8. Width (b) mm 25,40
9. Locking collar total width (B 1) mm 39,00

Suffix description

1. XL X-Life
2. NPP Lip Seals On Both Sides (P Type - Two Zinc-Plated Sheet Steel Washers With Intermediate NBR Part, Seal Lip Axially Preloaded)
3. B Bearing With Spherical Outer Ring
4. FA106 Bearing Subjected To Special Noise Testing

Technical details

1. Availability 186 pcs
2. Brand INA
3. Item number RAE35-XL-NPP-B-FA106 INA
4. Also known as 0008427610000
   RAE35-NPP-B-FA106
   RAE35-XL-NPP-B
   YET207

5. EAN 4012802787641
6. Category Bearings for Housings

Weight and Dimensions

1. Weight (kg) 0.44

Product Properties

1. Seal 2F - Standard Seal for Y-bearings
2. Lubrication Non-Regreaseable
3. Special Treatment FA106

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 15300
2. Radial Dynamic Load Rating Cr (N) 27500
3. Basic static load rating, radial (C 0r) "15300.0000"
4. ECLASS number 23-05-08-02
5. ECLASS2 number 23-05-08-02
6. Medias description Radial insert ball bearing RAE..-XL-NPP-B
