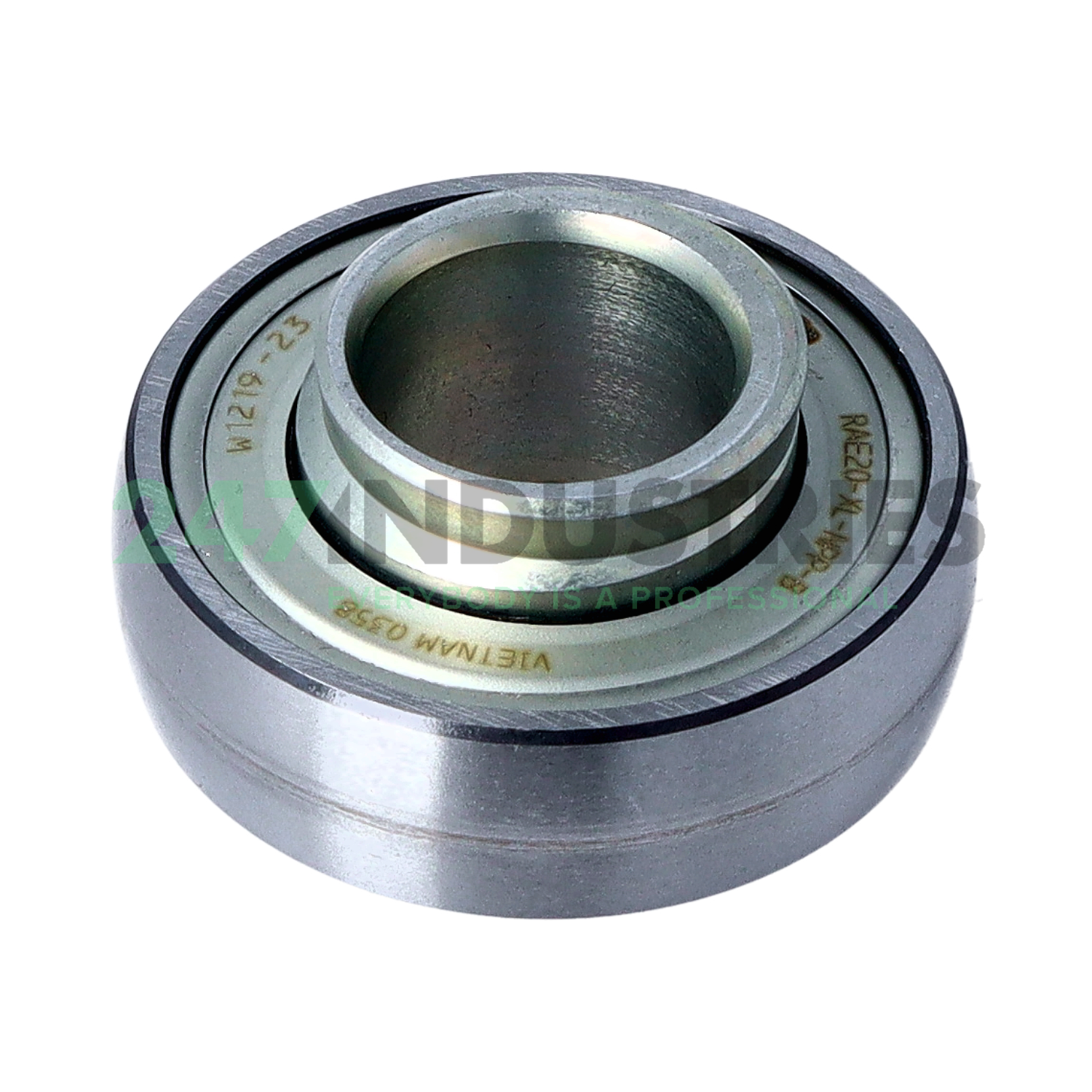

RAE20-XL-NPP-B-OSE INA

All dimensions

1. Inner (d) MM 20
2. Outer (D) MM 47
3. Width (B) MM 31
4. Inner (d) Inch 0.7874
5. Outer (D) Inch 1.8504
6. Width (B) Inch 1.2205
7. Outside diameter (D SP) mm 47
8. Width (b) mm 21,4

Suffix description

1. XL X-Life
2. NPP Lip Seals On Both Sides (P Type - Two Zinc-Plated Sheet Steel Washers With Intermediate NBR Part, Seal Lip Axially Preloaded)
3. B Bearing With Spherical Outer Ring
4. OSE Bearing Without Locking Element (Eccentric Locking Collar)

Technical details

1. Availability 16 pcs
2. Brand INA
3. Item number RAE20-XL-NPP-B-OSE INA
4. Also known as 0008671010000
   RAE20-NPP-B-OSE

5. EAN 4012802796490
6. Category Bearings for Housings

Weight and Dimensions

1. Weight (kg) 0.11

Product Properties

1. Seal 2F - Standard Seal for Y-bearings
2. Lubrication Non-Regreaseable
3. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Basic static load rating, radial (C 0r) 6600

Downloads and links

1. Link to manufacturer Link to manufacturer
