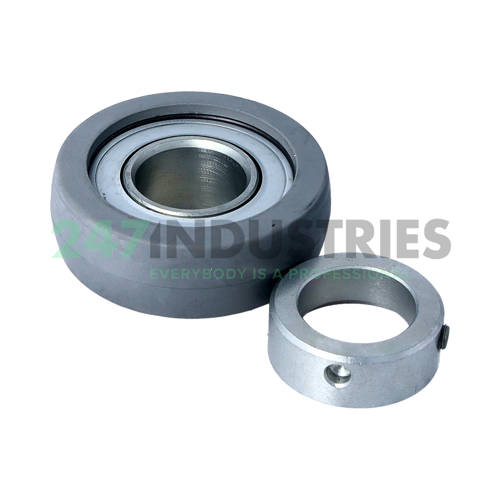

RABRB25/63-FA106 INA

All dimensions

1. Inner (d) MM 25
2. Outer (D) MM 63
3. Width (B) MM 31
4. Inner (d) Inch 0.9843
5. Outer (D) Inch 2.4803
6. Width (B) Inch 1.2205
7. Locking collar total width (B 1) mm 31

Suffix description

1. FA106 Bearing Subjected To Special Noise Testing

Technical details

1. Availability 0 pcs
2. Brand INA
3. Item number RABRB25/63-FA106 INA
4. Also known as 0108001310000

5. EAN 4012802832082
6. Category Bearings for Housings

Weight and Dimensions

1. Weight (kg) 0.21

Product Properties

1. Seal 2F - Standard Seal for Y-bearings
2. Lubrication Standard Lubrication
3. Special Treatment FA106

Data from Schaeffler (medias)

1. Basic static load rating, radial (C 0r) 7800

Downloads and links

1. Link to Manufacturer Link to Manufacturer
