RABRB20/52-XL-FA106 INA

All dimensions

1. Inner (d) MM 20
2. Outer (D) MM 52,3
3. Width (B) MM 32,3
4. Inner (d) Inch 0.7874
5. Outer (D) Inch 2.0591
6. Width (B) Inch 1.2717
7. Locking collar total width (B 1) mm 31
8. Width total (B 2) mm 32,3

Suffix description

1. XL X-Life
2. FA106 Bearing Subjected To Special Noise Testing

Technical details

1. Availability 147 pcs
2. Brand INA
3. Item number RABRB20/52-XL-FA106 INA
4. Also known as 0008348310000
   RABRB20/52-FA106
   YET204+RIS204

5. EAN 4012802789225
6. Category Bearings for Housings

Weight and Dimensions

1. Weight (kg) 0.2

Product Properties

1. Seal 2F - Standard Seal for Y-bearings
2. Lubrication Standard Lubrication
3. Special Treatment FA106

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 6600
2. Radial Dynamic Load Rating Cr (N) 13600
3. ECLASS number 23-05-08-02
4. ECLASS2 number 23-05-08-02

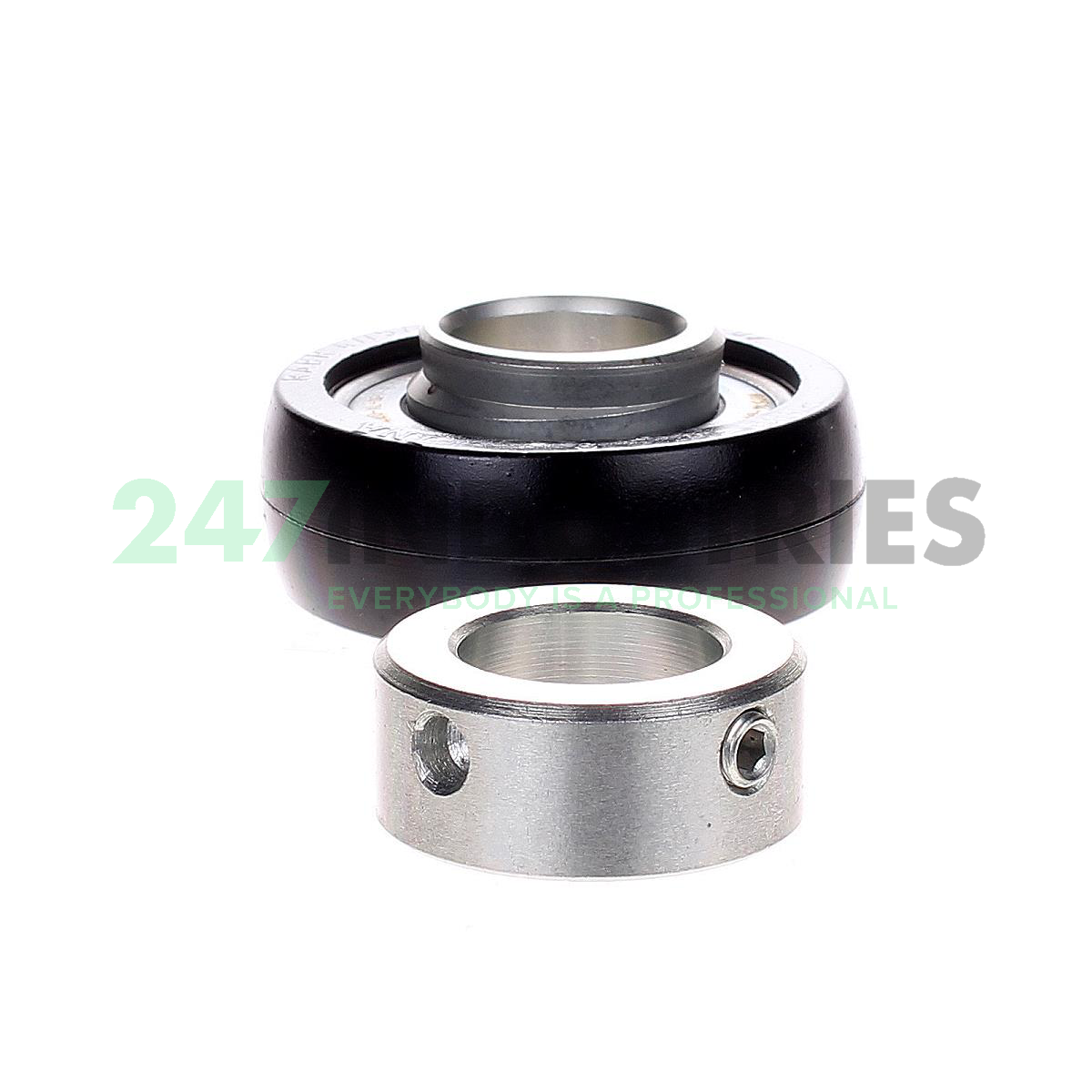

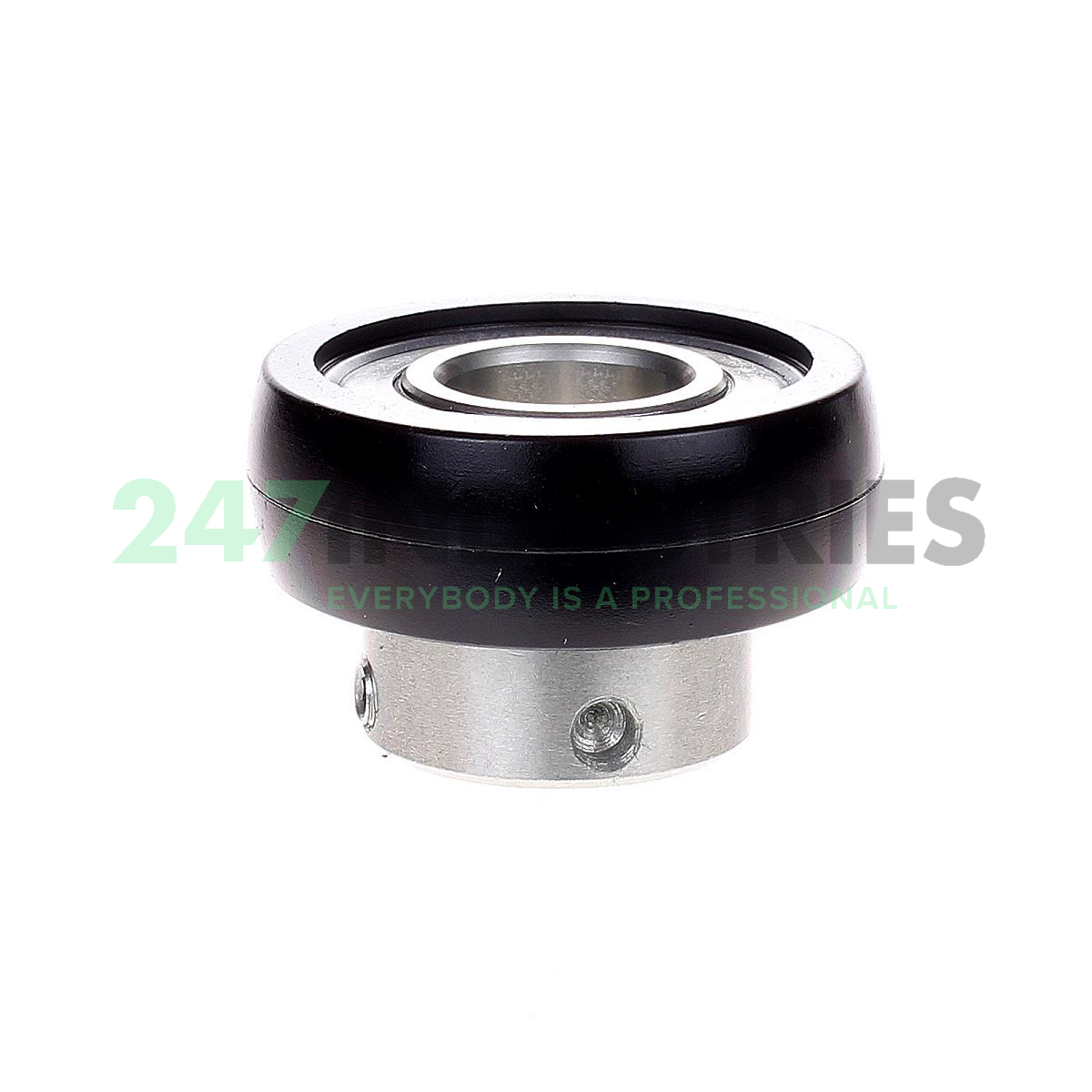

5. Medias description Radial insert ball bearings RABR, with rubber interliner, location by eccentric locking collar, P seals on both sides
