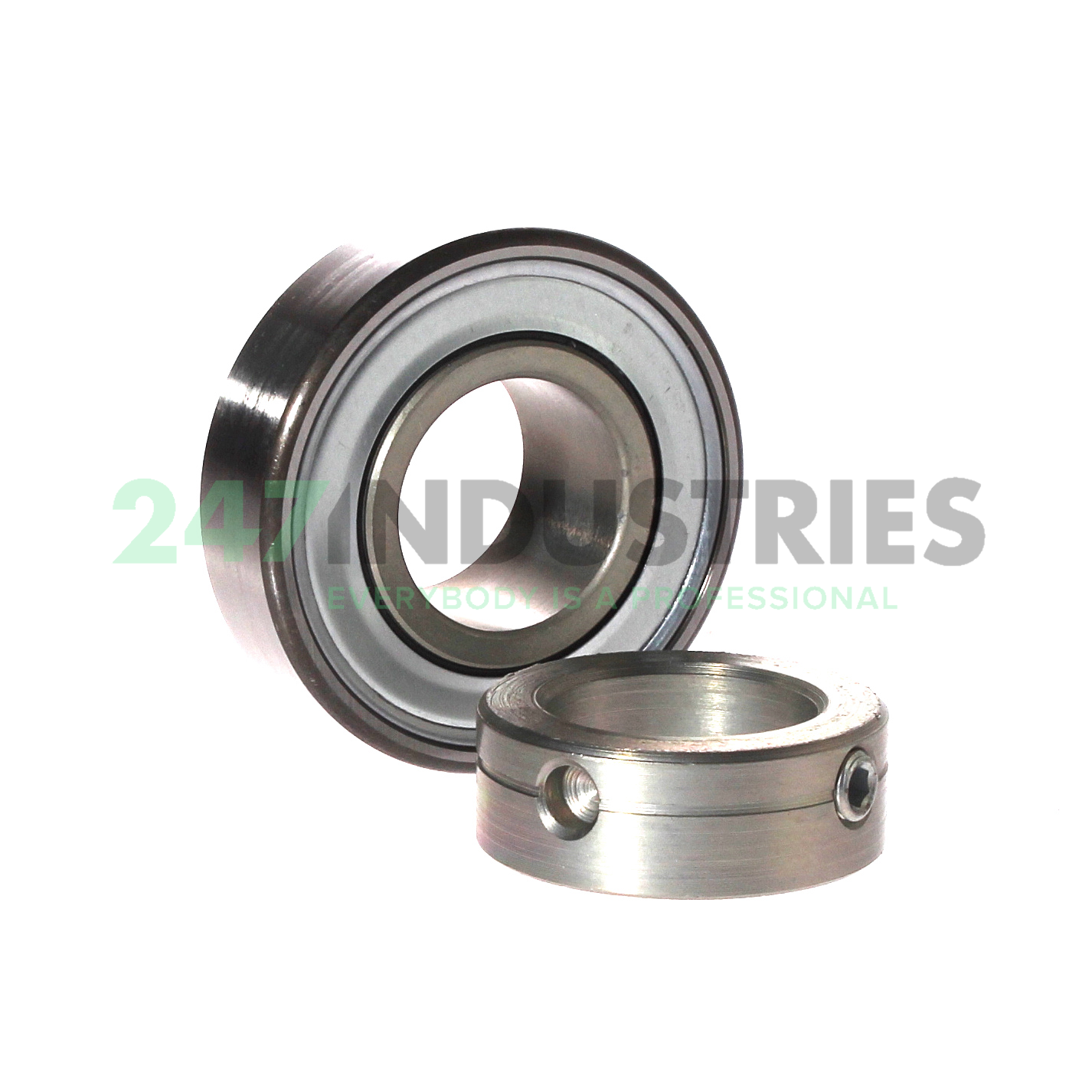

RA102-NPP INA

All dimensions

1. Inner (d) MM 28,58
2. Outer (D) MM 62
3. Width (B) MM 35,7
4. Inner (d) Inch 1.125
5. Outer (D) Inch 2.4409
6. Width (B) Inch 1.4055
7. Width (b) mm 23,8
8. Locking collar total width (B 1) mm 35,8

Suffix description

1. NPP Lip Seals On Both Sides (P Type - Two Zinc-Plated Sheet Steel Washers With Intermediate NBR Part, Seal Lip Axially Preloaded)

Technical details

1. Availability 22 pcs
2. Brand INA
3. Item number RA102-NPP INA
4. Also known as 0502936050000
   RA102NPPW
   RA102-XL-NPP
   YET206-102CW

5. EAN 4047643164290
6. Category Bearings for Housings

Weight and Dimensions

1. Weight (kg) 0.327

Product Properties

1. Seal 2F - Standard Seal for Y-bearings
2. Lubrication Standard Lubrication
3. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 11300
2. Radial Dynamic Load Rating Cr (N) 20700
3. ECLASS number 23-05-08-02
4. ECLASS2 number 23-05-08-02
5. Medias description Radial insert ball bearing RA..-NPP
