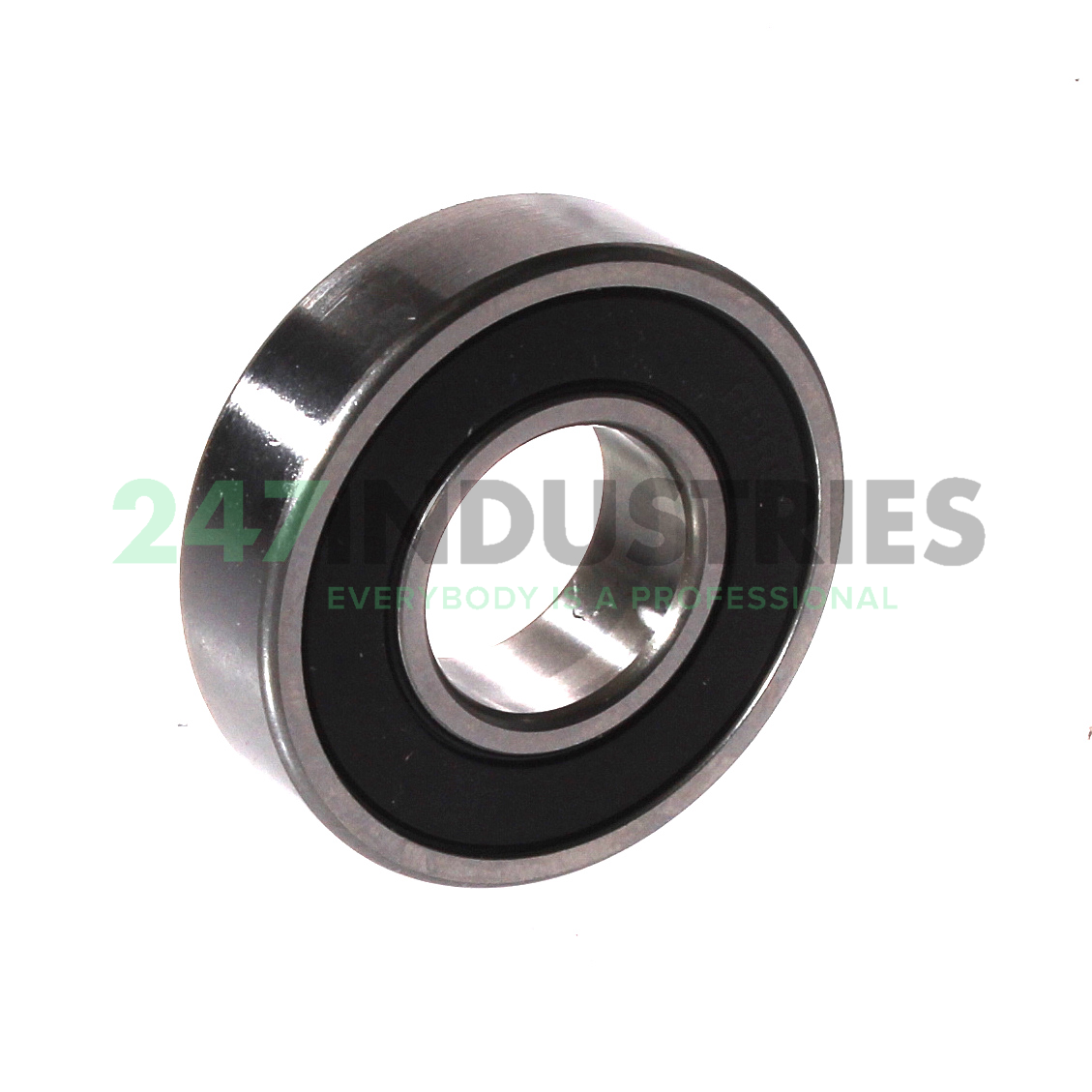

R8-2RSR-HLC FAG

All dimensions

1. Inner (d) MM 12,7
2. Outer (D) MM 28,58
3. Width (B) MM 7,94
4. Inner (d) Inch 0.5
5. Outer (D) Inch 1.125
6. Width (B) Inch 0.3125

Suffix description

1. 2RSR Rubber Seals At Each Side Of The Bearing
2. HLC Factory Location Code, No Additional Meaning, Can Be Used As Standard

Technical details

1. Availability 228 pcs
2. Brand FAG
3. Item number R8-2RSR-HLC FAG
4. Also known as 0552368710000
   R8-2RSR

5. EAN 4012802891874
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.018

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RS - Rubber Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. ECLASS number 23-05-08-01
2. ECLASS2 number 23-05-08-01

Downloads and links

1. Link to manufacturer Link to manufacturer
