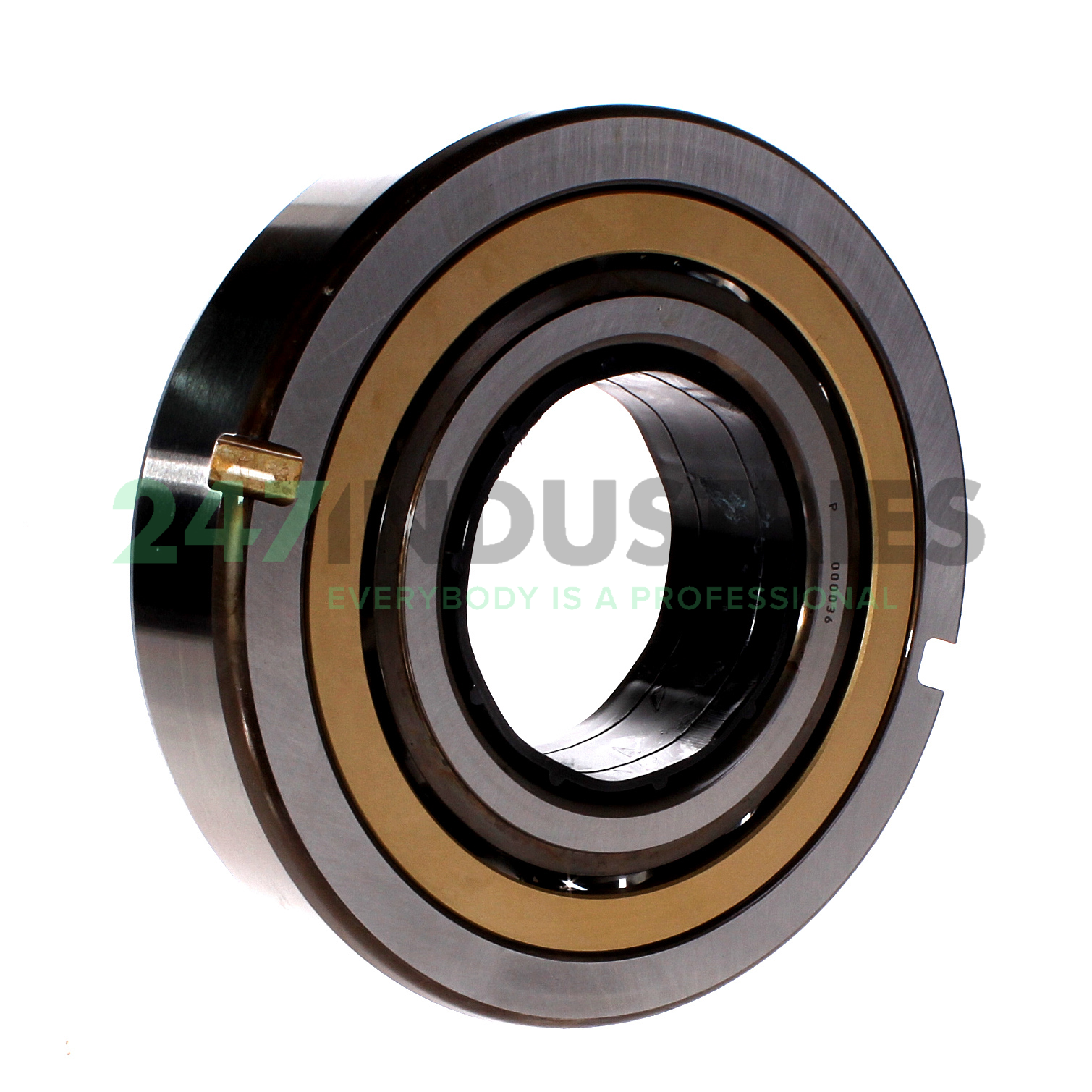

QJ318N2MA/C2L SKF

All dimensions

1. Inner (d) MM 90
2. Outer (D) MM 190
3. Width (B) MM 43
4. Inner (d) Inch 3.5433
5. Outer (D) Inch 7.4803
6. Width (B) Inch 1.6929

Suffix description

1. N2 Two Locating Slots (Notches), 180° Apart, In The Large Outer Ring Side Face
2. MA Machined Brass Cage Guidance By The Outer Ring
3. C2L Lower Half Of Normal Clearance Range

Technical details

1. Availability 1 pc
2. Brand SKF
3. Item number QJ318N2MA/C2L SKF
4. EAN 7316577065261
5. Category Four Point Contact Ball Bearing

Weight and Dimensions

1. Weight (kg) 6.45

Product Properties

1. Seal No Seal
2. Cage Type MA - Brass Cage, Centered on Outer Ring
3. External Modification N2 - 2 Locking Groove in Outer Ring
4. Radial Internal Play Int. Play Lower Half C2 Range
5. Precision Standard Precision
6. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
7. Split Inner ring / Outer ring Split inner ring
