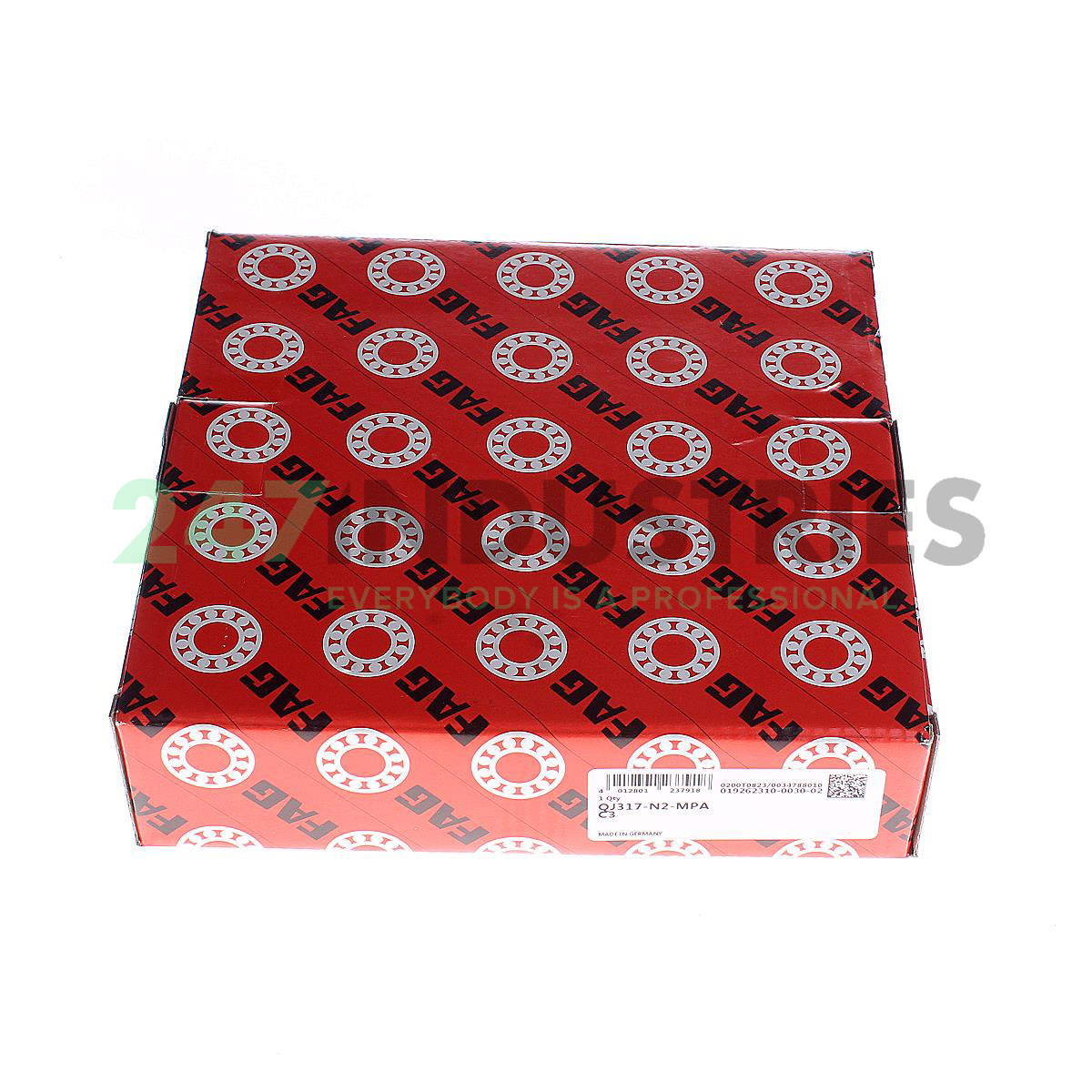

QJ317-N2-MPA-C3 FAG

All dimensions

1. Inner (d) MM 85,00
2. Outer (D) MM 180,00
3. Width (B) MM 41,00
4. Inner (d) Inch 3.3465
5. Outer (D) Inch 7.0866
6. Width (B) Inch 1.6142
7. Width (b) mm 41,00

Suffix description

1. N2 Two Locating Slots (Notches) 180° Apart In One Outer Ring Side Face Or Housing Washer
2. MPA Window-Type Machined Brass Cage; Guidance By The Outer Ring (Housing)
3. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 6 pcs
2. Brand FAG
3. Item number QJ317-N2-MPA-C3 FAG
4. Also known as 0192623100030

5. EAN 4012801237918
6. Category Four Point Contact Ball Bearing

Weight and Dimensions

1. Weight (kg) 5.28

Product Properties

1. Seal No Seal
2. Cage Type MA - Brass Cage, Centered on Outer Ring
3. External Modification N2 - 2 Locking Groove in Outer Ring
4. Radial Internal Play C3 Internal Play (Higher than Cn)
5. Precision Standard Precision
6. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
7. Split Inner ring / Outer ring Split inner ring

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 255000
2. Radial Dynamic Load Rating Cr (N) 248000
3. Basic static load rating, radial (C 0r) "255000.0000"
4. Limiting speed (n G) "6600.0000"
5. Reference speed (n ϑr) "3550.0000"
6. ECLASS number 23-05-08-03
7. ECLASS2 number 23-05-08-03
8. Medias description Four-point contact bearing QJ3..-N2-MPA, inner ring split
