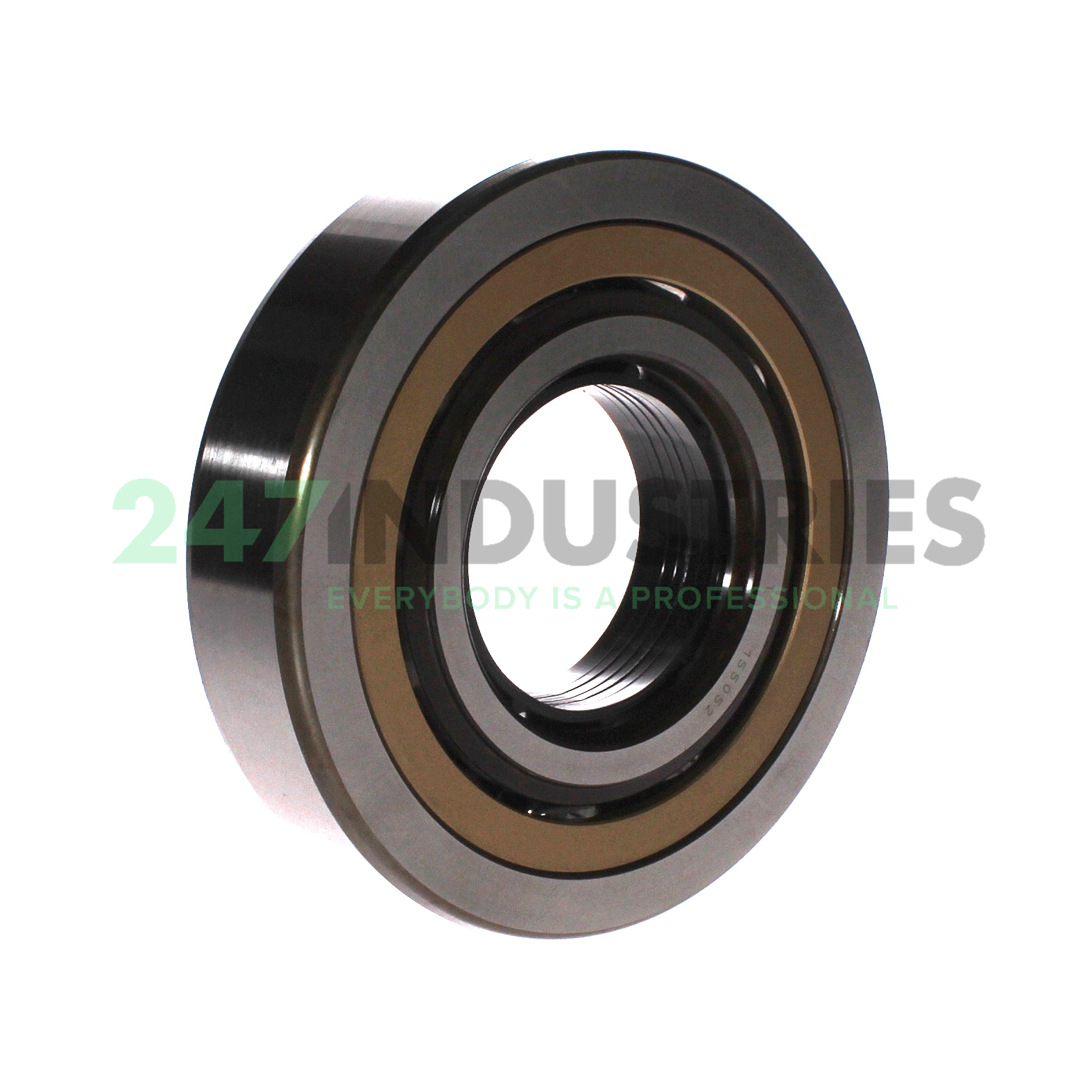

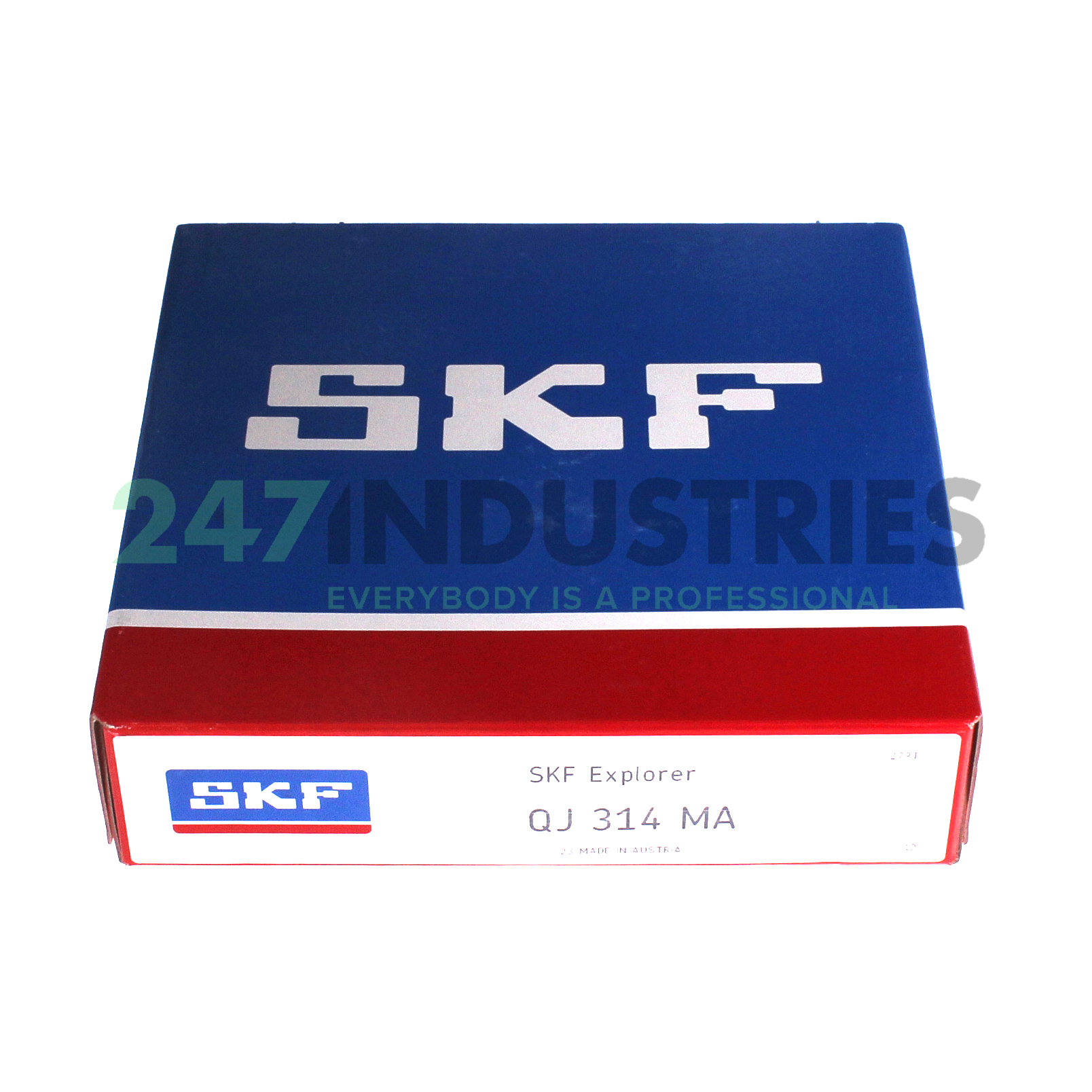

QJ314MA SKF

All dimensions

1. Inner (d) MM 70
2. Outer (D) MM 150
3. Width (B) MM 35
4. Inner (d) Inch 2.7559
5. Outer (D) Inch 5.9055
6. Width (B) Inch 1.378

Suffix description

1. MA Machined Brass Cage, Outer Ring Guided

Technical details

1. Availability 4 pcs
2. Brand SKF
3. Item number QJ314MA SKF
4. EAN 7316577013071
5. Category Four Point Contact Ball Bearing

Weight and Dimensions

1. Weight (kg) 3.1

Product Properties

1. Seal No Seal
2. Cage Type MA - Brass Cage, Centered on Outer Ring
3. External Modification No External Modification
4. Radial Internal Play Cn Normal Internal Play
5. Precision Standard Precision
6. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
7. Split Inner ring / Outer ring Split inner ring
