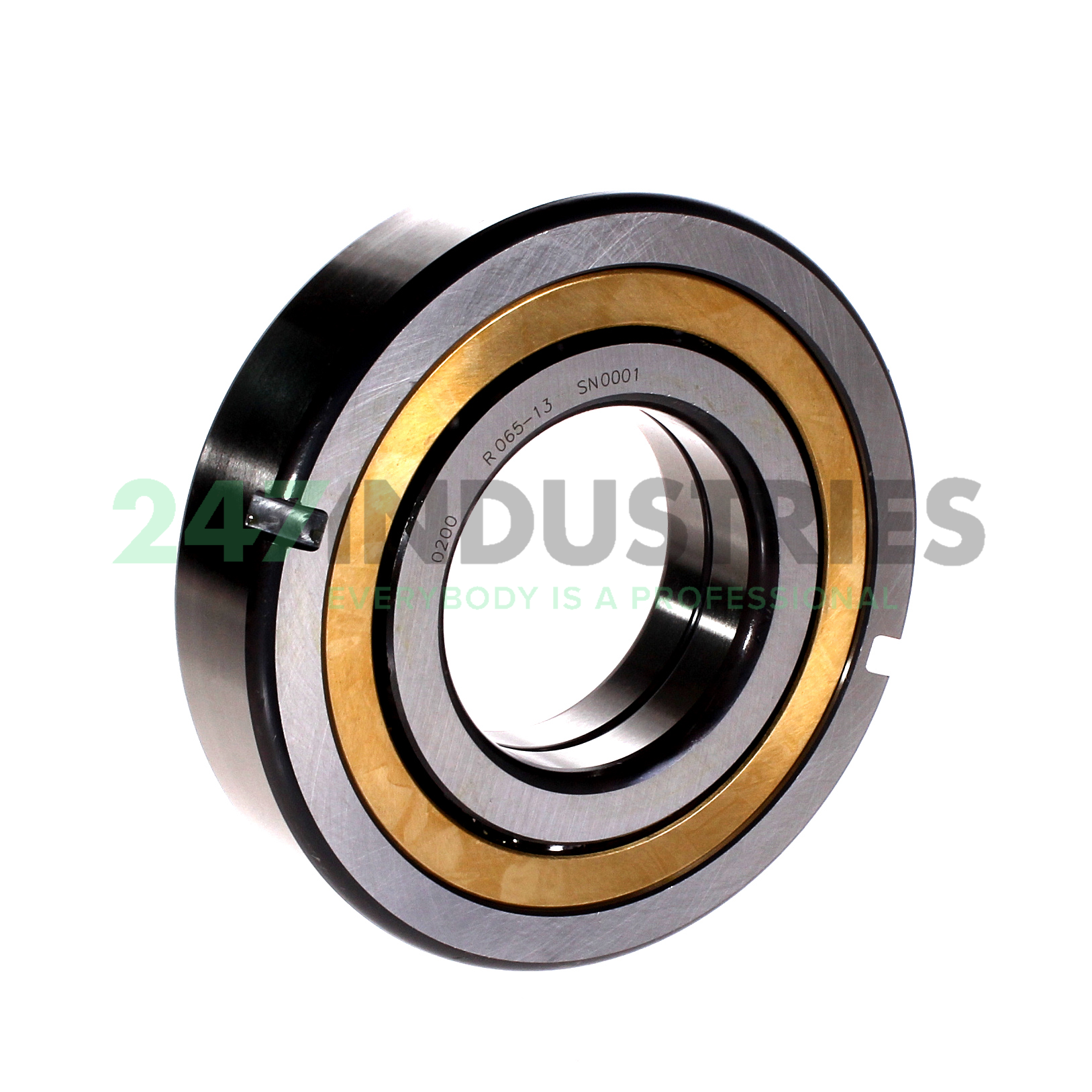

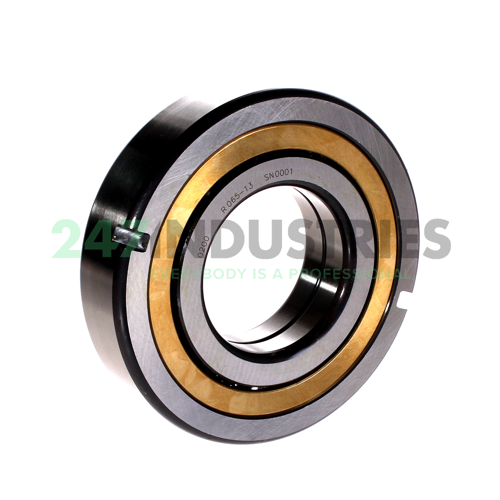

QJ312-XL-N2-MPA-T42A FAG

All dimensions

1. Inner (d) MM 60
2. Outer (D) MM 130
3. Width (B) MM 31
4. Inner (d) Inch 2.3622
5. Outer (D) Inch 5.1181
6. Width (B) Inch 1.2205
7. Width (b) mm 31

Suffix description

1. XL X-Life

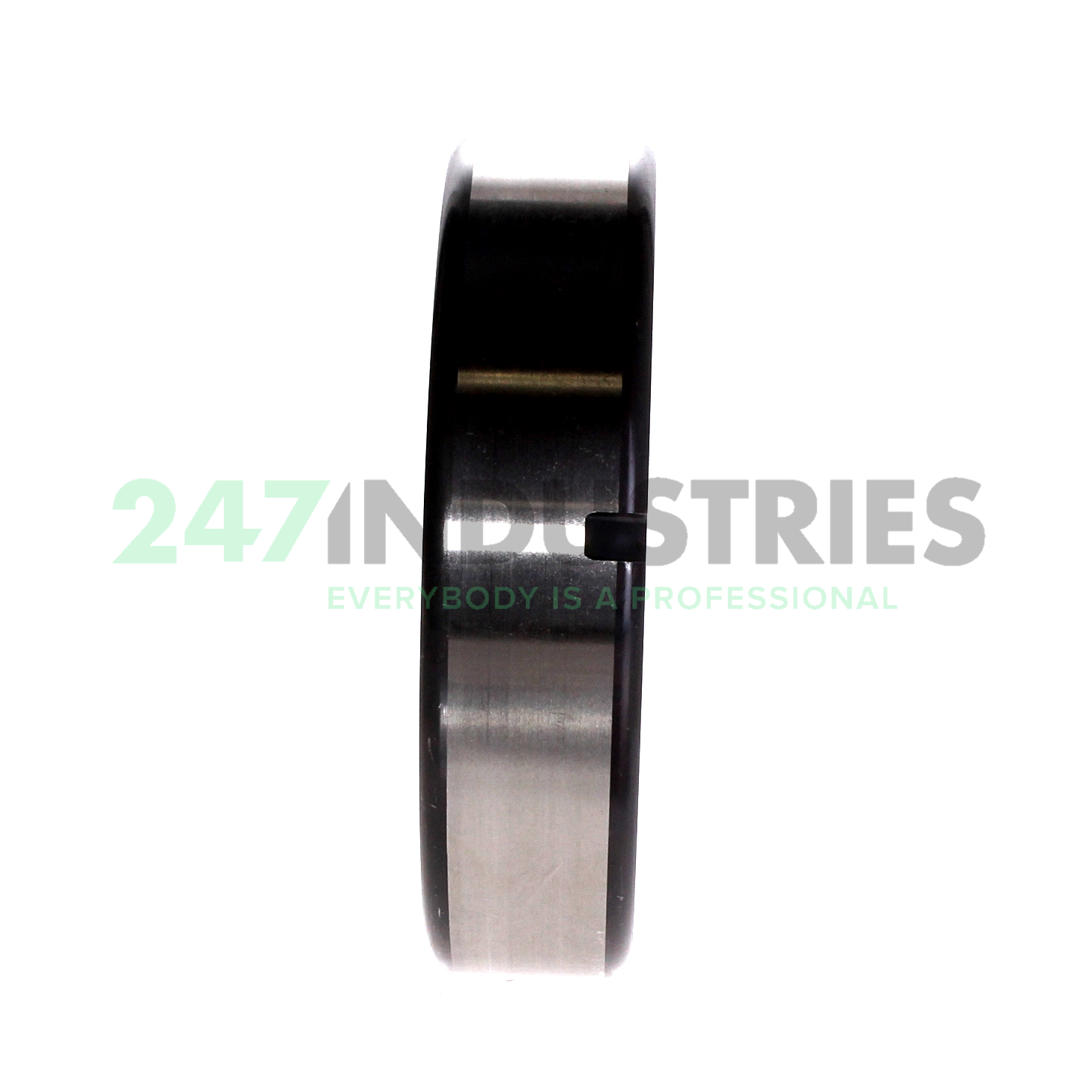

2. N2 Two Locating Slots (Notches) 180° Apart In One Outer Ring Side Face Or Housing Washer
3. MPA Window-Type Machined Brass Cage; Guidance By The Outer Ring (Housing)
4. T42A Special Axial C2 Clearance

Technical details

1. Availability 6 pcs
2. Brand FAG
3. Item number QJ312-XL-N2-MPA-T42A FAG
4. Also known as 0384024244380
   QJ312-N2-MPA-T42A

5. EAN 4026677636386
6. Category Four Point Contact Ball Bearing

Weight and Dimensions

1. Weight (kg) 2.1

Product Properties

1. Seal No Seal
2. Cage Type MA - Brass Cage, Centered on Outer Ring
3. External Modification N2 - 2 Locking Groove in Outer Ring
4. Radial Internal Play C2 Internal Play (Less than Cn)
5. Precision Special Axial Clearance
6. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C

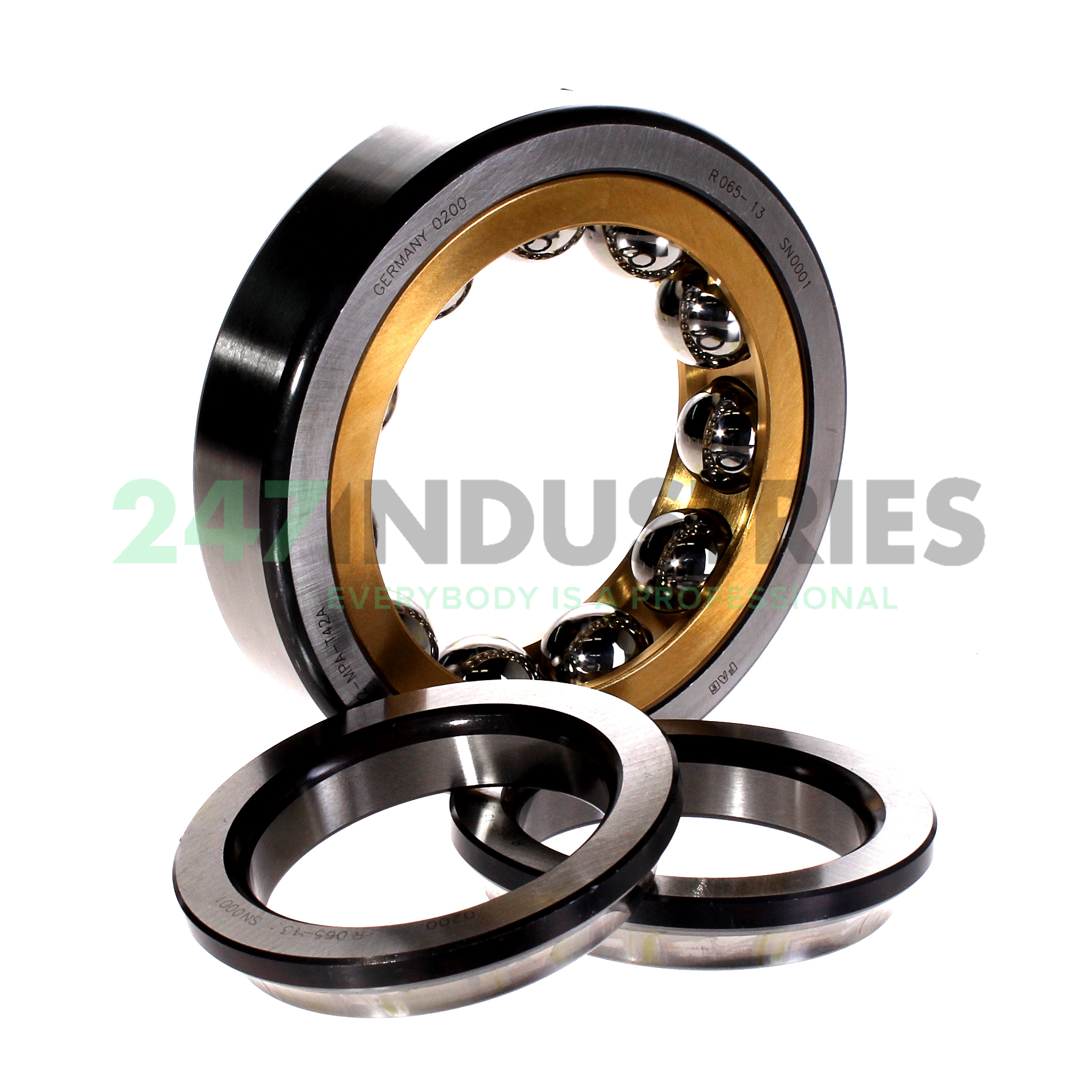

7. Split Inner ring / Outer ring Split inner ring

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 126000
2. Radial Dynamic Load Rating Cr (N) 152000
3. Limiting speed (n G) 10400
4. Reference speed (n ϑr) 4700
5. ECLASS number 23-05-08-03
6. ECLASS2 number 23-05-08-03
7. Medias description Four-point contact bearing QJ3..-XL-N2-MPA, inner ring split
