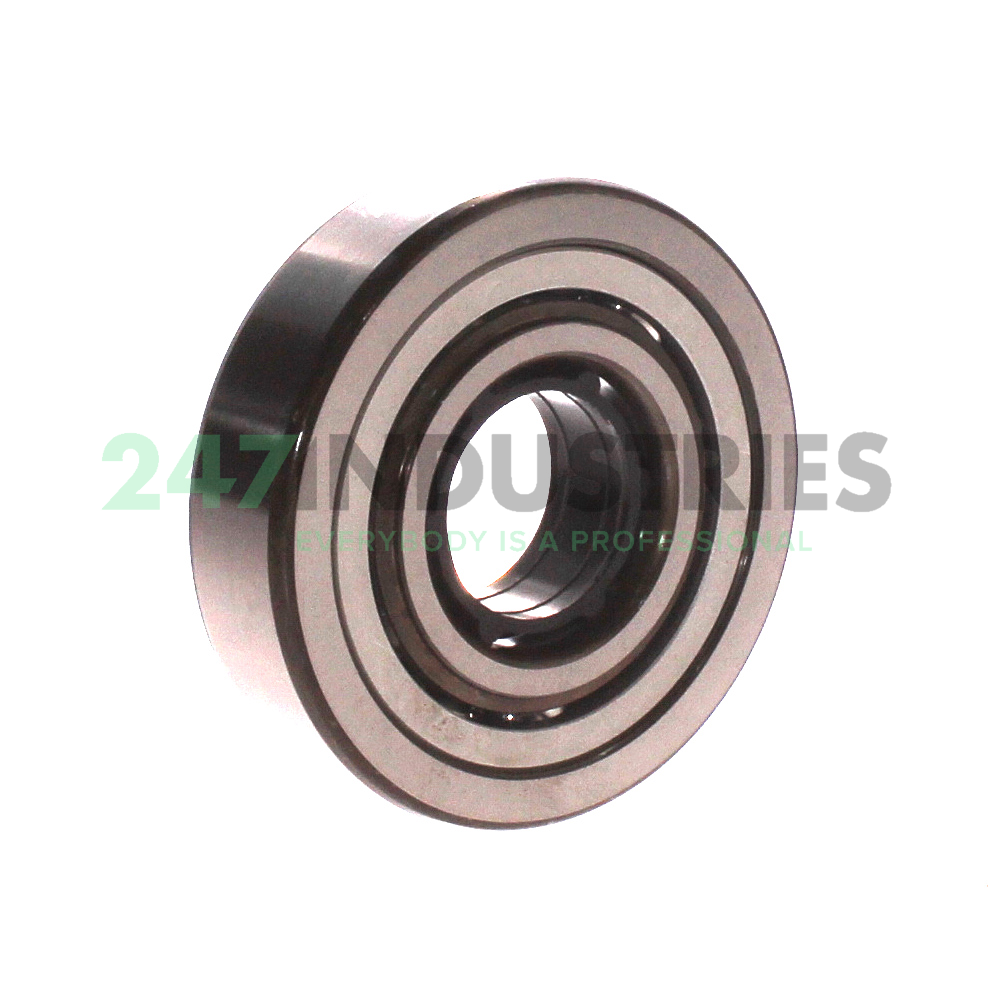

QJ307LA/P63 SKF

All dimensions

1. Inner (d) MM 35
2. Outer (D) MM 80
3. Width (B) MM 21
4. Inner (d) Inch 1.378
5. Outer (D) Inch 3.1496
6. Width (B) Inch 0.8268

Suffix description

1. LA Alu-Cage Outer Ring Guided
2. P63 Combination Of P6 (Dimensional And Running Accuracy To ISO Tolerance Class 6 (Better Than Normal)) And C3 (Internal Clearance Larger Than Normal)

Technical details

1. Availability 1 pc
2. Brand SKF
3. Item number QJ307LA/P63 SKF
4. EAN 7316571552392
5. Category Four Point Contact Ball Bearing

Weight and Dimensions

1. Weight (kg) 0.56

Product Properties

1. Seal No Seal
2. Cage Type LA - Alu-Cage Outer Ring Guided
3. External Modification No External Modification
4. Radial Internal Play C3 Internal Play (Higher than Cn)
5. Precision P6 Precision (Higher than Standard)
6. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
7. Split Inner ring / Outer ring Split inner ring
