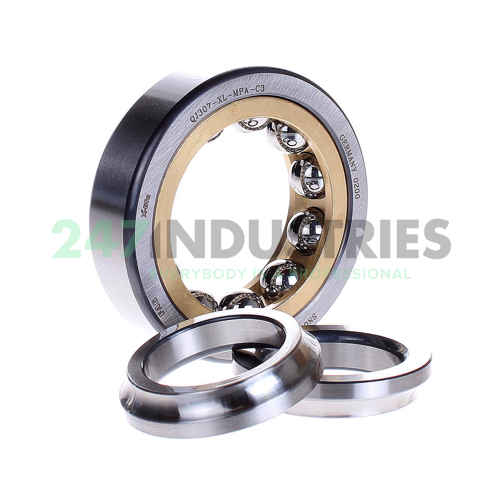

QJ307-XL-MPA-C3 FAG

64,82 ex VAT
€ 78,43 in VAT
€ 78,43 in VAT
64,82 ex VAT

Guaranteed same day shipment on orders placed before 18.00h (CEST)
This product is available from stock
Worldwide shipping from the Netherlands
30 days return policy
Track your order through Track & Trace
iDeal, Mastercard, Visa, PayPal

QJ307-XL-MPA-C3 FAG

Stock
89 pcs in stock and ready for shipment
Brand FAG
Article number QJ307-XL-MPA-C3 FAG
Inside diameter 35mm
Outside diameter 80mm
Width 21mm
Product description
Help with this product

Downloads and links

Similar to: QJ307-XL-MPA-C3 FAG

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 35
  2. Outer (D) MM 80
  3. Width (B) MM 21
  4. Inner (d) Inch 1.378
  5. Outer (D) Inch 3.1496
  6. Width (B) Inch 0.8268
  7. Width (b) mm 21

Suffix description

  1. XL X-Life
  2. MPA Solid Brass Cage
  3. C3 Internal Clearance Larger Than Normal

Technical details

  1. Availability 89 pcs
  2. Brand FAG
  3. Item number QJ307-XL-MPA-C3 FAG
  4. Also known as 0167424780030
    QJ307-MPA-C3
  5. EAN 4012801180849
  6. Category Four Point Contact Ball Bearing

Weight and Dimensions

  1. Weight (kg) 0.56

Product Properties

  1. Seal No Seal
  2. Cage Type MA - Brass Cage, Centered on Outer Ring
  3. External Modification No External Modification
  4. Radial Internal Play C3 Internal Play (Higher than Cn)
  5. Precision Standard Precision
  6. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
  7. Split Inner ring / Outer ring Split inner ring

Data from Schaeffler (medias)

  1. Radial Static Load Rating C0r (N) 46500
  2. Radial Dynamic Load Rating Cr (N) 61000
  3. Basic static load rating, radial (C 0r) "46500.0000"
  4. Limiting speed (n G) 17900
  5. Reference speed (n ϑr) 7200
  6. ECLASS number 23-05-08-03
  7. ECLASS2 number 23-05-08-03
  8. Medias description Four-point contact bearing QJ3..-XL-MPA, inner ring split

Downloads and links

  1. X-life brochure X-life brochure
  2. Link to manufacturer Link to manufacturer
