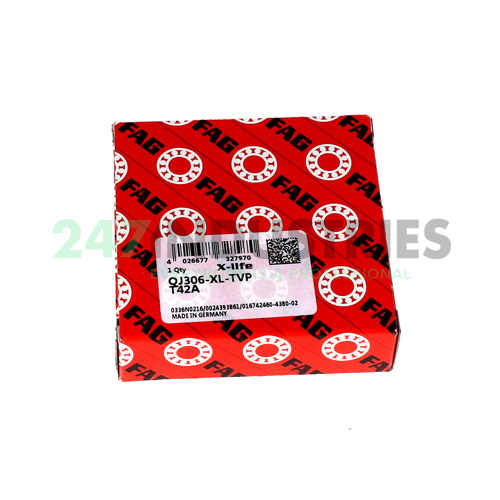

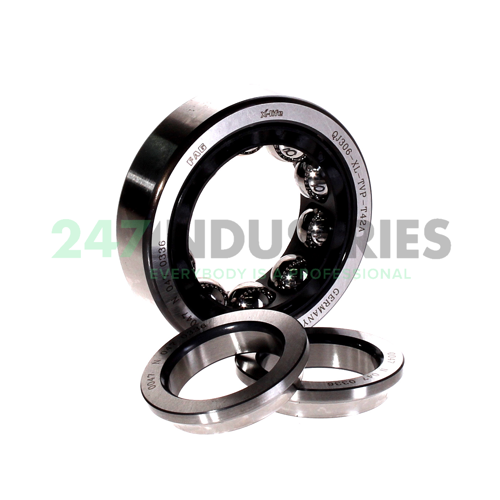

QJ306-XL-TVP-T42A FAG

All dimensions

1. Inner (d) MM 30
2. Outer (D) MM 72
3. Width (B) MM 19
4. Inner (d) Inch 1.1811
5. Outer (D) Inch 2.8346
6. Width (B) Inch 0.748
7. Width (b) mm 19

Suffix description

1. XL X-Life
2. TVP Moulded Polyamide Window-Type Cage, Rolling Element Riding
3. T42A Special Axial C2 Clearance

Technical details

1. Availability 12 pcs
2. Brand FAG
3. Item number QJ306-XL-TVP-T42A FAG
4. Also known as 0167424604380
   QJ306-TVP-T42A

5. EAN 4026677327970
6. Category Four Point Contact Ball Bearing

Weight and Dimensions

1. Weight (kg) 0.414

Product Properties

1. Seal No Seal
2. Cage Type P - Plastic Molded Cage
3. External Modification No External Modification
4. Radial Internal Play C2 Internal Play (Less than Cn)
5. Precision Special Axial Clearance
6. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
7. Split Inner ring / Outer ring Split inner ring

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 43000
2. Radial Dynamic Load Rating Cr (N) 61000
3. Limiting speed (n G) 13100
4. Reference speed (n ϑr) 7600
5. ECLASS number 23-05-08-03
6. ECLASS2 number 23-05-08-03
7. Medias description Four point contact bearings QJ3, main dimensions to DIN 628-4, separable, with split inner ring
