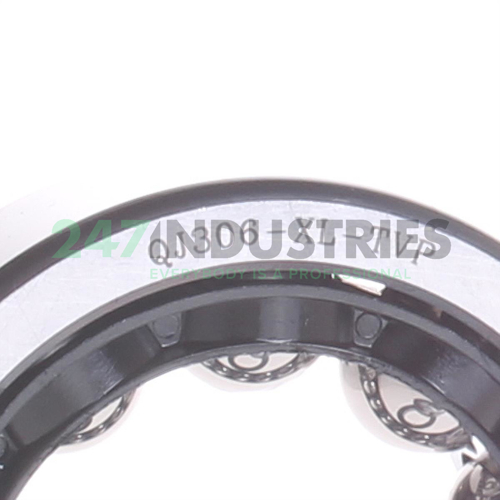

QJ306-XL-TVP FAG

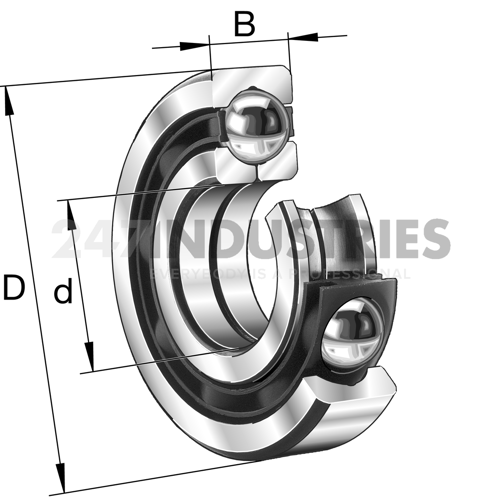

All dimensions

1. Inner (d) MM 30,00
2. Outer (D) MM 72,00
3. Width (B) MM 19,00
4. Inner (d) Inch 1.1811
5. Outer (D) Inch 2.8346
6. Width (B) Inch 0.7480
7. Width (b) mm 19,00

Suffix description

1. XL X-Life
2. TVP Moulded Polyamide Window-Type Cage, Rolling Element Riding

Technical details

1. Availability 19 pcs
2. Brand FAG
3. Item number QJ306-XL-TVP FAG
4. Also known as 0167424600000
   QJ306-TVP

5. EAN 4012801180818
6. Category Four Point Contact Ball Bearing

Weight and Dimensions

1. Weight (kg) 0.368

Product Properties

1. Seal No Seal
2. Cage Type P - Plastic Molded Cage
3. External Modification No External Modification
4. Radial Internal Play Cn Normal Internal Play
5. Precision Standard Precision
6. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
7. Split Inner ring / Outer ring Split inner ring

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 43000
2. Radial Dynamic Load Rating Cr (N) 61000
3. Basic static load rating, radial (C 0r) "43000.0000"
4. Limiting speed (n G) "13100.0000"
5. Reference speed (n ϑr) "7600.0000"
6. ECLASS number 23-05-08-03
7. ECLASS2 number 23-05-08-03
8. Medias description Four point contact bearings QJ3, main dimensions to DIN 628-4, separable, with split inner ring
