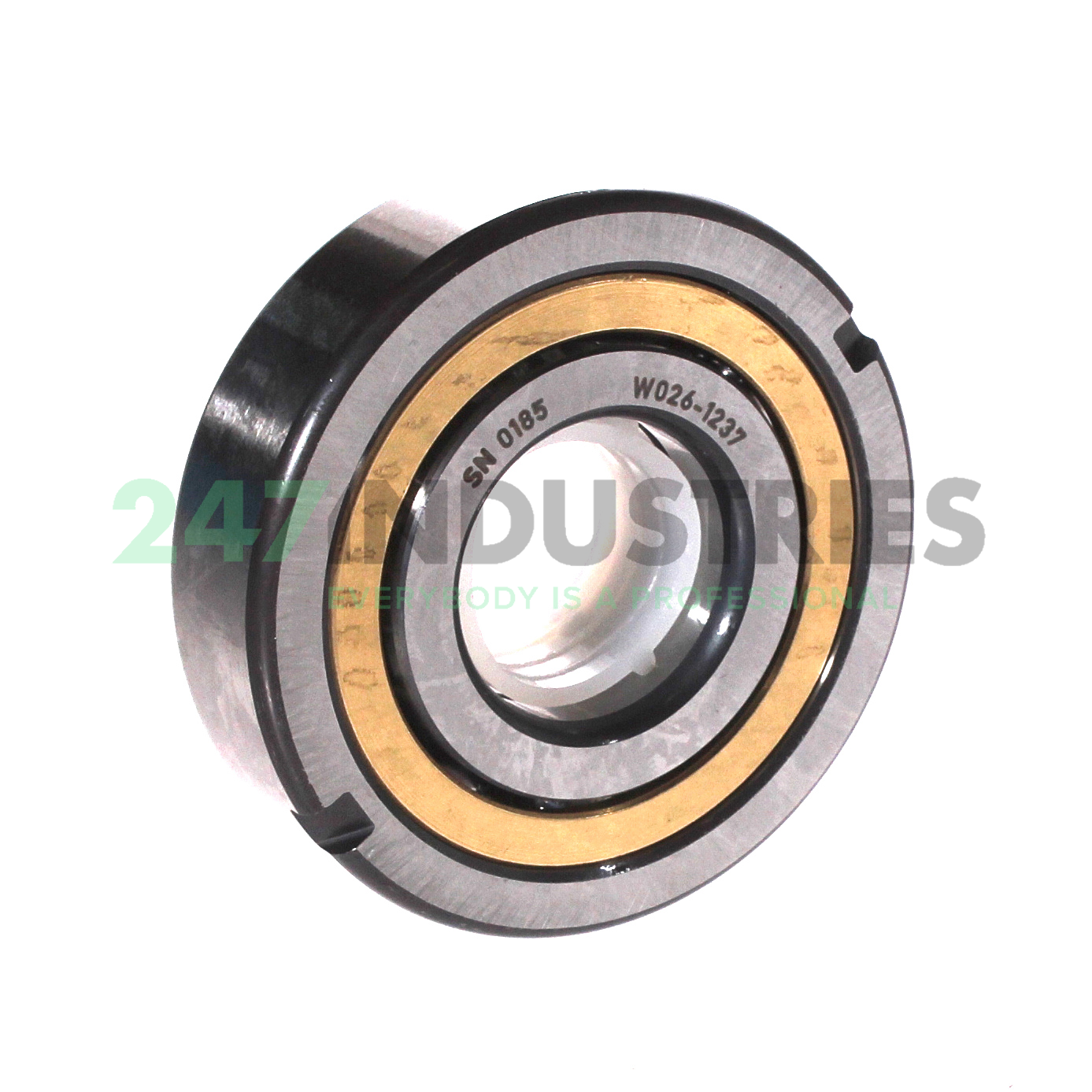

QJ305-XL-N2-MPA-P6-T42B FAG

All dimensions

1. Inner (d) MM 25,00
2. Outer (D) MM 62,00
3. Width (B) MM 17,00
4. Inner (d) Inch 0.9843
5. Outer (D) Inch 2.4409
6. Width (B) Inch 0.6693
7. Width (b) mm 17,00

Suffix description

1. XL X-Life
2. N2 Two Locating Slots (Notches) 180° Apart In One Outer Ring Side Face Or Housing Washer
3. MPA Window-Type Machined Brass Cage; Guidance By The Outer Ring (Housing)
4. P6 Dimensional And Running Accuracy To ISO Tolerance Class 6 (Better Than Normal)
5. T42B Four Point Bearings With Special Axial Clearance

Technical details

1. Availability 3 pcs
2. Brand FAG
3. Item number QJ305-XL-N2-MPA-P6-T42B FAG
4. Also known as 0675975304380
   QJ305-N2-MPA-P6-T42B

5. EAN 4012802570540
6. Category Four Point Contact Ball Bearing

Weight and Dimensions

1. Weight (kg) 0.28

Product Properties

1. Seal No Seal
2. Cage Type MA - Brass Cage, Centered on Outer Ring
3. External Modification N2 - 2 Locking Groove in Outer Ring
4. Radial Internal Play Cn Normal Internal Play
5. Precision P6 Precision (Higher than Standard)
6. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
7. Split Inner ring / Outer ring Split inner ring

Data from Schaeffler (medias)

1. Basic static load rating, radial (C 0r) "28500.0000"
2. Limiting speed (n G) "23300.0000"
3. Reference speed (n ϑr) "9000.0000"
