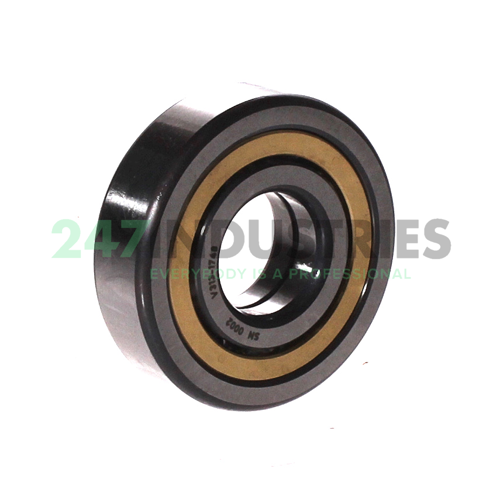

QJ304-XL-MPA-T42B FAG

All dimensions

1. Inner (d) MM 20
2. Outer (D) MM 52
3. Width (B) MM 15
4. Inner (d) Inch 0.7874
5. Outer (D) Inch 2.0472
6. Width (B) Inch 0.5906
7. Width (b) mm 15

Suffix description

1. XL X-Life
2. MPA Solid Brass Cage
3. T42B Four Point Bearings With Special Axial Clearance

Technical details

1. Availability 10 pcs
2. Brand FAG
3. Item number QJ304-XL-MPA-T42B FAG
4. Also known as 0192615944381
   QJ304-MPA-T42B

5. EAN 4012801987257
6. Category Four Point Contact Ball Bearing

Weight and Dimensions

1. Weight (kg) 0.18

Product Properties

1. Seal No Seal
2. Cage Type MA - Brass Cage, Centered on Outer Ring
3. External Modification No External Modification
4. Radial Internal Play Cn Normal Internal Play
5. Precision Special Axial Clearance
6. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C

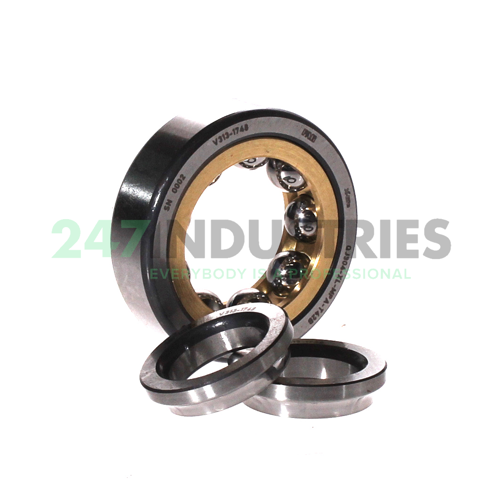

7. Split Inner ring / Outer ring Split inner ring

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 19600
2. Radial Dynamic Load Rating Cr (N) 31000
3. Limiting speed (n G) 28500
4. Reference speed (n ϑr) 10700
5. ECLASS number 23-05-08-03
6. ECLASS2 number 23-05-08-03
7. Medias description Four-point contact bearing QJ3..-XL-MPA, inner ring split
