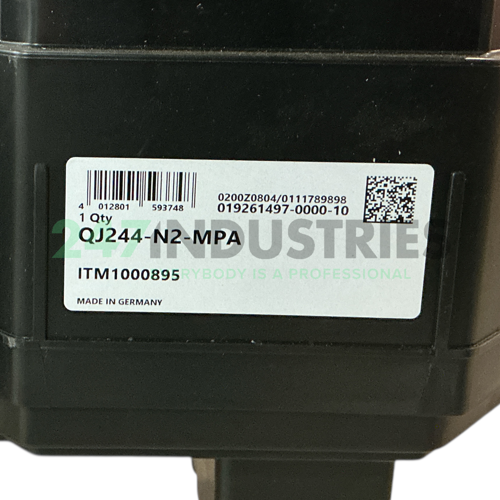

QJ244-N2-MPA FAG

All dimensions

1. Inner (d) MM 220
2. Outer (D) MM 400
3. Width (B) MM 66
4. Inner (d) Inch 8.6614
5. Outer (D) Inch 15.748
6. Width (B) Inch 2.5984
7. Width (b) mm 65

Suffix description

1. N2 Two Locating Slots (Notches) 180° Apart In One Outer Ring Side Face Or Housing Washer
2. MPA Window-Type Machined Brass Cage; Guidance By The Outer Ring (Housing)

Technical details

1. Availability 2 pcs
2. Brand FAG
3. Item number QJ244-N2-MPA FAG
4. Also known as 0192614970000

5. EAN 4012801593748
6. Category Four Point Contact Ball Bearing

Weight and Dimensions

1. Weight (kg) 37.3

Product Properties

1. Seal No Seal
2. Cage Type MA - Brass Cage, Centered on Outer Ring
3. External Modification N2 - 2 Locking Groove in Outer Ring
4. Radial Internal Play Cn Normal Internal Play
5. Precision Standard Precision
6. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
7. Split Inner ring / Outer ring Split inner ring

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 1120000
2. Radial Dynamic Load Rating Cr (N) 630000
3. Basic static load rating, radial (C 0r) "1120000.0000"
4. Limiting speed (n G) 2850
5. Reference speed (n ϑr) 1370
6. ECLASS number 23-05-08-03
7. ECLASS2 number 23-05-08-03
8. Medias description Four-point contact bearing QJ2..-N2-MPA, inner ring split
