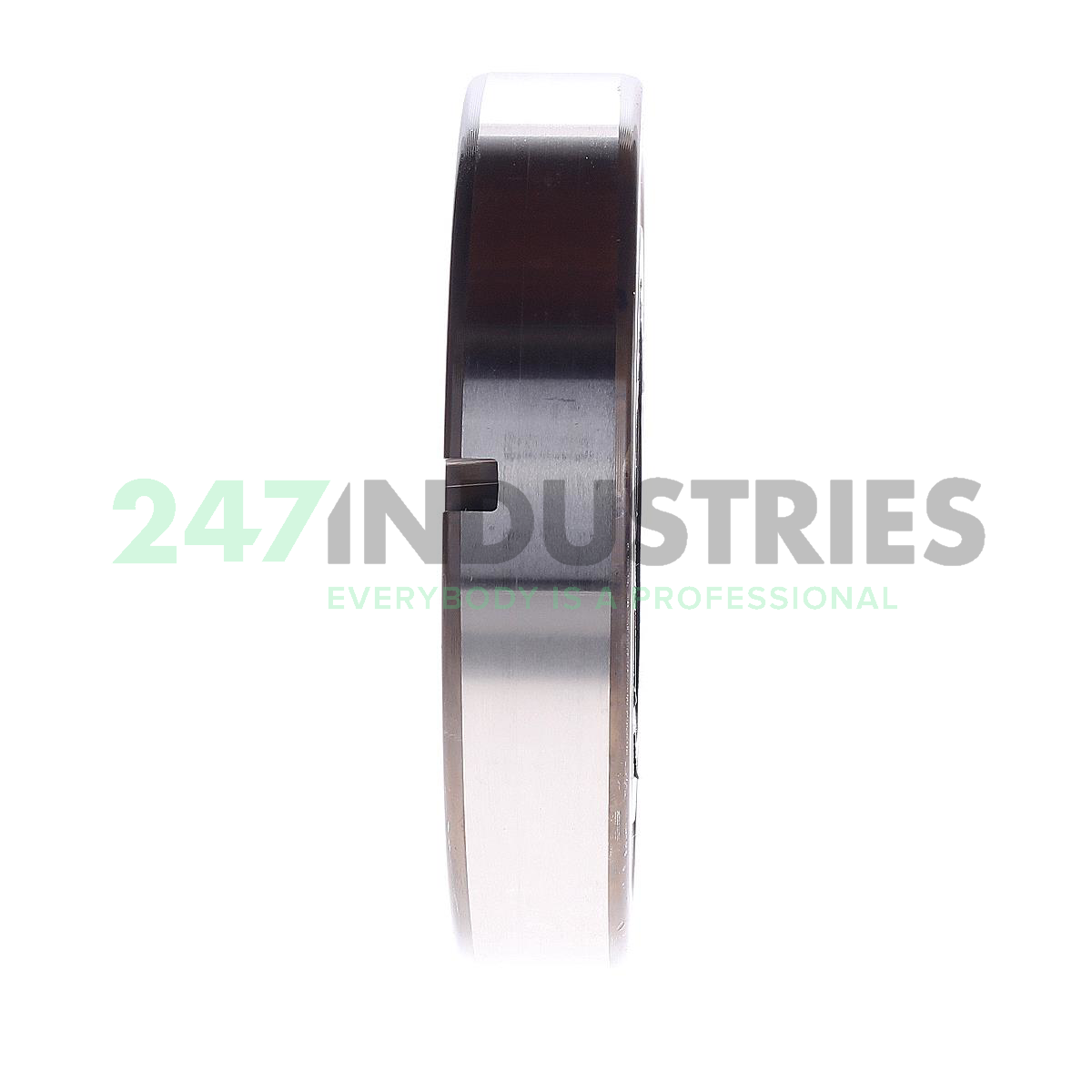

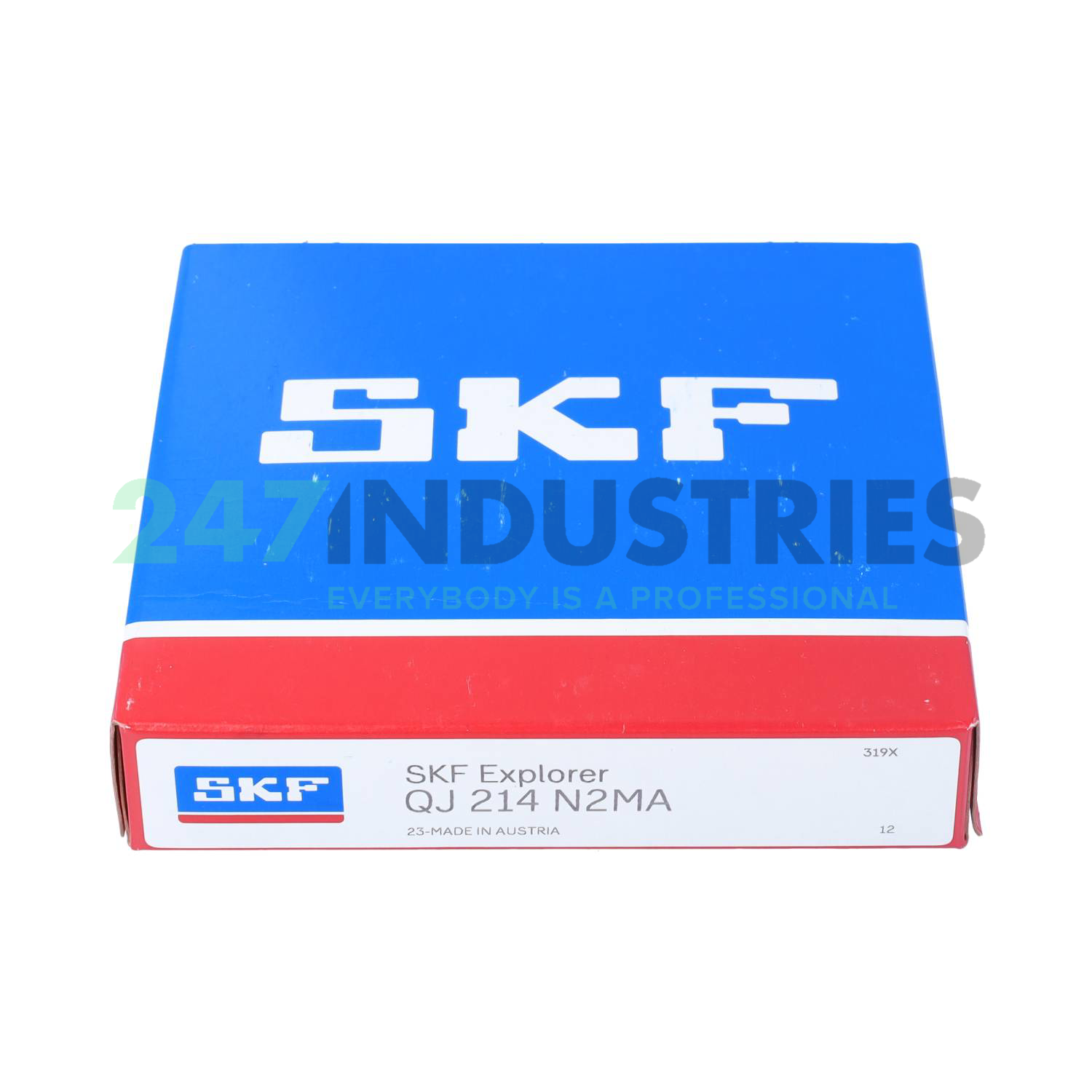

QJ214N2MA SKF

All dimensions

1. Inner (d) MM 70
2. Outer (D) MM 125
3. Width (B) MM 24
4. Inner (d) Inch 2.7559
5. Outer (D) Inch 4.9213
6. Width (B) Inch 0.9449

Suffix description

1. N2 Two Locating Slots (Notches), 180° Apart, In The Large Outer Ring Side Face
2. MA Machined Brass Cage Guidance By The Outer Ring

Technical details

1. Availability 10 pcs
2. Brand SKF
3. Item number QJ214N2MA SKF
4. EAN 7316571845869
5. Category Four Point Contact Ball Bearing

Weight and Dimensions

1. Weight (kg) 1.3

Product Properties

1. Seal No Seal
2. Cage Type MA - Brass Cage, Centered on Outer Ring
3. External Modification N2 - 2 Locking Groove in Outer Ring
4. Radial Internal Play Cn Normal Internal Play
5. Precision Standard Precision
6. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
7. Split Inner ring / Outer ring Split inner ring
