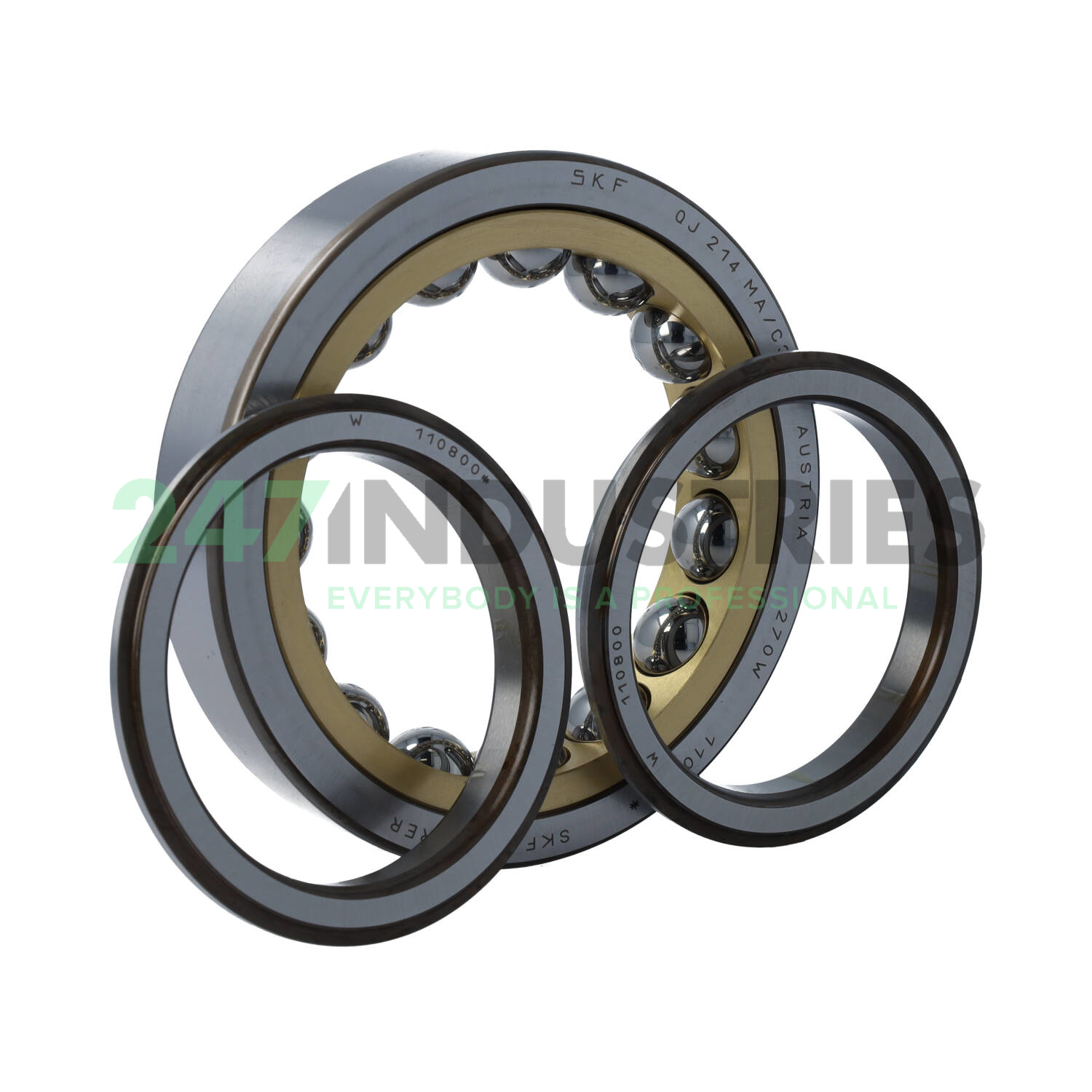

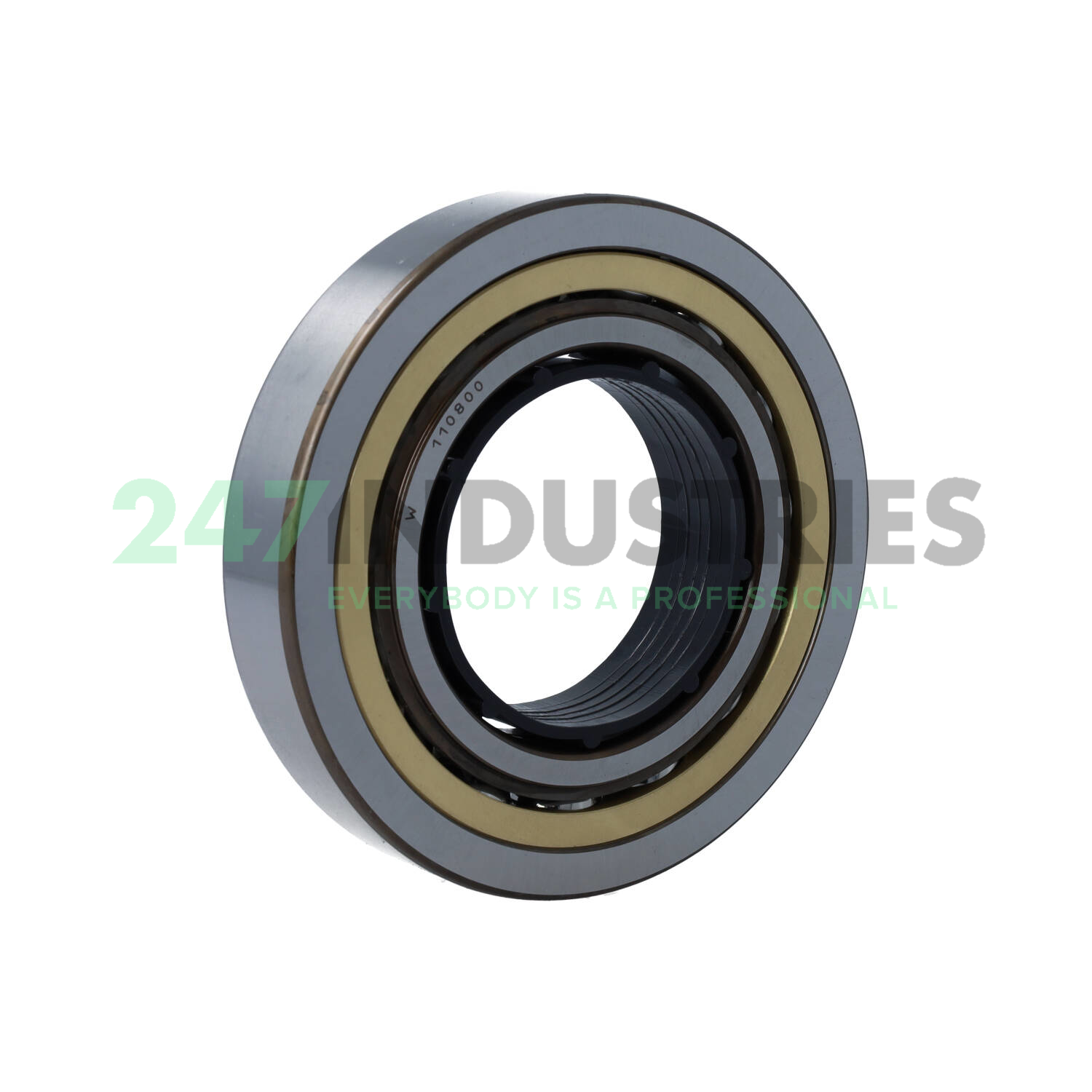

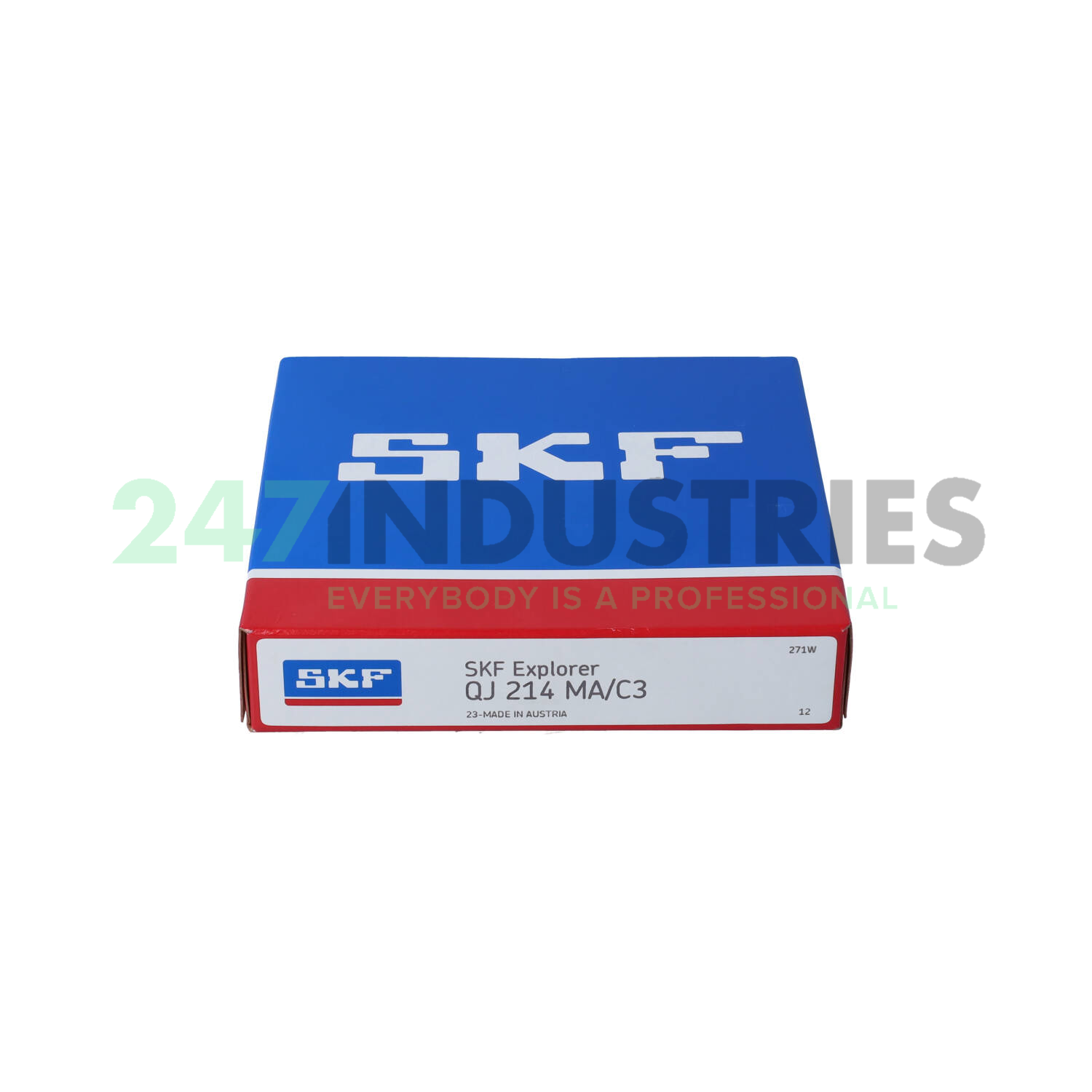

QJ214MA/C3 SKF

All dimensions

1. Inner (d) MM 70
2. Outer (D) MM 125
3. Width (B) MM 24
4. Inner (d) Inch 2.7559
5. Outer (D) Inch 4.9213
6. Width (B) Inch 0.9449

Suffix description

1. MA Machined Brass Cage, Outer Ring Guided
2. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 2 pcs
2. Brand SKF
3. Item number QJ214MA/C3 SKF
4. Also known as QJ214-MPA-C3

5. EAN 7316570503791
6. Category Four Point Contact Ball Bearing

Weight and Dimensions

1. Weight (kg) 1.3

Product Properties

1. Seal No Seal
2. Cage Type MA - Brass Cage, Centered on Outer Ring
3. External Modification No External Modification
4. Radial Internal Play C3 Internal Play (Higher than Cn)
5. Precision Standard Precision
6. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
7. Split Inner ring / Outer ring Split inner ring
