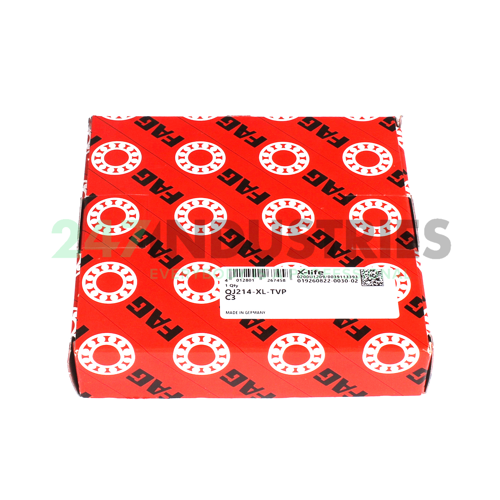

QJ214-XL-TVP-C3 FAG

All dimensions

1. Inner (d) MM 70
2. Outer (D) MM 125
3. Width (B) MM 24
4. Inner (d) Inch 2.7559
5. Outer (D) Inch 4.9213
6. Width (B) Inch 0.9449
7. Width (b) mm 24

Suffix description

1. XL X-Life
2. TVP Moulded Polyamide Window-Type Cage, Rolling Element Riding
3. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 10 pcs
2. Brand FAG
3. Item number QJ214-XL-TVP-C3 FAG
4. Also known as 0192608220030
   QJ214-TVP-C3

5. EAN 4012801267458
6. Category Four Point Contact Ball Bearing

Weight and Dimensions

1. Weight (kg) 1.3

Product Properties

1. Seal No Seal
2. Cage Type P - Plastic Molded Cage
3. External Modification No External Modification
4. Radial Internal Play C3 Internal Play (Higher than Cn)
5. Precision Standard Precision
6. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
7. Split Inner ring / Outer ring Split inner ring

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 122000
2. Radial Dynamic Load Rating Cr (N) 123000
3. Basic static load rating, radial (C 0r) "122000.0000"
4. Limiting speed (n G) 7100
5. Reference speed (n ϑr) 4600
6. ECLASS number 23-05-08-03
7. ECLASS2 number 23-05-08-03
8. Medias description Four point contact bearings QJ2, main dimensions to DIN 628-4, separable, with split inner ring
